3.5-inch SBC targets industrial applications with 9-36V wide-range DC-in

BCM Advanced Research ECM-3455J is an upcoming 3.5-inch SBC designed for industrial application with 9-36V wide range DC-in support, an Intel Celeron J3455 quad-core Apollo Lake processor, up to 8GB SO-DIMM memory, and 32GB on-board eMMC flash.

The single board computer also comes with HDMI and LVDS video out, dual Gigabit Ethernet, an M.2 socket a micro SIM socket for cellular connectivity, as well as up to eight USB interfaces, and a thick and large heatspreader for fanless operation.

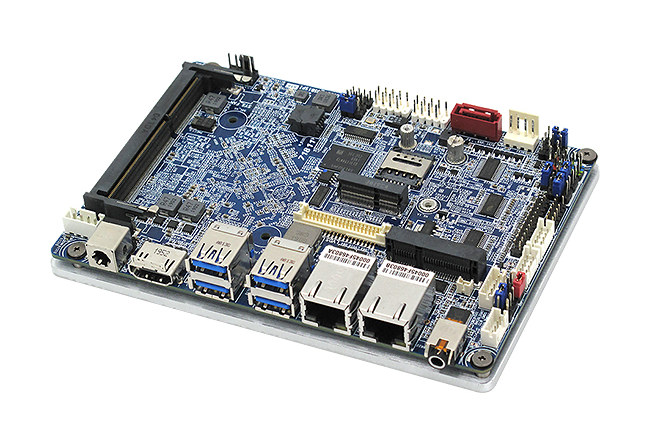

ECM-3455J 3.5-inch SBCECM-3455J specifications:

  • SoC – Intel Celeron J3455 quad-core Apollo Lake processor @ 1.5GHz / 2.3GHz (Burst Frequency) with Intel HD graphics 500; 10W TDP
  • System Memory – 1x 204-pin SO-DIMM DDR3L-1600MHz socket for up to 8GB RAM
  • Storage – 32GB eMMC flash (option: 64GB), 1x SATA III port, mSATA socket (See expansion), 64Mbit SPI flash for AMI UEFI BIOS
  • Video Output
    • 18/24-bit dual-channel LVDS through Chrontel CH7511B embedded DisplayPort to LVDS bridge + 1x backlight locking type header
    • HDMI
  • Audio – 3.5nmm Line-out Realtek ALC255 audio codec; 2 Watts per channel amplifier
  • Networking – Dual Gigabit Ethernet RJ45 ports via 2x Realtek RTL8111H PCIe GbE PHYs
  • USB – 4x USB 3.1 Gen 1 Type-A ports, 2x internal USB 2.0 headers (4 interfaces in total)
  • Serial
    • 1x RS-232/422/485 header with voltage selection
    • 1x RS-232 header with voltage selection
  • Expansion
    • 1x M.2 Type E Key 2230 socket
    • 1x full-size mini PCIe socket  with mSATA support & μSIM
    • 1x I²C header, 1x SPI header, 1x SMBus header
    • 8-bit GPIO header
  • Security – Infineon SLB9665TT-2.0 TPM 2.0
  • Misc – Watchdog Timer; H/W Status Monitor with temperature, voltage, fan control and auto throttling control; front panel header, CMOS battery, buzzer, 4-pin chassis fan header
  • Power Supply – 9-36V wide range DC-in via power barrel jack or 4-pin header
  • Dimensions – 145 x 101mm (3.5-inch SBC)
  • Weight – Around 200 grams
  • Temperature Range – Operating: 0°C ~ 60°C; storage: -20°C ~ 80°C
  • Humidity – 5% ~ 90% relative humidity, non-condensing
  • Certifications – CE, FCC Class B, RoHS Compliant

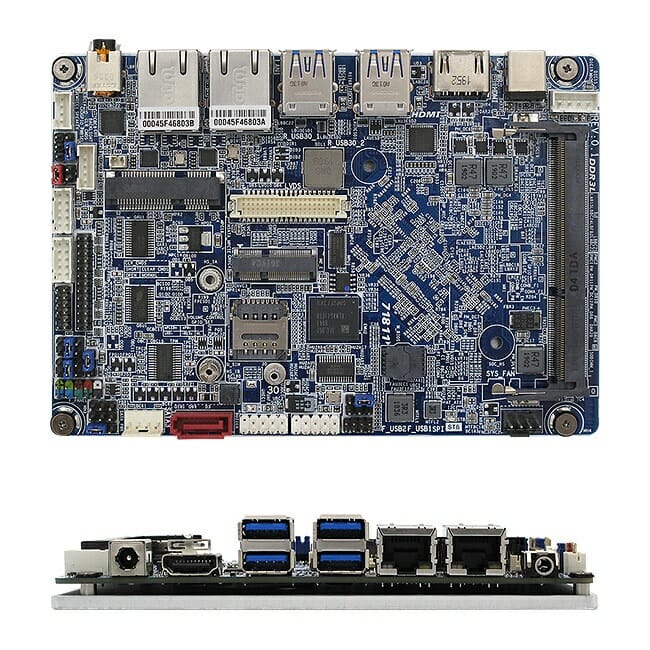

industrial sbc 9-36V wide range DC-inThe company provides support for Windows 10 IoT and Linux for the board, as well as the less usual – for an x86 board – Android operating system.

BCM notes that while most of the small form factor industrial motherboards with a wide range DC power design support 12V to 24V, the ECM-3455J 3.5-inch SBC supports a wider 9V to 36V DC input voltage, which makes it suitable for a wider range of embedded applications including industrial control, human-machine interface (HMI), digital signage, Point-of-Sale terminal, retail kiosk, medical and healthcare equipment, and so on.

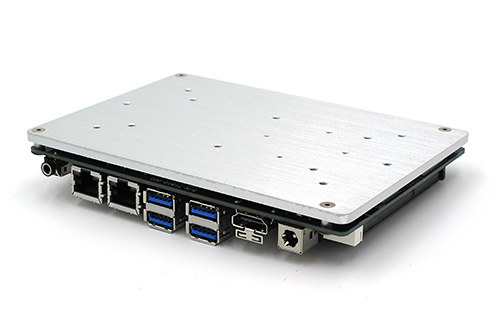

heatspreader for sbcBCM ECM-3455J 3.5-inch single board computer is shown as “coming soon” on the product page, so it’s not clear when it will become available, and pricing for this type of B2B board is often not made public. As a side note, BCM Advanced Research used to be (and probably still is) a subsidiary of Avalue, which we covered in the past with several other “ECM” boards.

Via Embedded Computing Design

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
4 Comments
oldest
newest
David Willmore
David Willmore
4 months ago

I’m not in the market for SBCs like this, so I won’t speak to the features of it in general, but I do like the power input. That’s a nice wide range (though 9V is a little high) and the ability to use a barrel connector (way more reliable than any USB connector) or a 4 pin connector. They don’t say what kind of connector specifically, but most of the ones on the board look like they have some inherent latching abilty–which is a huge feature in any environment that will have either vibration or temperature cycling. Please, more power… Read more »

itchy n scratchy
itchy n scratchy
4 months ago

Actually in most industries I worked for so far (not representative of course) most if not all external connectors would fail… No latching, and ethernet’s latching doesn’t work in the presence of vibrations.

However not everyone has those issues in their own industrial environment…

riaqn
riaqn
4 months ago

Since I’m here anyway – any cheap SBC with 4 sata ports? Trying to build NAS here.
