Olimex STM32MP1 SoM and evaluation board support Linux 5.10

Olimex has just announced the availability of an STMicro STM32MP1 Cortex-A7/M4 powered system-on-module (SoM) and an evaluator board with respectively STMP15X-SOM available in extended and industrial temperature variants, as well as STMP1(A13)-EVB evaluation board that works with the new STM32MP1 module, as well as earlier A13-SOM Allwinner A13 based system-on-module.

Beyond the hardware, the company told us their upcoming STMP1-OLinuXino-LIME2 SBC could support mainline Linux in February, and the company prepared some Linux 5.10 based Debian Buster and Ubuntu Focal images which are now also available for the STMP15X-SOM module.

STMP15X-SOM system-on-module

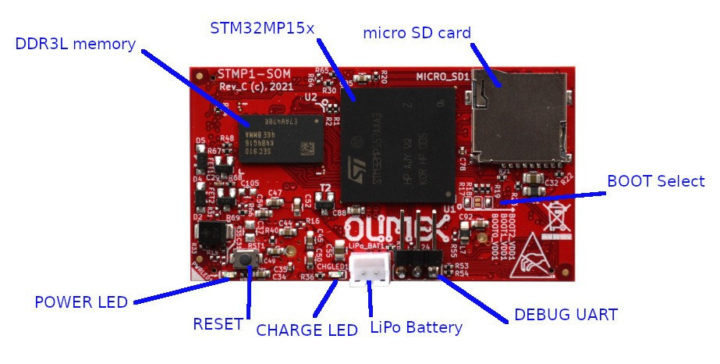

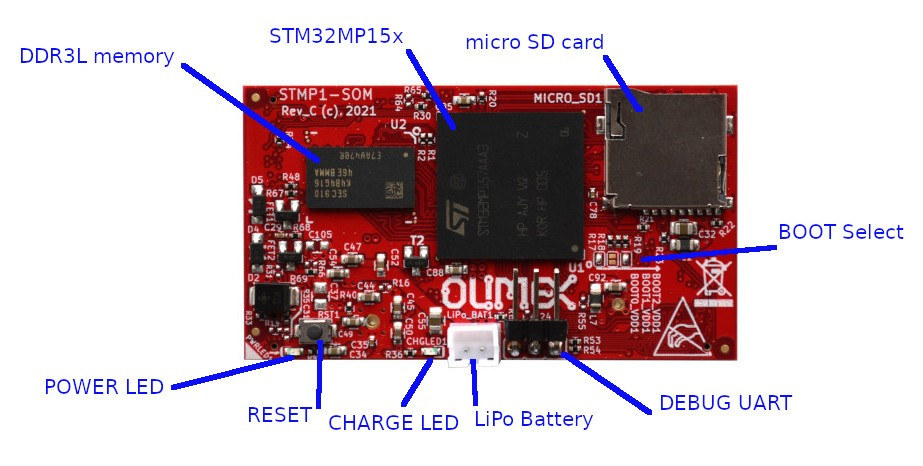

Olimex STMP15X-SOMSpecifications:

  • SoC – STMicro STM32MP151/153/157 dual-core Cortex-A7 @ 650 to 800MHz and Arn Cortex-M4 real-time core @ 209 MHz
  • System Memory – 256 or 512 MB DDR3L
  • Storage – MicroSD card socket
  • Audio – On-module audio codec
  • Board-to-board connectors
    • GPIO-1 40-pin connector with 39 GPIOs, 3x UARTs, 1x QuadSPI, 2x I2C, 2x eMMC
    • GPIO-2 10-pin connector with USB host, USB OTG, Audio mic, Audio HP, ADC
    • GPIO-3 10-pin connector with USB-OTG, SPI
    • RGB LCD 40-pin connector compatible with LCD-OLinuXino displays
  • Misc – RESET button, power & charge LED’s, boot select
  • Debugging – 3-pin UART header for serial console
  • Power supply
    • 5V DC input via header,  or 2-pin header for battery
    • AXP209 Power Management Unit (PMU) and LiPo battery charger
    • LiPo battery acts like UPS and keeps SoC, memory, and PMU powered during 5V power failure protecting the SD card and allowing safe power off if needed.
  • Temperature Range – Commericla grade: 0 to +70°C; industrial grade: -40 to +85°C; extended: -20 to +85°C

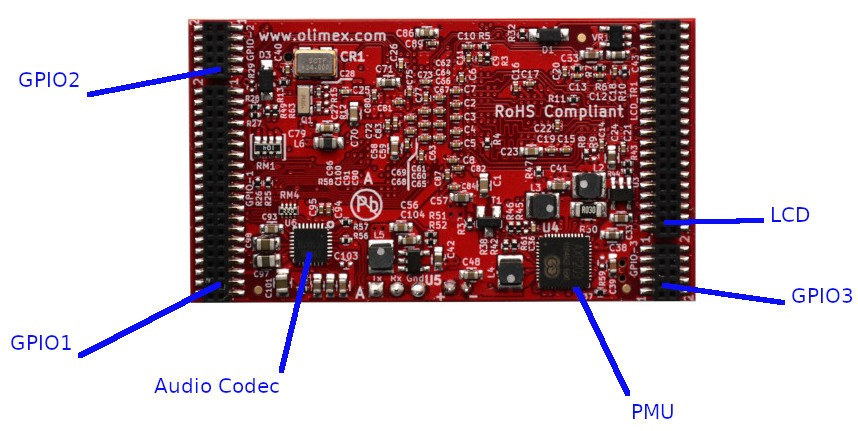

STM32MP1 system-on-module

Five models are available:

  • STMP151-SOM-256 commercial-grade SoM with STM32MP151 @ 650MHz and 256MB of DDR3L RAM for 20 Euros
  • STMP151-SOM-512-IND industrial-grade SoM with STM32MP151 @ 650MHz and 512MB of DDR3L RAM for 25 Euros.
  • STMP153-SOM-512-IND industrial grade SoM with STM32MP153 @ 650MHz and 512MB of DDR3L RAM for 28 Euros
  • STMP157-SOM-512-IND industrial-grade SoM with STM32MP157 @ 650MHz and 512MB of DDR3L RAM for 30 Euros.
  • STMP153-SOM-512-EXT extended temperature grade SoM with STM32MP157 @ 800 MHz and 512MB of DDR3L RAM for 30 Euros

You can purchase the module and find documentation including the PDF schematics and software resources on the product page.

STMP1(A13)-EVB evaluation board

Since it’s not exactly convenient to use a system-on-module without a carrier board, Olimex also released the STMP1(A13)-EVB evaluation board compatible with both A13-SOM and STM15x-SOM modules.

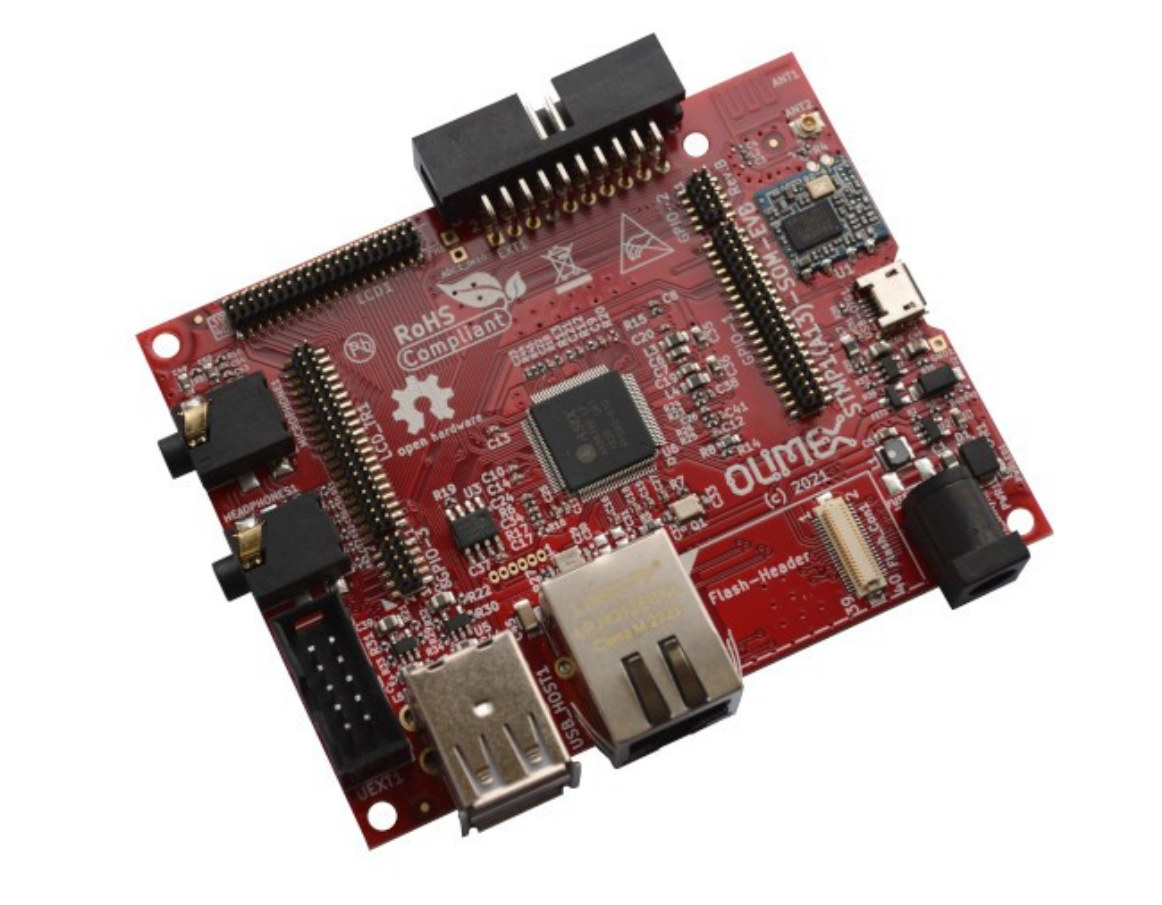

Olimex STM32MP157 EVB

STMP1(A13)-EVB board specifications:

  • Compatible modules – STMP15x-SOM or A13-SOM via 1.27 mm pitch connectors
  • Storage – Flash module connector for SPI, eMMC, or NAND flash
  • Display – 40-pin 1.27 mm pitch connector for LCD-OLinuXino display
  • Audio – 3.5mm microphone jack, 3.5mm headphone jack
  • Connectivity
    • 10/100M Ethernet RJ45 connector
    • WiFi & Bluetooth module with PCB antenna and option for external antenna
  • Expansion – UEXT connector, GPIO connector
  • USB – 2x USB 2.0 host ports, 1x micro USB 2.0 OTG port
  • Power Supply – 5V DC via power barrel jack

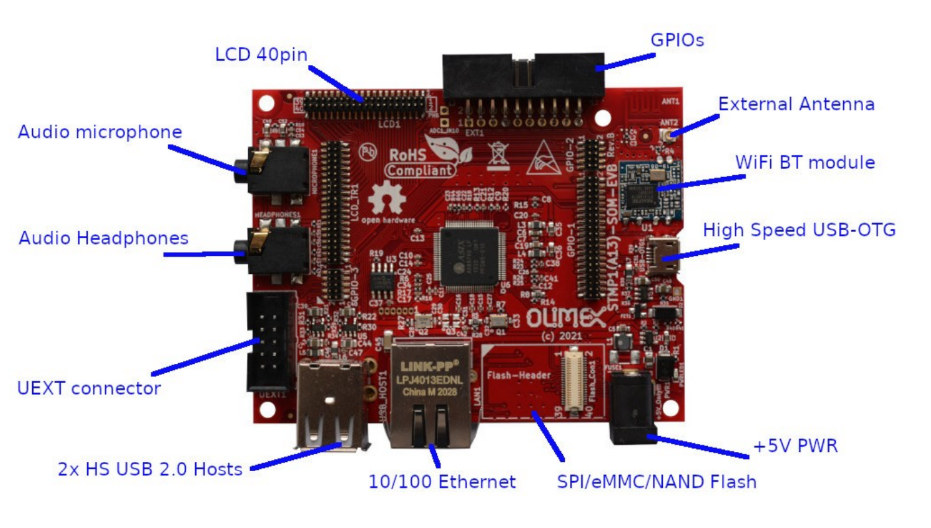

STM32MP157 evaluation board specifications

Olimex STMP1(A13)-EVB can be purchased for 18 Euros without module on Olimex shop where you’ll also find the KiCAD and PDF schematics, and a user manual.
