ClusBerry Rack houses up to four hot-swappable Raspberry Pi CM4 modules

TECHBASE ClusBerry Rack supports up to four Raspberry Pi CM4 based modules which can be added and removed on the fly thanks to a lockable mechanism that reminds me of hot-swappable drives found in NAS.

Using the same ClusBerry I/O mainboards as found in the earlier ClusBerry 9500-CM4 and ClusBerry-2M industrial systems, each Raspberry Pi Compute Module 4 inside the ClusBerry Rack offer one Gigabit Ethernet port, one USB host, one micro USB service port, and an RS-232/485 serial port.

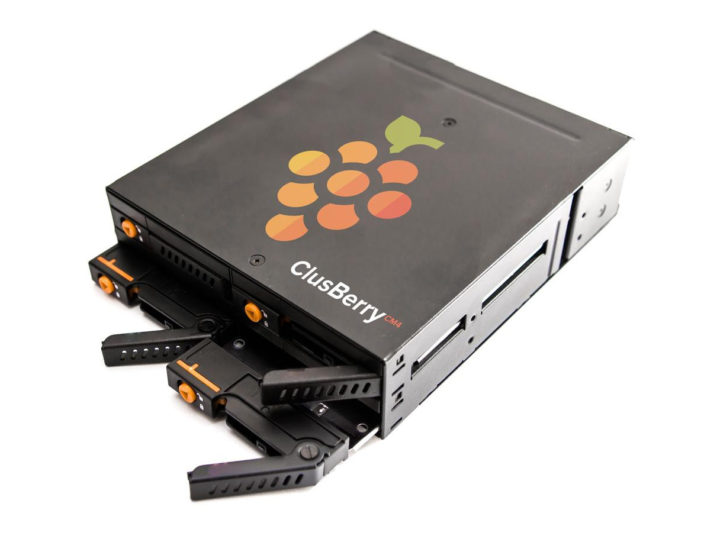

Clusberry RackTECHBASE is not the best company when it comes to describing its products, possibly because those are customizable, and in this case, they don’t show the other side of the enclosure with all ports…

But based on the PDF we’ve received, you should be able to create a system with four modules offering the following features each:

  • Optional video output – HDMI
  • Networking – 1x Gigabit Ethernet port (option for 2x)
  • USB – USB 2.0 host (note: that’s probably USB 3.0 as VL805 PCIe to USB 3.0 chip is shown on the block diagram), and a micro USB service port
  • Serial – 6-pin RS-232/485 serial port
  • Security – Optional TPM 2.0
  • Misc – User LEDs and button
  • 5V power input or optional 30W PoE

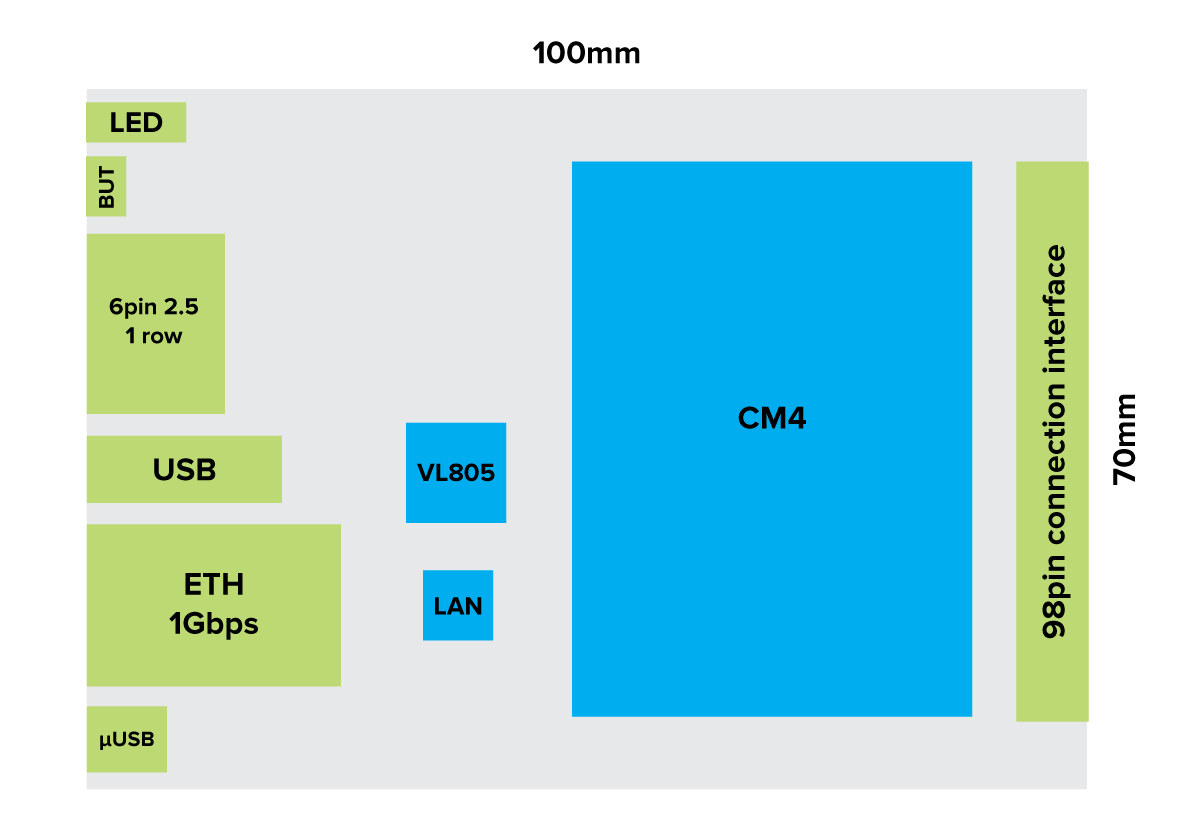

Clusberry CM4 Module block diagramThe full system, i.e. not at the module level, can be extended with M.2 NVMe SSD support and two standard mini PCIe socket support for wireless modules that include 4G LTE and 5G modem, NB-IoT, LoRa, ZigBee, Z-Wave, Sigfox, Wireless M-Bus, secondary Wi-Fi/Bluetooth interface or Wi-Fi Hi-Power, and other custom wireless interfaces.

TECHBASE recommends software cluster management with Docker and K3s Lightweight Kubernetes. Each module can be configured for specific tasks such as a standard I/O gateway, a wireless modem, a router, an AI gateway with Google Coral Edge TPU module, etc…

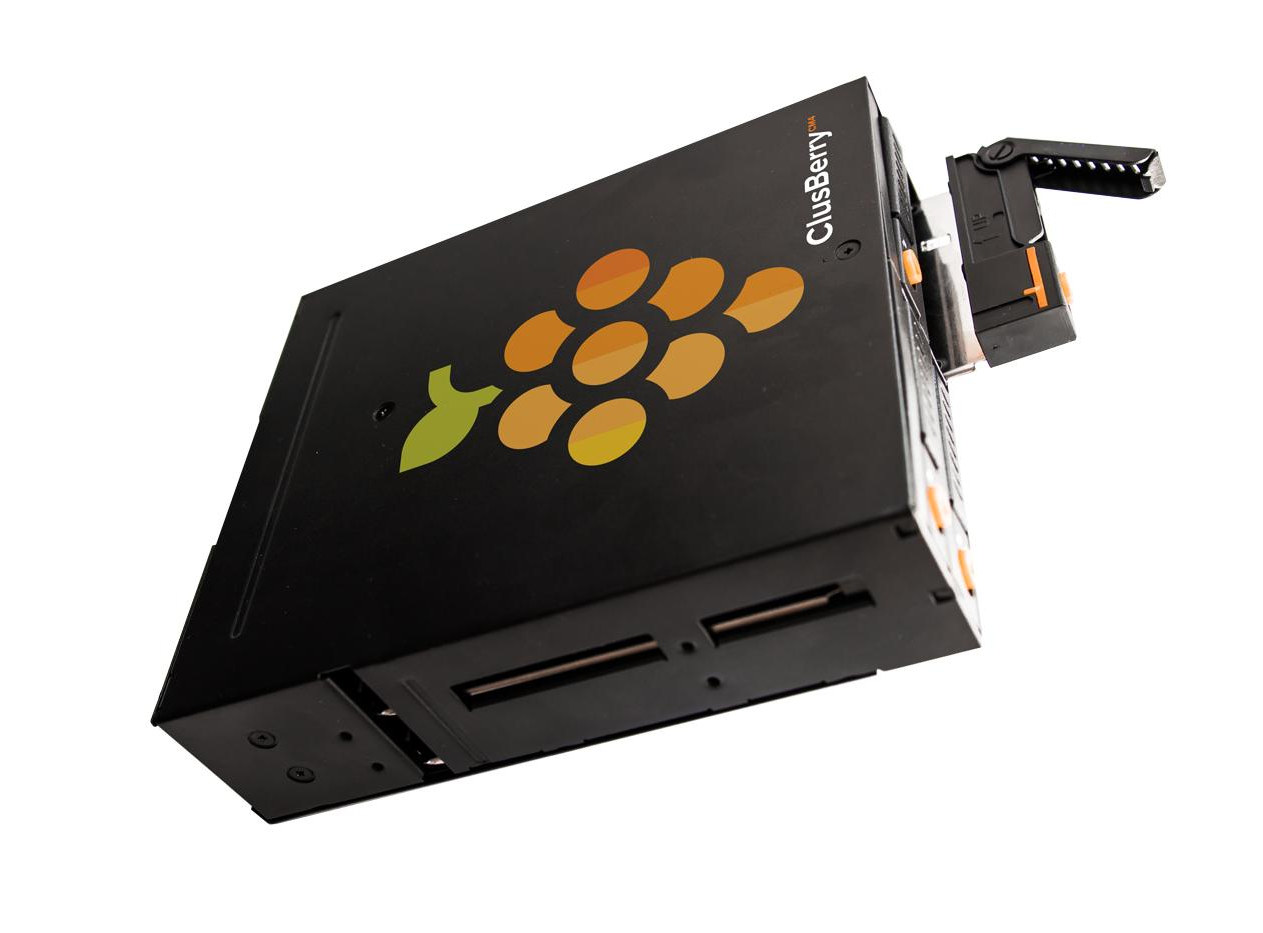

IoT enclosure four raspberry pi cm4 modulesThe company said “delivery time for various configurations of
ClusBerry Rack casing including ExCard modules and modems can be approximately 2 months, depending on the CM4 supply on the market and chosen expansion cards”, and they also announced the availability of the basic version of  ClusBerry-2M within two to four weeks.  There’s no specific product page about the new Cluster Rack, but eventually, more details may surface on TECHBASE website.

As a side note, I’ve heard from several sources that the Raspberry Pi CM4 is in short supply, and so hopefully (mostly) electrically compatible modules like SOQuartz or Radxa ROCK3 CM will be able to fill the void. Before you ask, I do not have details about ROCK3 CM yet, just the name…

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
6 Comments
oldest
newest
Theguyuk
Theguyuk
1 month ago

Here are details of Rock3 / CM3

https://wiki.radxa.com/Rock3/CM3

Hope it helps

roel
roel
1 month ago
Theguyuk
Theguyuk
1 month ago

Just how much heat, will 16 toasters marketed as RPI CM4 , generate in a 1U case ?

Ignas Kiela
Ignas Kiela
1 month ago

Not enough to be too much, 1kW 1U systems are quite common in server space, you just need enough fans for them.

tkaiser
tkaiser
1 month ago

Better ignore this constant stupid RPi bashing. A CM4 with upper ‘server load’ will consume 5-6W so in case of the Uptime Labs Blade thingy the choice of the NVMe SSDs might even be more important than the ~100W max. generated by CPU utilisation. It then depends on the SSD in question, I/O access patterns and ASPM/APST driver support and parametrisation (PCIe Active State Power Management and NVMe Autonomous Power State Transition).
