Vecow launches NVIDIA Jetson AGX Orin-based EAC-5000 Series Edge AI computing system

Vecow EAC-5000 is a rugged AI computing system powered by NVIDIA’s Jetson AGX Orin 32GB or 64GB system-on-module designed for advanced edge AI applications such as in-vehicle computing, robotic control, machine vision, intelligent video analytics, and mobile robots.

The embedded computer delivers up to 275 TOPS of AI performance thanks to the NVIDIA module, supports up to eight GMSL2 cameras, various wireless connectivity options with 6 antennas, 9V to 50V wide range DC power input, and operates in the -20°C to 70°C temperature range.

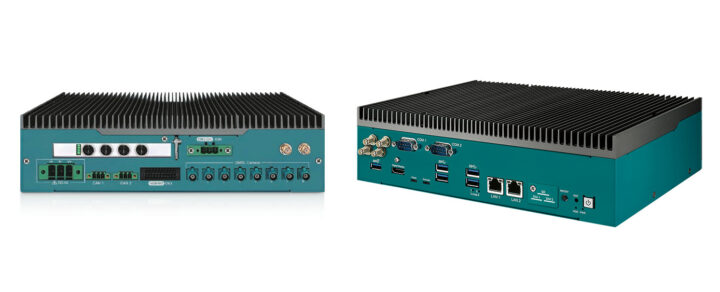

Vecow EAC-5000 Jetson AGX Orin embedded computer

Vecow EAC-5000 specifications:

  • System-on-Module
    • EAC-5000-R32NVIDIA Jetson AGX Orin 32GB with
      • CPU – 8-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 2MB L2 + 4MB L3 cache
      • GPU / AI accelerators
        • NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores @ 1 GHz
        • DL Accelerator – 2x NVDLA v2.0 @ up to 1.4 GHz
        • Vision Accelerator – PVA v2.0 (Programmable Vision Accelerator)
        • AI Performance – 200 TOPS (INT8) @ 50W / 100 TOPS for “dense” inteference
      • Video Encode – 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265)
      • Video Decode – 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265)
      • System Memory – 32GB 256-bit LPDDR5 @ 204.8 GB/s
      • Storage – 64GB eMMC 5.1 flash
    • EAC-5000-R64 – NVIDIA Jetson AGX Orin 64GB with
      • CPU – 12-core Arm Cortex-A78AE v8.2 64-bit processor @ 2.2 GHz with 3MB L2 + 6MB L3 cache
      • GPU / AI accelerators
        • NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 Tensor Cores @ 1 GHz
        • DL Accelerator – 2x NVDLA v2.0 @ up to 1.6 GHz
        • Vision Accelerator – PVA v2.0 (Programmable Vision Accelerator)
        • AI Performance – 275 TOPS (INT8) @ 50W / 100 TOPS for “dense” inteference
      • Video Encode – 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
      • Video Decode – 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60| 22x 1080p30 (H.265)
      • System Memory – 64GB 256-bit LPDDR5 @ 204.8 GB/s
      • Storage – 64GB eMMC 5.1 flash
  • Storage – 2x M.2 Key M 2280 socket, MicroSD card socket
  • Video Output – 1x Digital Display interface (DDI) up to 8K60
  • Camera I/F – 8x Fakra-Z connectors for GMSL 1/2 automotive cameras
  • Connectivity
    • 2x Gigabit Ethernet ports (RJ45 or optional X-coded M12 connector)
    • Optional WiFi, 5G. 4G LTE, etc wireless connectivity through M.2 sockets
    • 2x SIM Card Socket
    • 6x antennas for WiFi, 5G, 4G LTE, UMTS, GPRS
  • USB – 1x USB 3.1 Gen 2, 4x USB 3.1
  • Serial – 2x COM RS-232/422/485, 2x isolated CAN Bus with CAN FD support
  • Expansion
    • PCIe – 1x PCIe Gen4 x8 slot
    • 1x M.2 Key B Socket (3042/3052)
    • 1x M.2 Key E Socket (2230)
    • 16x Isolated DIO (8x DI, 8x DO)
  • Debugging/Programming – 1x Micro USB console debug port, 1x Micro USB OS flash port
  • Misc
    • Power, Force Recovery, and Reset Buttons
    • Power, SSD, 2x user programmable LEDs
  • Power Supply
    • Input DC – 9V to 50V via 3-pin terminal block
    • Ignition Control – 16-mode Software Ignition Control
    • Remote Switch – 3-pin Remote Switch Terminal Block
    • OOB Management – Remote Power On/Off and Remote Reset Control (Optional)
  • Dimensions – 260 x 182 x 69 mm
  • Weight – 3.8 kg
  • Temperature Range
    • 30W power mode: -20°C to 70°C
    • Max power mode: -20°C to 55°C
    • Storage – -40°C to 85°C
  • Humidity – 5% to 95% Humidity, non-condensing; 95% @ 70°C relative humidity
  • Shock – Operating, MIL-STD-810G, Method 516.7, Procedure I
  • Vibration – Operating, MIL-STD-810G, Method 514.7, Procedure I, Category 4
  • EMC – CE, FCC, EN50155, EN50121-3-2

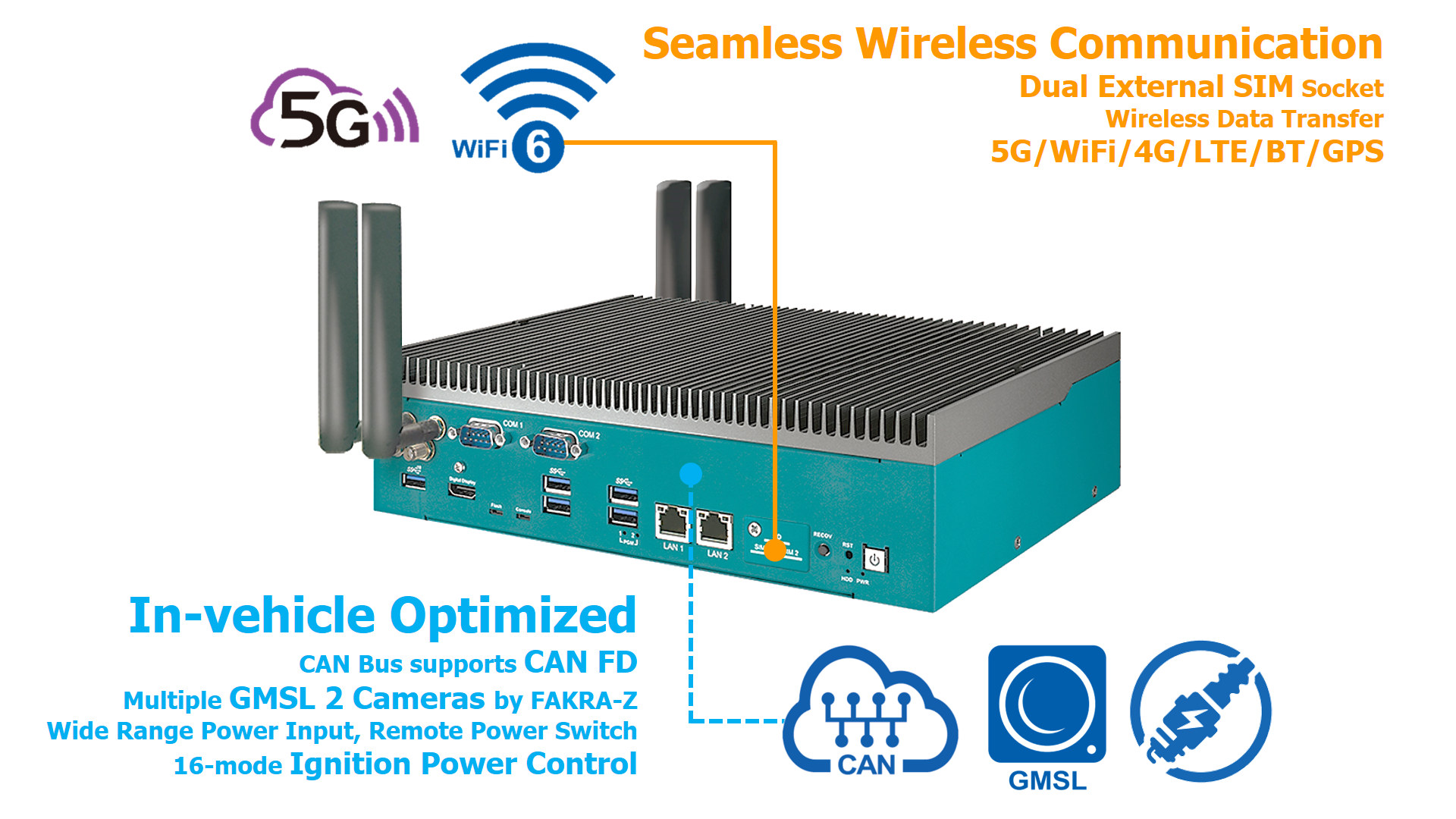

Jetson AGX Orin embedded computer GMSL 2 cameras

Vecow EAC-500 can be walled mount with a mounting bracket, and the company offers an optional DIN Rail mount as well. It runs the usual Ubuntu 20.04 OS with the JetPack SDK. The system alo supports Allxon device monitoring and management services for out-of-band management and disaster-recovery services at remote locations 24/7.

The EAC-5000 is said to provide up to 8 times the AI performance than solutions based on the earlier NVIDIA Jetson AGX Xavier module, for faster and/or more energy-efficient performance for machine vision and automotive applications such as autonomous vehicles.

Vecow did not provide availability information, but we do know the EAC-5000 system with an NVIDIA Jetson AGX Orin module was showcased at InnoTrans 2022 (Sep 20 – 23) and VISION 2022 (October 4 – 7) and is currently demonstrated at the Vision Show 2022 (October 11-13). Additional information may be found on the product page.
