Meet Intel Processor and Core-i3 N-series “Alder Lake N-series” processors

Pentium and Celeron brands are officially dead with Intel introducing the Alder Lake-N family comprised of “Intel Processor” and Core-i3 N-series processors based on the Gracemont “Efficiency” cores found in Alder Lake hybrid processors.

Some of the details about the Intel Processor N100 and N200 processors were leaked last fall, followed by the Core i3-N300 and Core i3-N305, but at least it is now official, and we have more details so let’s dig into it.

Intel Alder Lake N-series Processors

Alder Lake N-series key features and specifications:

  • CPU – Up to 8x Gracemont Efficient cores for Core i3 N-series processor, and up to 4x with Intel Processor processor
  • GPU – Intel UHD graphics with AV1 decode support
  • Memory I/F – LPDDR5-4800, DDR4, DDR5
  • Storage I/F – eMMC/UFS 2.1 flash, 2x SATA 3.0
  • Video Output
    • eDP 1.4b / MIPI DSI 1.3
    • DisplayPort 1.4
    • HDMI 2.0b
    • Up to 3x independent displays
  • Camera I/F – MIPI CSI
  • Networking – Integrated Intel Wi-Fi 6E & Bluetooth 5.2
  • USB – 8x USB 2.0, 4x USB 3.2 Gen 2×1
  • PCIe – 9x lanes PCIe Gen3
  • Other I/Os – eSPI, SPI
  • Package – 35 x 24mm, BGA Type3
  • Manufacturing Process – Intel 7 process

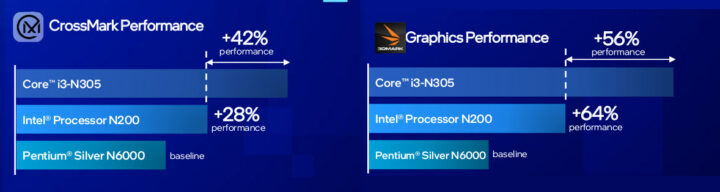

Alder Lake N-Series CPU & GPU performance

While the Alder Lane N-Series processors do not make use of the higher-end Performance cores found in Alder Lake hybrid processors, they do offer a significant performance uplift compared to the Jasper Lake family with up to 28% better application performance on Intel Processor N200 compared to the Pentium Silver N6000, and the Intel Core i3 N-Series processor adds 42% performance on top. Graphics performance, measured with 3Dmark, has also significantly improved with up to 64% better graphics performance on the Intel Processor N200 processor, and an additional 56% with the Intel Core i3 N-series processor.

Multimedia improvements include support for 10-bit HEVC & VP9 Encode/Decode, AV1 decode, and Intel claims a 10-hour battery life for HD video playback. The highlights and differences for the four new SKUs can be found in the table below.

FeaturesIntel Core i3-N305 Intel Core i3-N300Intel Processor N200 Intel Processor N100
Cores8844
Cache6MB6MB6MB6MB
Turbo frequencyUp to 3.8 GHzUp to 3.8 GHzUp to 3.7 GHzUp to 3.4 GHz
Graphics32EU32EU32EU24EU
GPU frequencyUp to 1.25 GHzUp to 1.25 GHzUp to 750 MHzUp to 750 MHz
LPDDR5/DDR5/DDR4 frequency4800/4800/32004800/4800/32004800/4800/32004800/4800/3200
TDP15W7W6W6W

The Alder Lake N-Series processors are mostly designed for education and consumer products that required a lower price point. Intel has been collaborating with Acer, Dell, HP, Lenovo, and Asus on more than 50 designs that are expected to launch in 2023 with ChromeOS or Windows. Further details may be found on the product page and CES 2023 announcement. [Update: Alder Lake N-Series processors are now listed on Ark, and there are embedded SKUs namely Intel Processor N50, Processor N97, Atom x7213E, Atom x7211E, and Atom x7425. So the Pentium and Celeron brands may be dead, but the Atom brand is apparently here to stay…]

Share this:

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
16 Comments
oldest
newest
Anonymous
Anonymous
26 days ago

i3-N350 -> i3-N305

I didn’t realize the GPU performance would be that much higher. Part of it is from that 1.25 GHz turbo, 39% higher than the Pentium Silver N6005, 67% higher than the N200.

They are downplaying the CPU performance. It could be as much as triple Jasper Lake’s multi-threaded performance with good cooling. Gracemont adds support for AVX, AVX2, FMA3, and AVX-VNNI instructions.

tkaiser
tkaiser
26 days ago

> CPU performance (…) could be as much as triple Jasper Lake’s multi-threaded performance

The Intel graph suggests even more than tripled with the i3-N305’s ‘per core’ CPU performance being shown at +180% compared to N6000 (having half the cores). I doubt that since having added the ability to benchmark different cores individually a while ago with @Linuxium’s help. Gracemont vs. Tremont at same clock is below 120% difference per core.

We should treat these graphs as what they are: marketing departments at work.

FreekiedeCakie
FreekiedeCakie
26 days ago

https://bapco.com/wp-content/uploads/2022/01/crossmark_white_paper_v1.2.pdf

They don’t explicitly mention it, but some of the benchmarks in Crossmark most likely benefit a lot from AVX2, AVX-VNNI which is where I assume most of the gains to come from.

RK
RK
26 days ago

Is it normal to have recommended customer prices for mobile socs? cause to me it suggests sockets in laptops…

Jarek
Jarek
26 days ago
  RK

Quite normal, I’m 99% those will be BGA, especially since they will be in cheaper devices.

tkaiser
tkaiser
26 days ago
  RK

Was already the case with at least Gemini Lake SoCs. But the numbers were (and most probably still are) complete BS since ODROID H2 based on Celeron J4105 had a retail price close to Intel’s ‘recommended’ SoC list price.

Willy
26 days ago
  RK

Recommended prices are just a way for a vendor to make all their resellers agree on a reasonable price for a given set of features, that allows them to preserve some margins until one of them breaks the deal. Usually they last until a next generation appears, after which resellers try hard to get rid of all their previous stock at any price.

William Barath
William Barath
26 days ago

I was shocked when Intel sullied the Pentium/Celeron brands by using them to market Atom cores. But I am gob-smacked by them sullying Intel Core™ with Atom cores. So Alder Lake i3-N is now ambiguously equivalent to Skylake i3, at least in single thread. Maybe slightly ahead of Skylake i3 for multi-thread. And honestly the efficiency isn’t a whole lot better than Coffee Lake U/H. I think this is a last ditch desperate attempt to hang onto the entry-level market, by snake-oil rebranding Atoms as i3, so their vendors can market “i3” laptops against the coming Snapdragons with consumer muscle-memory… Read more »

Willy
26 days ago

I’ve always found their naming extremely confusing, even at the Pentium-M era where the CPU had nothing to do with a Pentium and was faster clock-for-clock than a P4 and way more efficient. Their Celeron-M was the same core with a tiny cache and a much lower frequency. Since then, “Atom” has meant plenty of things, like the crappy N450 that powered my previous netbook and that was nothing more than a high-frequency 486, the powerful E3825 with a large heatsink that easly routes 10 Gbps and does line-rate crypto in our entry-level appliances, and the slow x5-z8350 that can… Read more »

Jarek
Jarek
26 days ago

I really would want i3-n305 mini-ITX for a home server
What kinda sucks is only 9 pcie lanes and single channel only 🙁

Anonymous
Anonymous
26 days ago

Single channel? Throw it into the bin.

Roger
Roger
24 days ago

Single channel is not so much of a problem with DDR5 memory as each connected DIMM is configured with 2 smaller independent channels. So while a mult-channel processor is always going to score better on benchmarks these CPUs are going to gain quite a boost over their older DDR4-only brothers due to higher DDR5 MT/s rates and channel configuration.

Anonymous
Anonymous
16 days ago

DDR5 halves the size of the independent channels, so that doesn’t matter. Jasper Lake e.g. N6000 supports 2 memory channels, Alder Lake-N supports only 1 (not counting the subdivision). The roughly double overall bandwidth from higher transfer rates (e.g. DDR5-6400 instead of DDR4-3200) is negated by halving the number of channels. Maybe LPDDR5 is another story, but the memory situation sure looks like a sidegrade rather than an upgrade, at best. Could be even worse for a cheap model using DDR4. Now let’s pay $500 for it.

Someone
Someone
22 days ago

This.

Even N200 with a PCI-e slot would be nice for a twin SFP+ router. Does something like that exist?

tkaiser
tkaiser
4 days ago

BTW: you list ‘Max Turbo Power (MTP)’ in the table above while ARK talks about TDP instead and that matches more with reality.
