ASRock NUC 1300 BOX/ NUCS 1300 BOX mini PCs are powered by Intel Raptor Lake-P mobile processors

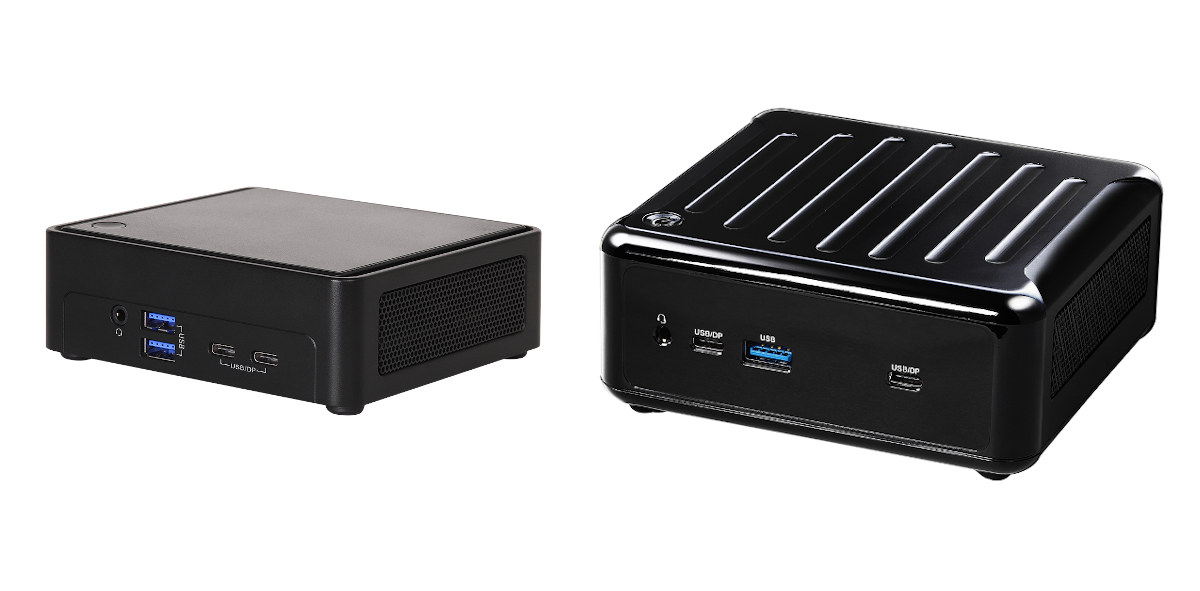

ASRock Raptor Lake-P mini PC

ASRock Industrial NUC 1300 BOX and NUCS 1300 BOX series mini PCs are equipped with Intel 13th generation Raptor Lake-P mobile processors up to the Core i7-1360P 12-core hybrid processor with four Performance cores and eight Efficiency cores.

Yesterday, we wrote about the ADLINK Express-RLP COM Express module based on Raptor Lake-P embedded or industrial processors, but ASRock decided to use Raptor Lake-P mobile processors in their industrial “fanned embedded box PCs” coupled with up to 64GB DDR5/DDR4 memory, and featuring high-speed interfaces such as USB4, 2.5GbE, and more.

NUCS 1300 BOX Series

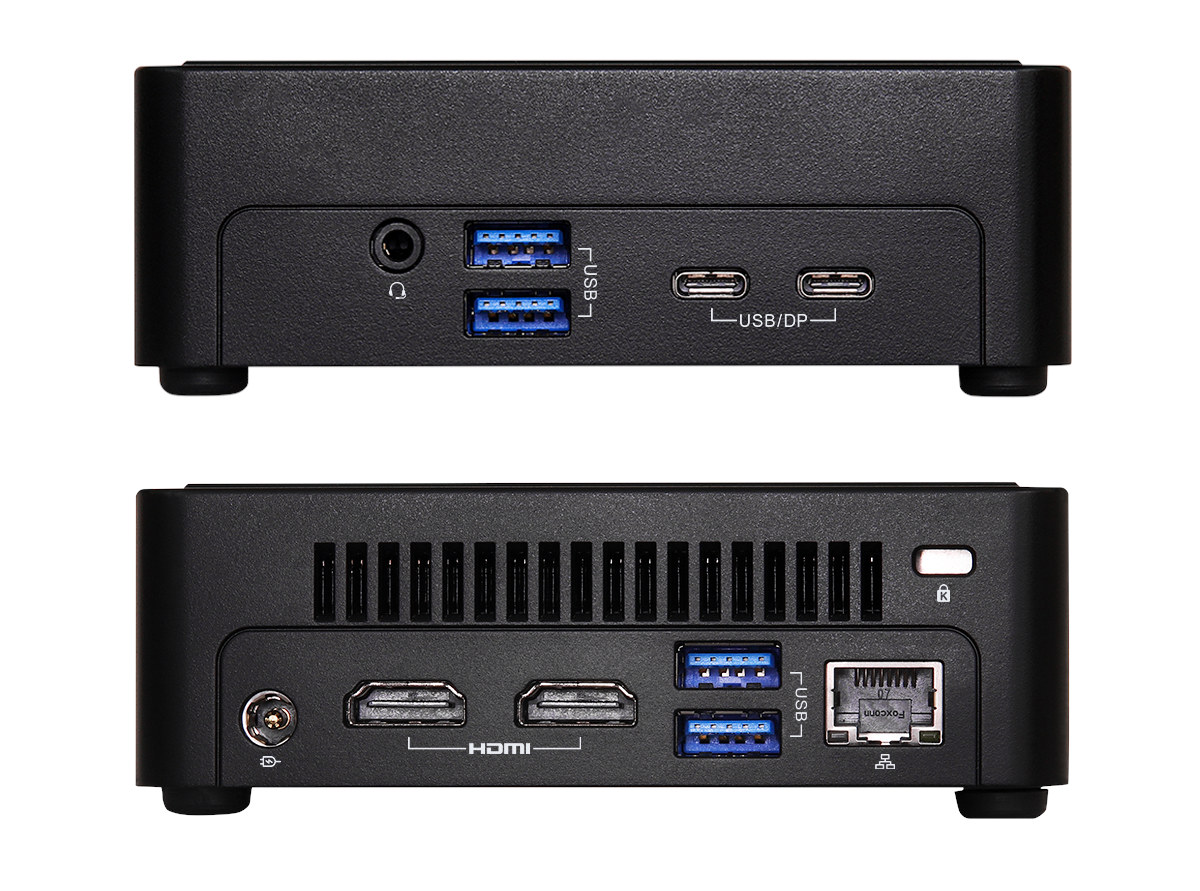

NUCS BOX-1360P/D4 Raptor Lake embedded BOX PC

Two NUCS 1300 Box models are available with either an Intel Core i7-1360P or i5-1340P processor.

NUCS 1300 Box specifications:

  • Raptor Lake-P SoC
    • NUCS BOX-1340P/D4 – Intel Core i5-1340P 12-core (4P @ 1.9/4.6 GHz + 8E @ 1.4/3.4 GHz) processor with 80EU Intel Iris Xe Graphics; PBP:  28W, MTP: 64W
    • NUC BOX-1360P/D4 – Intel Core i7-1360P 12-core (4P @ 2.2/5.0 GHz + 8E @ 1.6/3.7 GHz) processor with 96EU Intel Iris Xe Graphics; PBP:  28W, MTP: 64W
  • System Memory – Up to 64GB (2x 32GB) via two DDR4 3200 MHz SO-DIMM sockets
  • Storage
    • M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
    • 256 Mbit SPI flash for AMI BIOS/UEFI
  • Video Output
    • 2x HDMI 2.0b ports up to 4096×2160 @ 60Hz
    • 2x USB-C ports with DisplayPort 1.4 Alt mode up to 4096×2160 @ 60Hz
    • Up to 4x independent displays
  • Audio – Realtek ALC233 HD audio codec; 3.5mm headphone+microphone jack
  • Networking – 2.5GbE RJ45 port via Intel i226LM controller
  • USB – 1x USB4 port with DP 1.4a Alt mode, 2x USB 3.2 Gen 2 Type-A ports, 1x USB 3.2 Gen2 Type-C port with DP 1.4a Alt mode
  • Expansion Slot
    • M.2 Key M 2280 socket (PCIe Gen4 x4)
    • M.2 Key E 2230 socket (PCIe x1, USB 2.0) for Wi-Fi 6E 802.11ax (2.4Gbps) + Bluetooth 5.2
  • Security – TPM 2.0 onboard IC
  • Misc – Watchdog Timer
  • Power Supply
    • 12V~19V via DC jack
    • AT/ATX support
      • AT : Directly PWR on as power input ready
      • ATX : Press button to PWR on after power input ready
  • Dimensions – 117.5 x 110.0 x 38mm (Plastic with sheet metal chassis)
  • Weight – 900 grams
  • Temperature Range – Operating: 0ºC ~ 40ºC; storage: -40° C – 85° C
  • Humidity – 5% ~ 90%
  • Certifications – CE, FCC

The mini PC ships with a 19V/90W power adapter, a screw package, and a VESA mounting bracket. ASROCK provides drivers for Windows 10 and Windows 11, all of which are marked “Beta”, but I’d expect Linux distributions to eventually be supported as well.

NUC 1300 Box Series

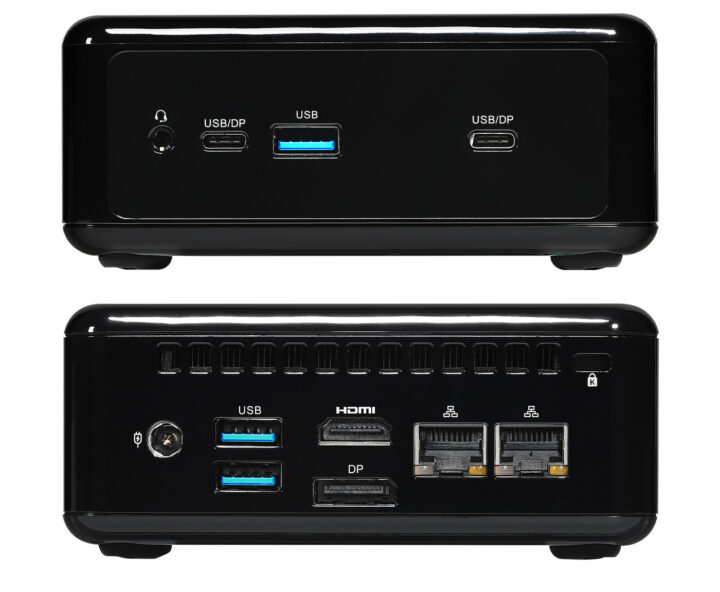

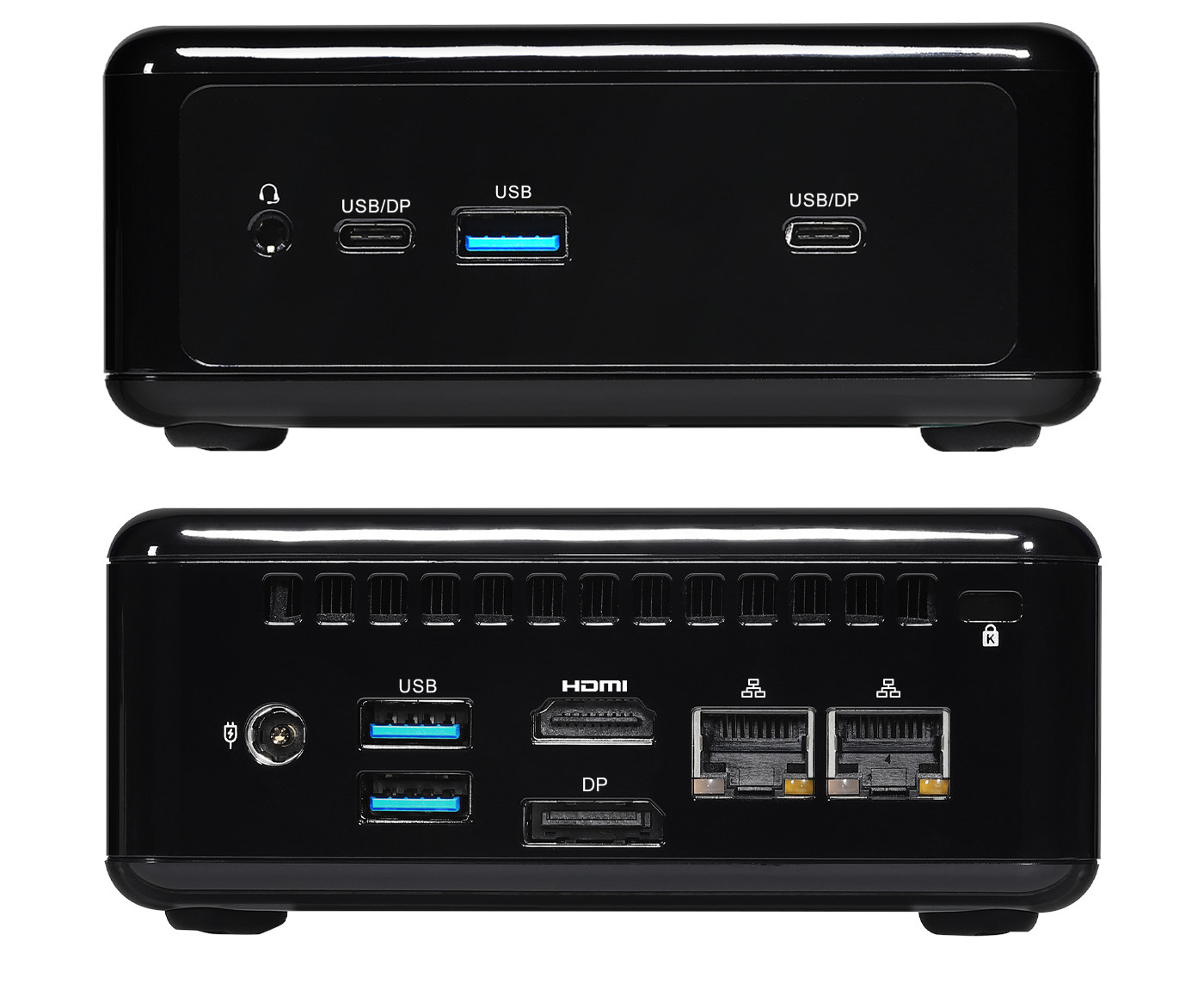

NUC BOX-1360P/D4 Raptor Lake-P mini PC
The NUC 1300 Box series have a thicker design with support for a 2.5-inch SATA drive, and a slightly different feature set including two 2.5GbE port, as well as HDMI and DisplayPort video outputs. Four models are available with the same processor mix as above, but the D5 variant comes with DDR5 memory and a Realtek ALC256 audio codec, while the D4 keeps the DDR4 memory and ALC233 codec.

NUC 1300 Box specifications:

  • Raptor Lake-P SoC
    • NUC BOX-1340P/D4 or BOX-1340P/D5 – Intel Core i5-1340P 12-core (4P @ 1.9/4.6 GHz + 8E @ 1.4/3.4 GHz) processor with 80EU Intel Iris Xe Graphics; PBP:  28W, MTP: 64W
    • NUC BOX-1360P/D4 or BOX-1360P/D5 – Intel Core i7-1360P 12-core (4P @ 2.2/5.0 GHz + 8E @ 1.6/3.7 GHz) processor with 96EU Intel Iris Xe Graphics; PBP:  28W, MTP: 64W
  • System Memory
    • NUC BOX-1300 D4 – Up to 64GB (2x 32GB) via two DDR4 3200 MHz SO-DIMM sockets
    • NUC BOX-1300 D5 – Up to 64GB (2x 32GB) via two DDR5 4800MHz 262-pin SO-DIMM sockets
  • Storage
    • M.2 (Key M, 242/2260/2280) with PCIe Gen4 x4 for SSD; note: M.2 2280 SSD requires a bracket
    • 1x SATA 3.0 port
    • 256 Mbit SPI flash for AMI BIOS/UEFI
  • Video Output
    • 1x HDMI 2.0b port up to 4096×2160 @ 60Hz
    • 1x DisplayPort 1.4, DP++ port up to 4096×2160 @ 60Hz
    • 2x USB-C ports with DisplayPort Alt mode
    • Up to 4x independent displays
  • Audio
    • NUC BOX-1300 D4 – Realtek ALC233 HD audio codec
    • NUC BOX-1300 D5 – Realtek ALC256 HD audio codec
    • 3.5mm headphone+microphone jack
  • Networking – 2x 2.5GbE RJ45 port via Intel i226LM controller
  • USB – 1x USB4 port with DP 1.4a Alt mode, 3x USB 3.2 Gen 2 Type-A ports, 1x USB 3.2 Gen2 Type-C port with DP 1.4a Alt mode
  • Expansion Slot
    • M.2 Key M 2280 socket (PCIe Gen4 x4)
    • M.2 Key E 2230 socket (PCIe x1, USB 2.0) for Wi-Fi 6E 802.11ax (2.4Gbps) + Bluetooth 5.2
  • Security – TPM 2.0 onboard IC
  • Misc – Watchdog Timer
  • Power Supply
    • 12V~19V via DC jack
    • AT/ATX support
      • AT : Directly PWR on as power input ready
      • ATX : Press button to PWR on after power input ready
  • Dimensions – 117.5 x 110.0 x 47.85mm (Plastic with sheet metal chassis)
  • Weight – 1,000 grams
  • Temperature Range – Operating: 0ºC ~ 40ºC; storage: -40° C – 85° C
  • Humidity – 5% ~ 90%
  • Certifications – CE, FCC

As one would expect the accessories and software support (Windows 10/11) is the same for the NUC and NUCS models. All six Raptor Lake-P mini PC are suitable for gaming, content creation, productivity, digital signage, AI gateway, smart retail, etc…

The company did not provide availability information in their email press email. More details may be found on ASRock Industrial website.
