Khadas VIM1S (Amlogic S905Y4) SBC review with Android 11

Khadas VIM1S Android 11 review

We’ve previously tested Ubuntu 22.04 on Khadas VIM1S Amlogic S905Y4 SBC, so we’ll switch to Android 11 in the second part to check out the user experience and benchmark the system under Android.

Installing Android 11 on Khadas VIM1S board with OOWOW

We’ll basically follow the same procedure as with Ubuntu to flash the Android OS. Press and hold the Function button, press the Reset button, and release the Function button. to enter the OOWOW Wizard, and if an Ethernet cable is not connected, select Network to configure Wi-Fi as the installation process requires downloading an image from Khadas servers. This time, we’ll select the latest Android 11 image namely vim1s-android-11-v221020.raw.img.xz

Khadas OOWOW Android 11 VIM1S image

At just 525 MB in size (when compressed), the Android 11 image for Khadas VIM1S board is fairly compact.

OOWOW Android 11 image

Installing Android with OOWOW is really easy with the interface downloading and flashing the image to the eMMC flash without having to prepare a MicroSD card or play with USB flashing tools. Once the installation is complete, we can reboot the board to access Android.

Android 11 settings

Most of the Settings are pretty standard, but Khadas also added settings specific to their boards. For example, it’s possible to set the screen rotation or adjust the density in the Display & Sound section. The power key behavior can also be specified by the user selecting either suspend, shutdown or restart.

Khadas Settings

Another option includes scheduled power on & off where it’s possible to set the on and off times, as well as define specific days of the week. This feature is especially useful for kiosks or digital signage. We can also find more details about the Android version, WiFi, Ethernet, Bluetooth, etc. in the About device section.

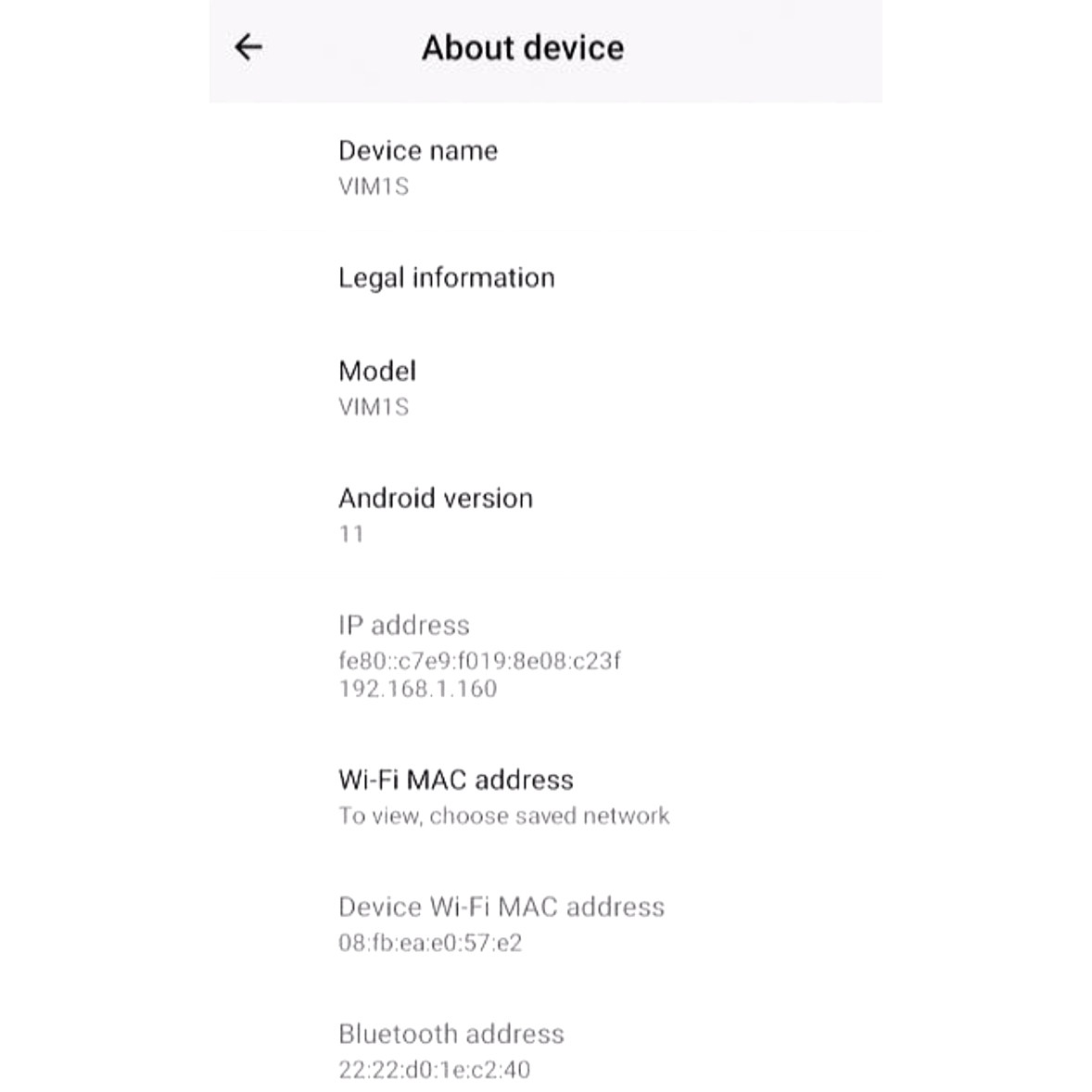

Khadas VIM1S about device

General use testing

We then tested typical use cases considering the Khadas VIM1S board comes with 2GB RAM, a quad-core CPU, a Mali-G31 GPU, and support for AV1, VP9, and H.265 video decoding. So we plated some 4K Youtube videos as well as H.264 and H.265 files at 4K resolution with AMPlayer with the board connected to a 2K display.

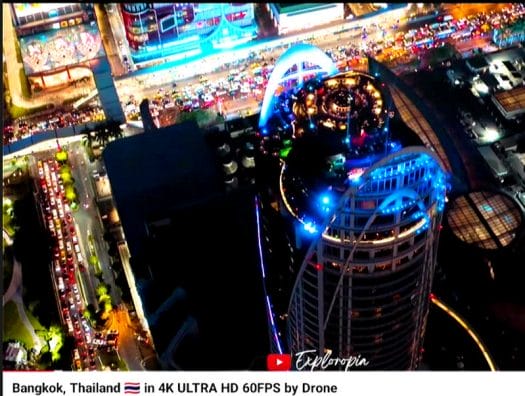

Khadas VIM1S YouTube Video playback
YouTube video

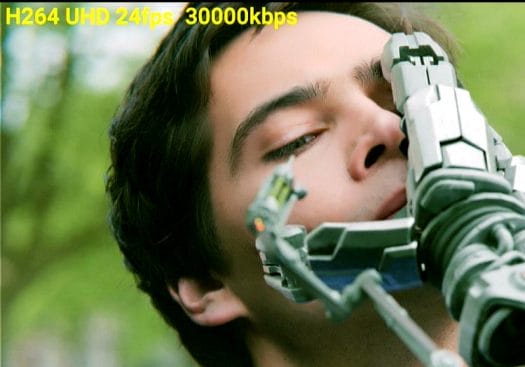

AMplayer H.264 video
4K H.264 video in AMPlayer

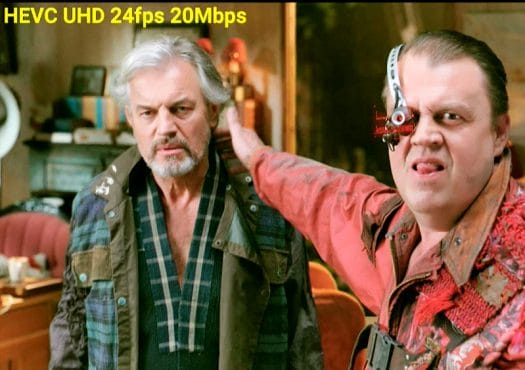

AMplayer H.265 4K video
2K H.264 video in AMPlayer

We then installed Asphalt 9 to test a 3D game, and there were some stuttering problems while playing, but it could still be considered playable.

Asphalt 9 Android 11 Khadas VIM1S

Android 11 system info and benchmarks on Khadas VIM1S

Before benchmarking the Khadas VIM1S board, CPU-Z was installed to check the system info including CPU, RAM, and eMMC flash size with about 10GB of free space after installing the OS.

Khadas VIM1S (kvim1s) CPU Z

3D graphics performance was tested through the 3DMark Android Benchmark program using both OpenGLES 3.0 and Vulkan. The scores for Sling Shot and Wild Life were pretty low compared to a higher-end board such as the Khadas VIM4.

Khadas VIM1S 3Dmark benchmarksFinally, we tested the overall system performance with the Passmark PerformanceTest 10 program. The score was 520 which compares to 2,553 points on Khadas VIM2 and 2747 points on Khadas VIM4, in other words, Khadas VIM1S is around 5 times slower than the Khadas VIM2 on this specific benchmark.

PassMark Performance Test 10 on Khadas VIM1S
PassMark Performance Test 10

Conclusion

Android 11 is stable on the Khadas VIM1S board and can be considered usable to a certain extent. The performance is quite low, up to 5 times slower compared to VIM4, but on the other hand, the price is also just a third of the higher-end board, so it will depend on your use case. The Khadas VIM1S works well when playing videos and may be a good fit for digital signage and kiosk applications. Other benefits are its thin profile and low power consumption which can make it suitable for some robotics projects.

I’d like thank to Khadas for sending the VIM1S SBC for review. The board can be purchased on the Khadas online store for $64.90.

CNXSoft: This article has been translated (with some modifications) from the original review in Thai language on CNX Software Thailand.
