Vecow ECX-3200 expandable fanless embedded system is powered by a 13th Gen Raptor Lake-S processor

Vecow ECX-3200 is an expandable, fanless embedded system powered by Intel 13th generation Core i9/i7/i5/i3 Raptor Lake-S processor or 12th generation Alder Lake-S processor designed for rugged Machine Vision, AMR, Rolling Stock, Smart Retail and Edge AI applications.

The ECX-3200 supports up to 64GB DDR5, SATA & NVMe storage, offers four 2.5GbE RJ45 or M12 ports with PoE+ on the rear panel, plus one additional Gigabit Ethernet port and a 2.5GbE port on the front panel, four video outputs up to 8Kp60 resolution, several USB 3.2 ports up to 20 Gbps, some serial ports, as well as isolated I/Os.

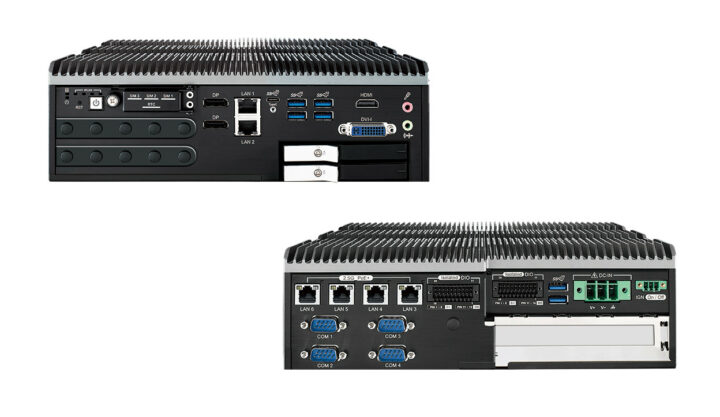

Vecow ECX-3200 fanless Raptor Lake embedded system

Vecow ECX-3200 specifications:

  • SoC
    • Up to 24-core 13th Gen Intel Core i9/i7/i5/i3 Raptor Lake-S processor with Intel Xe graphics
    • Up to 16-core 12th Gen Intel Core i9/i7/i5/i3 Processor Alder Lake-S processor with Intex Xe graphics
  • System Memory – Up to 64GB DDR5-4800 (2x 32GB) via 2x SO-DIMM sockets
  • Storage
    • 2x SATA III (6Gbps) with support for S/W RAID 0, 1, 2x front-access 2.5-inch SSD/HHD trays
    • 1x M.2 Key M Socket (2280, PCIe x4)
  • Video Output
    • 2x DisplayPort up to 7680 x 4320 @ 60Hz or 5120 x 2880 @ 60Hz
    • 1x DVI-I up to 1920 x 1080 @ 60Hz
    • 2x HDMI up to 1920 x 1080 @ 60Hz
  • Audio
    • Realtek ALC888S-VD audio codec supporting 7.1-channel HD audio
    • 1x Mic-in jack, 1x Line-out jack
  • Connectivity
    • Ethernet
      • 1x Gigabit Ethernet RJ45 port via Intel I219LM controller with iAMT support
      • 1x 2.5GbE RJ45 port via Intel I226-IT controller
      • 4x 2.5GbE RJ45 or M12 ports with 802.3at (25.5W/48V) PoE+ support via Intel I226 controllers
    • Optional WiFi and/or Bluetooth via M.2/mPCIe modems
    • Optional 5G or 4G LTE via mini PCIe or M.2 modems, 3x Nano SIM card slots
  • USB
    • 6x USB 3.2 Gen 2 Type-A connectors
    • 1x USB 3.2 Gen 2×2 Type-C connector up to 20Gbps data transfer (15W, 5V/3A)
  • Serial  – 4x COM RS-232/422/485
  • Expansion
    • 1x Mini PCIe socket for PCIe/USB/SIM Card, Optional mSATA
    • 1x PCIe x16 slot
    • 1x M.2 Key B 3042/2280 socket (PCIe/USB3/USB2)
    • 1x M.2 Key B 3052/2280 socket (PCIe/USB3/USB2)
    • 1x M.2 Key E 2230 socket (PCIe/USB)
    • 32x Isolated DIO: 16 DI, 16 DO
    • Optional 2x SUMIT (Stackable Unified Module Interconnect Technology) A/B slots with customized chassis
  • Security – Infineon SLB9670 TPM 2.0 chip, SPI Interface
  •  Misc
    • Power, HDD, PoE, WLAN LEDs
    • Front-access RTC battery
    • Watchdog Timer
    • Smart Management – Wake on LAN, PXE
    • HW Monitor – Monitoring temperatures and voltages. Auto throttling control when CPU overheats.
  • Power Supply
    • 9V to 50V DC input via 3-pin Terminal Block with V+, V-, Frame Ground
    • Ignition Control – 16-mode Software Ignition Control
    • Remote Switch – 3-pin Terminal Block
  • Dimensions – 260 x 240 x 79mm
  • Weight – 4.5 kg
  • Temperature Range
    • Operating
      • 35W TDP CPU : -40°C to 75°C, fanless operation
      • 65W TDP CPU : -40°C to 55°C, fanless operation
    • Storage – -40°C to 85°C
  • Humidity – 5% to 95% Humidity, non-condensing
  • Shock
    • IEC 60068-2-27
    • SSD : 50G @ wall mount, half-sine, 11ms
  • Vibration
    • IEC 60068-2-64
    • SSD : 5Grms, 5Hz to 500Hz, 3 Axis
  • EMC – CE, FCC, EN50155, EN50121-3-2

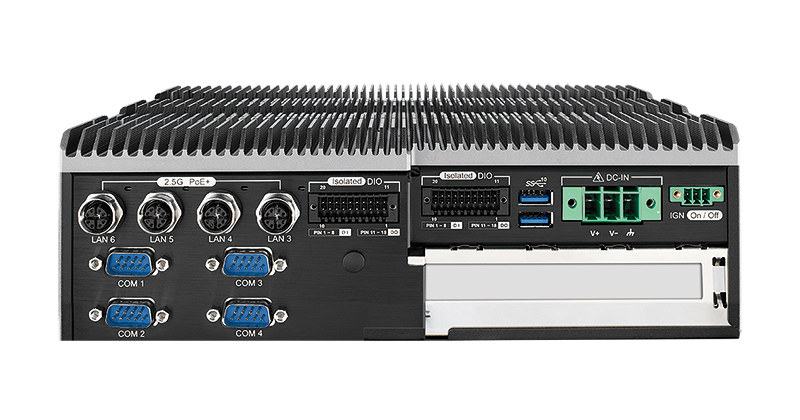

Embedded System with 2.5GbE M12 connectors
ECX-3200MX with 2.5GbE M12 PoE+ ports especially useful for Rolling Stock (i.e trains) applications

The system can be wall mounted with a bracket, and Vecow also provides a VESA mount and/or a 2U rackmount as options. The company supports Windows 10 and Linux on the fanless Raptor Lake-S embedded computer both for the 35W TDP and 65W TDP parts, but the latter can only operate in a narrower -40°C to 55°C temperature range.

We previously wrote about similar Alder Lake-S embedded systems with the ASRock iEPF-9010S/iEP-9010E Edge AIoT platforms offering a greater range of interfaces and up to 128GB, but the systems are actively cooled instead of being fanless like the Vecow embedded computer. There’s also the ECX-3100 with similar features as the ECX-3200, except the 2.5GbE camera ports are gone, and it only comes with 16 isolated I/Os instead of 32.

Vecoew did not provide availability or pricing information, but this type of system should cost several thousand dollars. More information about the ECX-3100, ECX-3200, and ECX-3100MX (M12) may be found on the products page.
