Canonical releases Ubuntu 24.04 Server image for Milk-V Mars RISC-V SBC

Canonical has been releasing Ubuntu RISC-V images for SBCs and QEMU at least since 2021. The latest addition is an Ubuntu 24.04 Server image for the Mars credit-card-size SBC powered by StarFive JH7110 quad-core RISC-V SoC and designed by Shenzhen Milk-V Technology.

That means we now have Ubuntu Server images for the QEMU emulator, AllWinner Nezha SBC, Microchip Polarfire SoC FPGA Icicle Kit, SiFive Unmatched mini-ITX motherboard, Sipeed LicheeRV Dock, StarFive VisionFive 2 SBC, and the Mars SBC. You’ll note there aren’t any Ubuntu Desktop images for now, because the GPU (if any) in RISC-V SoCs is not yet fully supported.

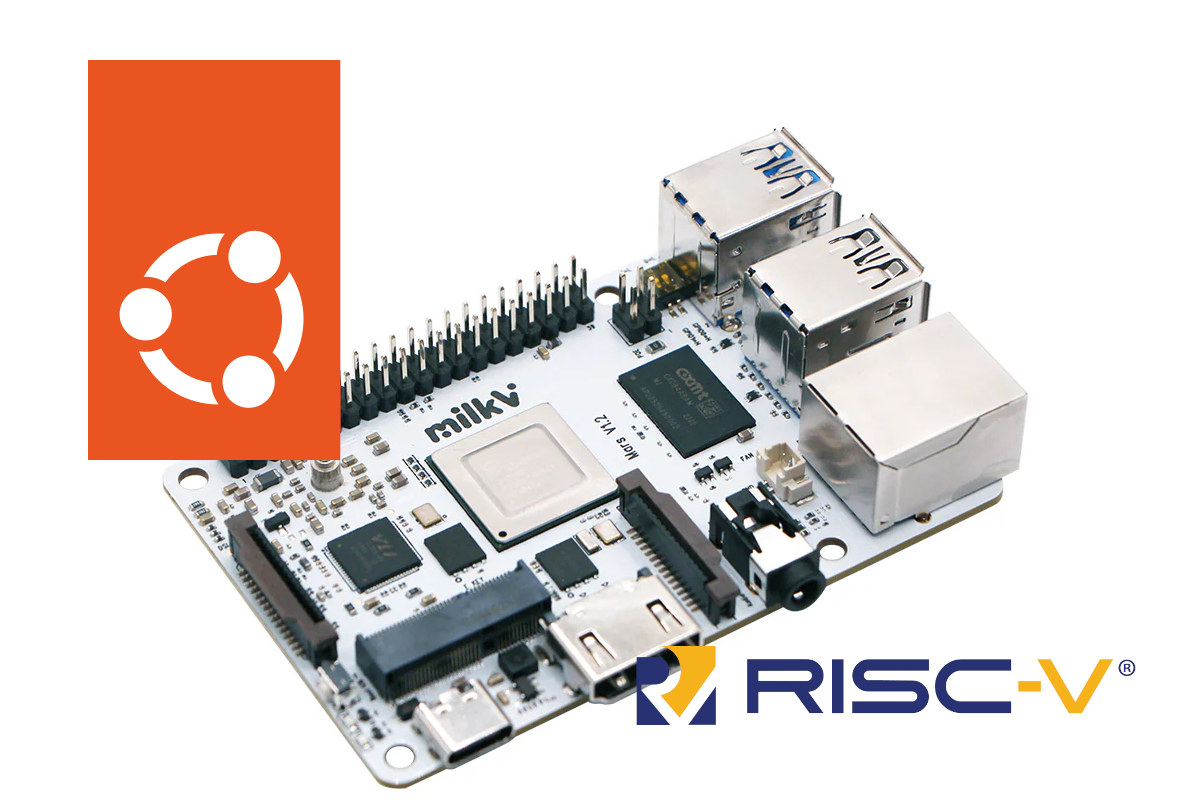

Milk-V Mars Ubuntu 24.04 server

Mars SBC specifications:

  • SoC – StarFive JH7110
    • CPU – Quad-core RISC-V processor (RV64GC) at up to 1.5GHz
    • GPU – Imagination BXE-4-32 GPU with support for OpenCL 1.2, OpenGL ES 3.2, Vulkan 1.2
    • VPU
      • H.264 & H.265 4Kp60 decoding
      • H.265 1080p30 encoding
      • JPEG encoder / decoder
  • System Memory – 1GB, 2GB, 4GB, or 8GB LPDDR4
  • Storage
    • eMMC slot
    • MicroSD slot
    • SPI Flash for bootloader
  • Display Interfaces
    • HDMI video output
    • 2-lane MIPI DSI connector
    • 4-lane MIPI DSI connector
    • Up to two independent displays (HDMI + 1x MIPI DSI)
  • Camera – 2-lane MIPI CSI connector
  • Networking
    • Gigabit Ethernet RJ45 port
    • Optional WiFi and Bluetooth via M.2 socket
  • USB – 3x USB 3.0 ports + 1x USB 2.0 port
  • Expansion
    • M.2 E-Key socket (USB 2.0 or PCIe Gen 2.0 x1)
    • 40-pin Raspberry Pi-compatible GPIO header
  • Misc
    • 1x Recovery button
    • 2-pin 5V slot for fan
  • Power Supply
    • 5V/3A+ via USB-C port
    • 5V/3A+ via GPIO Power in or GPIO header
    • PoE with add-on PoE HAT
  • Dimensions – 85 x 56mm

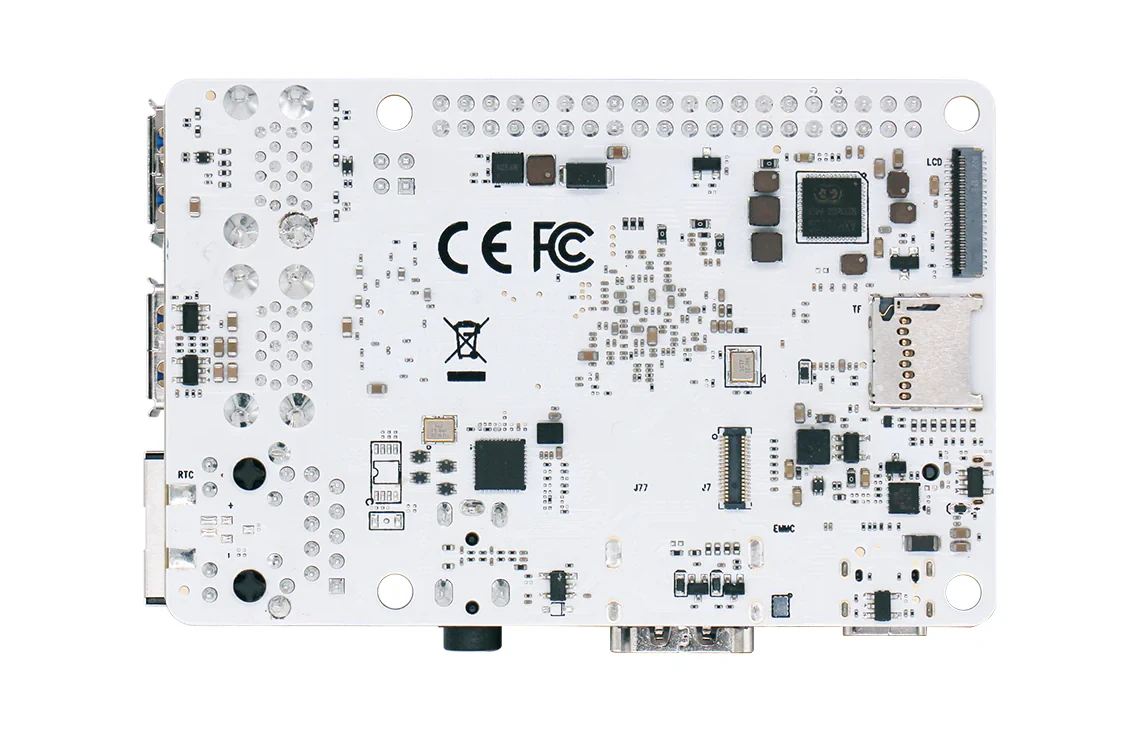

Credit card-sized RISC-V SBCYou’ll find the Ubuntu 24.04 server image for the Mars SBC on the Ubuntu Download page, and instructions to get started on a dedicated wiki page on the Ubuntu website. Some limitations include:

  • The onboard GPU is not supported.
  • PCIe support is incomplete: An NVMe drive can be used. WiFi cards and external GPUs don’t work.
  • While the 3 USB 3.0 ports are working the USB 2.0 port is not supported by the 6.8 kernel.

I was a little confused about the second point since Key E sockets are seldom used for storage, so I went to look at the schematics:

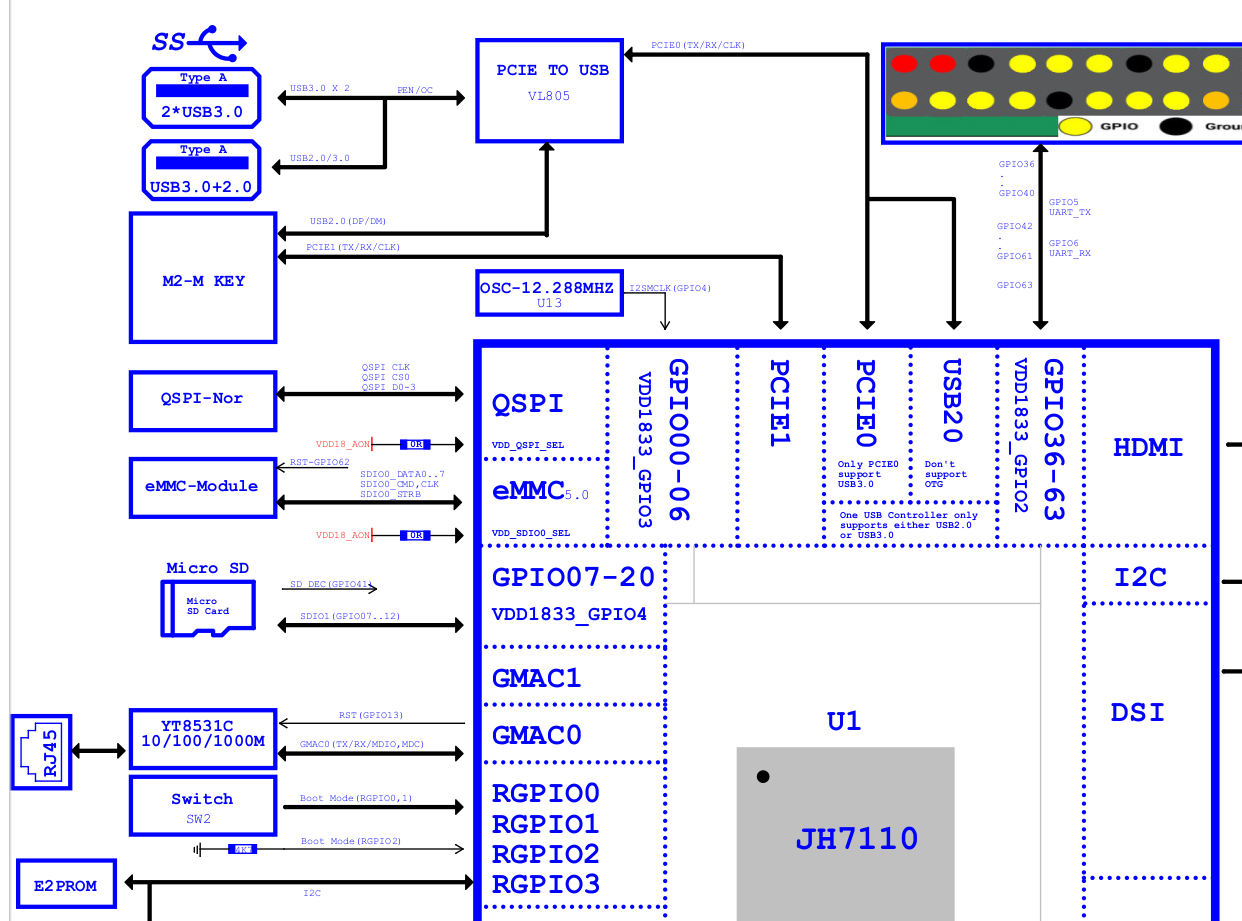

Mars schematics M2 socket

M2-M Key is likely a mistake as the rest of the schematics confirm it’s an M.2 Key-E socket. We can see the socket is connected to the PCIe1 interface of the JH7110 SoC and to USB 2.0 through a VL805 PCIe to USB controller, so it would allow various USB or PCIe cards to be connected potentially using adapters.

Nevertheless, there’s a lot of work to do, but the companies entered an agreement to make Ubuntu the main OS for the Mars SBC and other future Milk-V RISC-V hardware platforms:

Milk-V and Canonical have reached a strategic cooperation agreement with the intention of bringing Ubuntu to novel RISC-V devices. Milk-V will provide hardware sponsorship to Canonical, including for future products, and offer an Ubuntu operating system as its main supported and maintained system to users across form factors and use cases, with a specific emphasis on accelerated computing and AI. With the support of Milk-V’s hardware and engineering teams, Canonical will leverage the latest and greatest RISC-V designs to continuously improve Ubuntu and the broader open source ecosystem for the RISC-V ISA. Once new Milk-V products will be available, Canonical will collaborate with Milk-V to launch developer preview Ubuntu images and support version updates. This collaboration is aimed at providing users of the RISC-V architecture platform with a rich operating system designed to enhance development and user experiences.

Another issue is availability as the Mars SBC is listed for $38.99 and up on Arace Tech, but all models are currently out of stock. The Mars CM – the Raspberry Pi CM4 equivalent of the Mars SBC – can be purchased on Arace Tech as well as on various stores on Aliexpress, so maybe the Mars RISC-V SBC will eventually show up in one of those soon.
