Star Cloud PCG02U Ubuntu TV Stick Unboxing and Teardown

Star Cloud PCG02U is one of the rare device selling pre-loaded with Ubuntu 14.04, and MeLE, who owns Start Cloud brand, sent me one sample for review. While many Android & Windows devices can be “hacked” to run Linux distributions such as Ubuntu, Star Cloud PCG02U is the first device that I’ve ever received that’s actually shipped with Ubuntu 14.04. So it will be very interesting to find out how it performs, but today, I’ll check the device and its accessories, as well as the hardware design.

Star Cloud PCG02 Unboxing

The TV stick ships  in a Ubuntu orange retail packaging with Star Cloud branding, and mention of Ubuntu and Intel.
Star_Cloud_PCG02U_PackageI had already published the specifications in my first post, a confirmation on the package is always good.

Click to Enlarge

Click to Enlarge

The TV stick ships with a 5V/2A power adapter and multi-country plug adapters, a female to female HDMI adapter, a Quick Start Guide in English, and a notice reading “Caution Hot” that warns you the thing may get hot. It’s not really reassuring, but the case is made of metal used to dissipate heat from the processor, so that’s probably why.

Click to Enlarge

Click to Enlarge

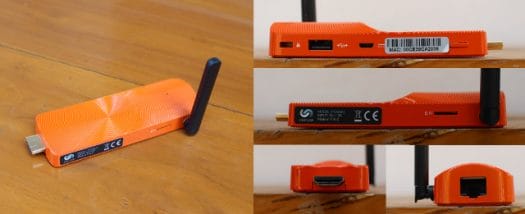

The stick has two levels of thickness due to the Ethernet port on one of the ends.

Click to Enlarge

Click to Enlarge

Other ports include an HDMI 1.4 male port, a Kensington lock, a full size USB port, a micro USB port for power only, the power button, and a micro SD slot. There’s also an external WiFi antenna.

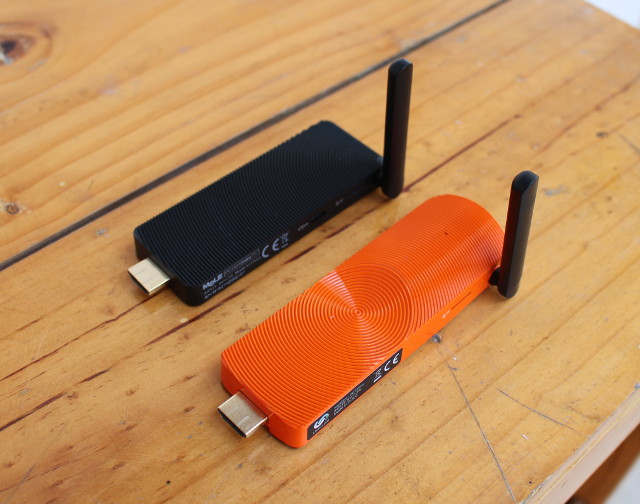

Mele_PCG01_Star_Cloud_PCG02Finally, I’ve taken a picture with MeLE PCG01 TV stick to show PCG02 is both longer and thicker due to the Ethernet port.

Star Cloud PCG02U Teardown

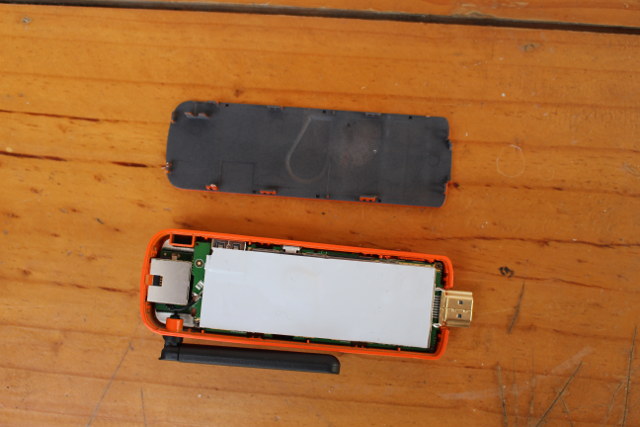

You’ll need some sharp tool, preferably in plastic, to take out the metal cover on the bottom.
PCG02U_Teardown
They’ve installed a thermal pad to conduct heat to the enclosure.

PCG02U_thermal_pad

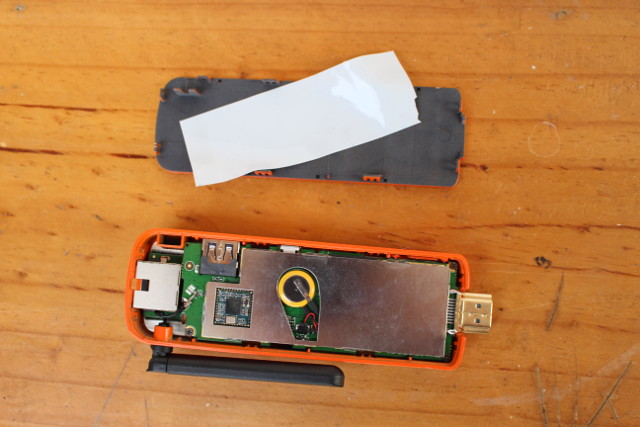

Removing it reveals Realtek RTL8723BS 802.11 b/g/n WiFi (2.4 GHz only) and Bluetooth 4.0 module, and the RTC battery seen through cuts out of a metal shield. I’m not sure Bluetooth is supported by the included driver, as MeLE did not list this feature in their specs.

Click to Enlarge

Click to Enlarge

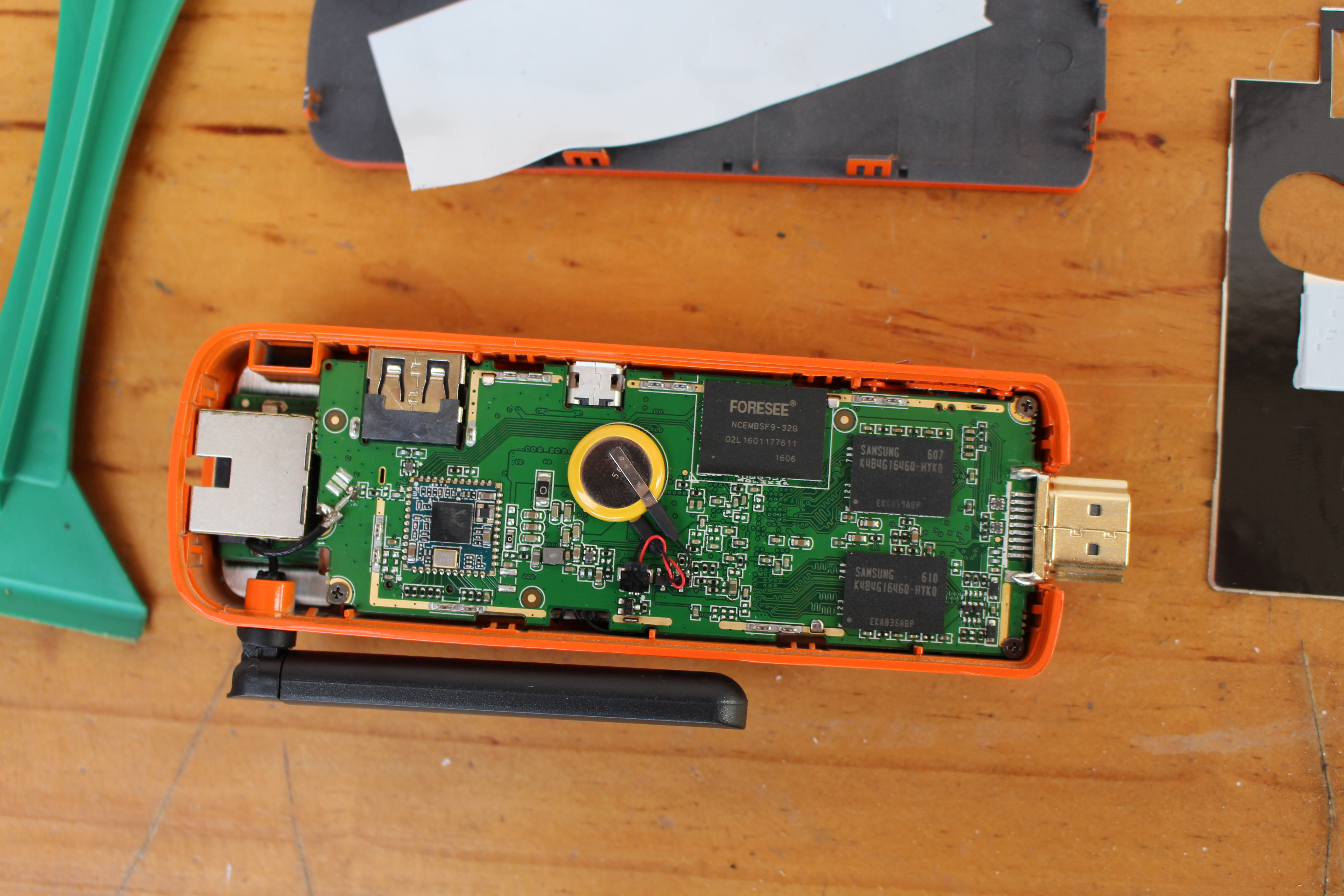

After removing the shield we can see FORESEE NCEMBSF9-32GB eMMC flash (32GB), and two Samsung K4B4G1646Q-HYK0 DDR3 ram chips (2 x 512 MB). The next step is to loosen the three screws to take out the mainboard from the case. Be careful not to damage the Wifi antenna wire, or the wires connected to the Ethernet daughter board during this step.

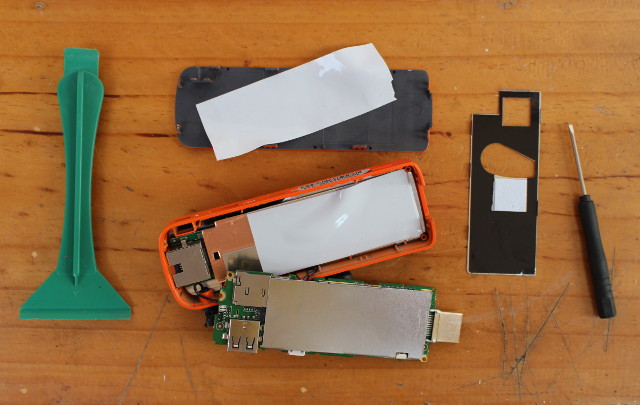

Star_Cloud_PCG02U_CoolingThere’s also a metal shield on that part of the PCB, and more thermal pads and various metal plates for cooling the fanless stick. Three or four bit of the shield go through the board, and a folded to open it in place. So first I had to straightnen out those, and I could remove the shield.

Click to Enlarge

Click to Enlarge

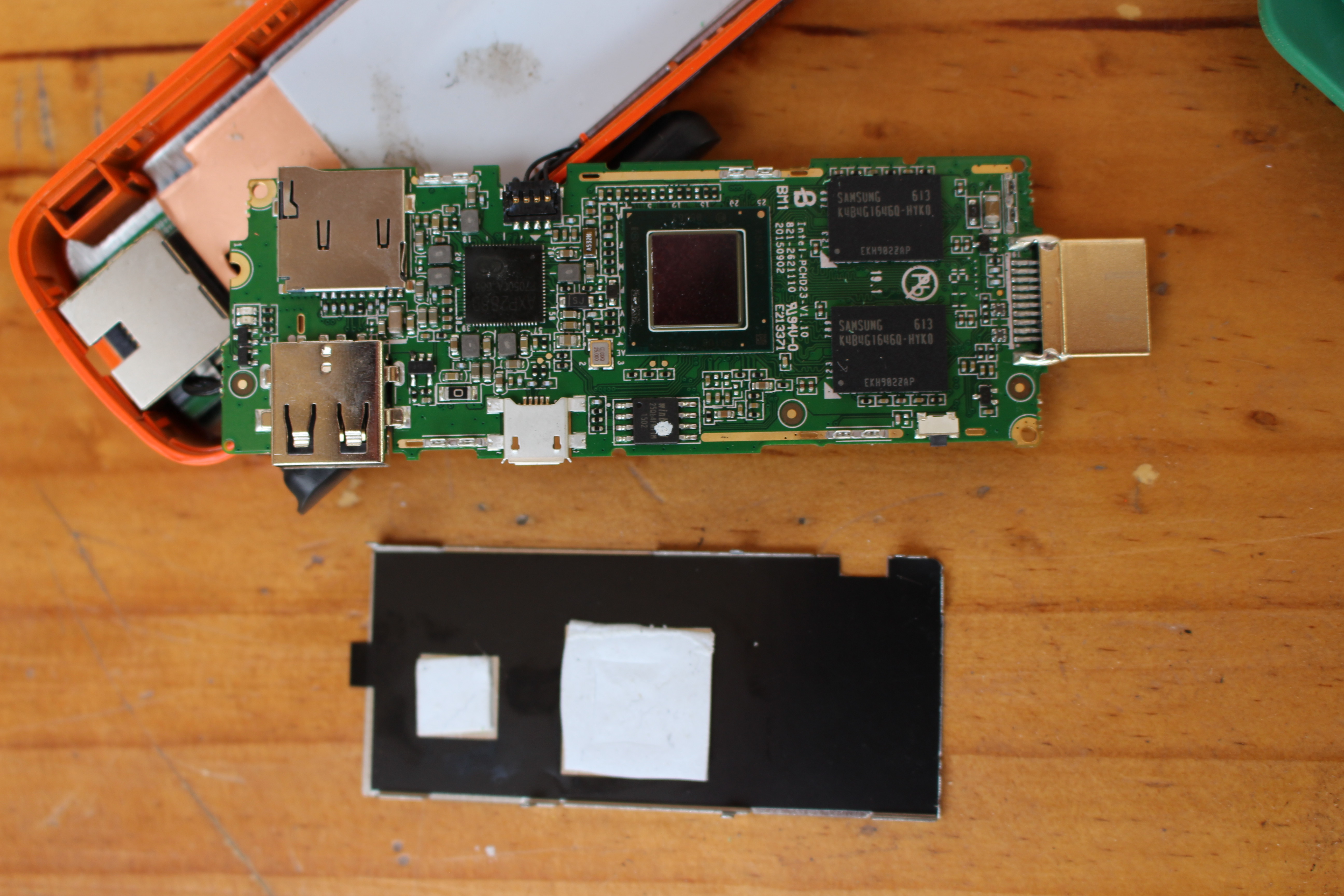

One that side, we’ve got Intel Atom Z3735F Bay Trail processor,  two more Samsung RAM chip that brings the total to 2GB, and AXP288D PMIC. I’ve finally removed one more bock with a metal sheet, a metal plate, and a thermal pad to uncover the Ethernet “daughter board”.

Click to Enlarge

Click to Enlarge

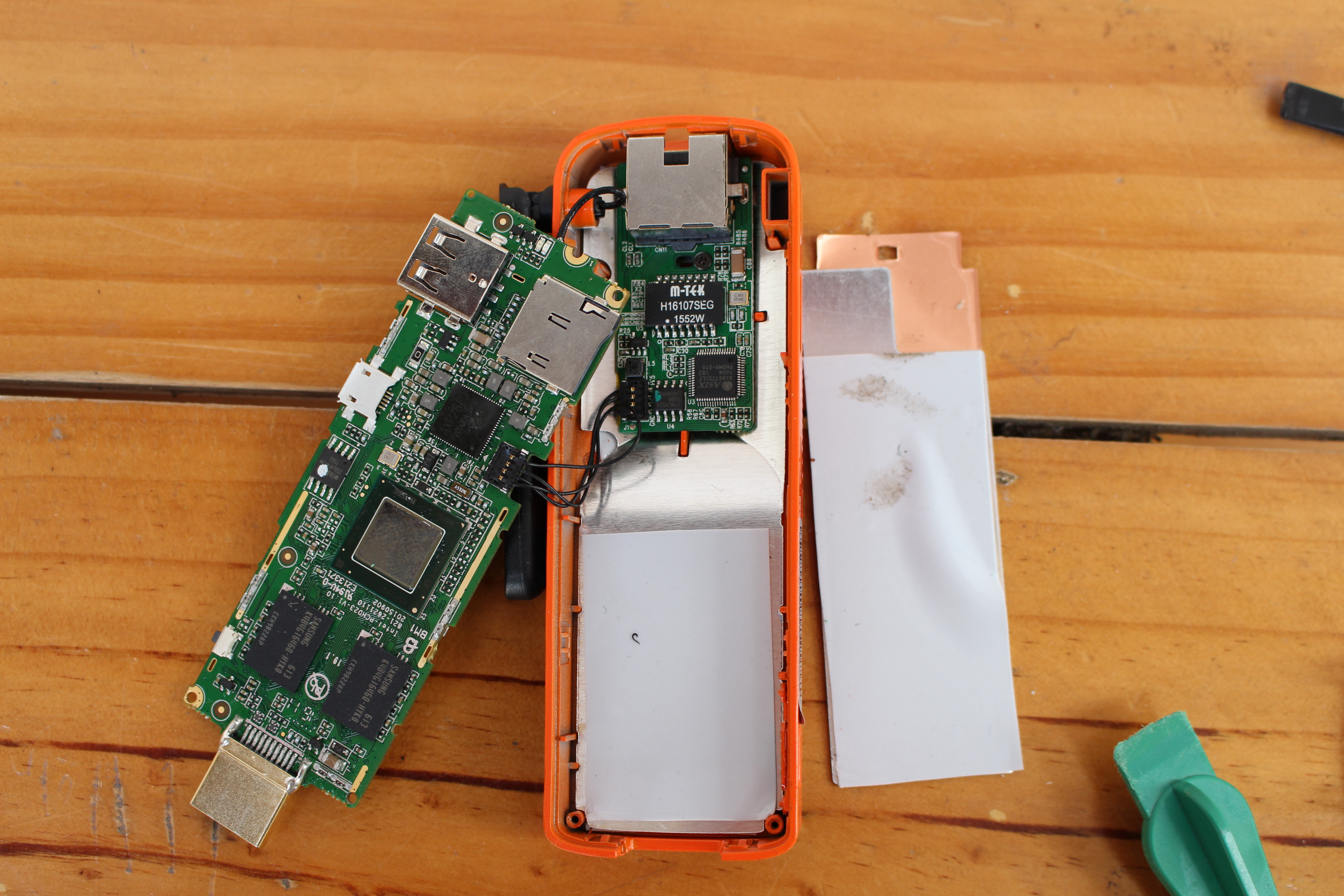

Ethernet is implemented with AXIS AX8872CLF USB 2.0 to Fast Ethernet controller, M-TEK H16107SEG 10/100M Ethernet transformer, as well as what should an EEPROM to store the MAC address. One more thermal pad and metal sheet have been installed to make sure the device cools properly. At least, they’ve made some serious efforts working on the thermal design, but we’ll have to see how well it works.

I’d like to Thanks MeLE for sending Star Cloud PCG02U Bay Trail Ubuntu TV stick for review, and if you are interested you can purchase it on Aliexpress for $69.74 including shipping. Please note that MeLE PCG02U will not ship to North America (US, Canada, Mexico), as distribution will be handled by a yet-to-be disclosed third party.
