Dell Edge Gateway 3000 Series Are Powered by Intel Bay Trail-I SoCs for Automation, Transportation, and Digital Signage

Dell has recently introduced Edge Gateway 3000 series with three models powered by Intel Bay Trail-I processor, running Ubuntu Core 16 or Windows 10 IoT, with each model targeting respectively general-purpose automation, transportation & logistics, and digital signage and retail.

The specifications for the three models can be found in the table below.

Dell Edge Gateway 3001
Model for General-Purpose Automation
Dell Edge Gateway 3002
Model for Transportation & Logistics
Dell Edge Gateway 3003
Model for Media & Retail Kiosks
SoC Intel Atom E3805 dual core processor  @ 1.33 GHz (3W TDP) Intel Atom E3815 single core processor @ 1.46 GHz with GPU @ 400 MHz (5W TDP)
System Memory 2 GB DDR3L-1066
Storage 8 or 32 GB eMMC flash
Industrial-grade Micro-SD card: 8GB / 16GB / 32 GB / 64 GB
Connectivity 1 x 10/100 Fast Ethernet (RJ-45)
with PoE (15.4W)
WiFi 802.11 b/g/n
Bluetooth 4.0 LE
Optional ZigBee module.
2x 10/100 Fast Ethernet (RJ-45), main port supports PoE (15.4W)
WiFi 802.11 b/g/n
Bluetooth 4.0 LE
Integrated Zigbee/802.15.4 module for mesh
networking.
2 x 10/100 Fast Ethernet (RJ-45).
Main port supports PoE (15.4W)
WiFi 802.11 b/g/n
Bluetooth 4.0 LE
Optional ZigBee module
Cellular Connectivity 3G or 4G LTE for select countries, US/Canada 4G LTE with AT&T or Verizon
Video & Audio DisplayPort 1.1 up to 2560×1600@60Hz
3.5mm Line Out/Line
In; RealTek codec
Serial Interfaces 2x RS-232/422/485.
GPIOs 8x channel, independently
programmable, DAC, ADC.
CAN Bus CAN2.0 A/B/FD 1Mbps (CAN2.0), 5Mbps (CAN-FD)
USB 1x USB 2.0, 1x USB 3.0
GNSS Integrated GPS
Sensors Accelerometer, Pressure, Temperature and Humidity
Power Supply 12V-57V wide DC input;
PoE compliant with IEEE 802.3.af standard up to 15.4 W, 48 V over existing Ethernet infrastructure, no
modifications required.
Dimensions 125 mm x 125 mm x 51 mm
Weight Around 1.1 kg

While all three models can run Ubuntu Core 16 and Windows 10 IoT Enterprise LTSB 2016, the latter requires a 32GB eMMC flash. Each gateway also comes with a Trusted Platform Module (TPM) 2.0, secure boot, BIOS password and I/O port disablement, and a fleet of gateway can be managed via Dell Edge Device Manager (EDM) cloud-based manageability suite (sold separately).

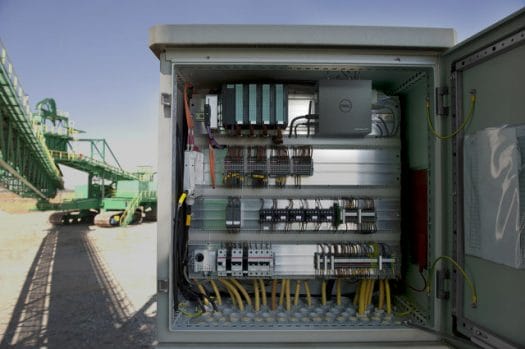

Gateway 30001 used for Mining Operations – Click to Enlarge

The gateway can be used for all sort of applications from mining management systems as shown above, to 18-wheelers, and revenue generating city fountains.

Dell Edge Gateway 3000 series will start selling this May for $399 and up. More details can be found on Dell website.
