Xiaomi AIoT Router AX3600 WiFi 6 Router Sells for $135

Orange Pi Development Boards

The first 802.11ax routers were unveiled a Computex 2018, before the WiFi Alliance decided to use a new consumer-friendly naming scheme and rename 802.11n to WiFi 4, 802.11ac to WiFi 5, and 802.11ax to WiFi 6, and then WiFi 6 routers launched later that year from companies such as ASUS and TP-Link with price starting at $350.

Prices have now come down with for example TP-Link WiFi 6 AX3000 smart WiFi router going for $142.99 plus shipping on Amazon, and Xiaomi has now launched their own WiFi 6 router with Xiaomi AIoT Router AX3600 offered for $135 including shipping on Aliexpress. Price may soon come down further as the router is sold for just 599 CNY,  or about $86 US, in China excluding shipping. Note that with the Coronavirus outbreak, shipping may be delayed.

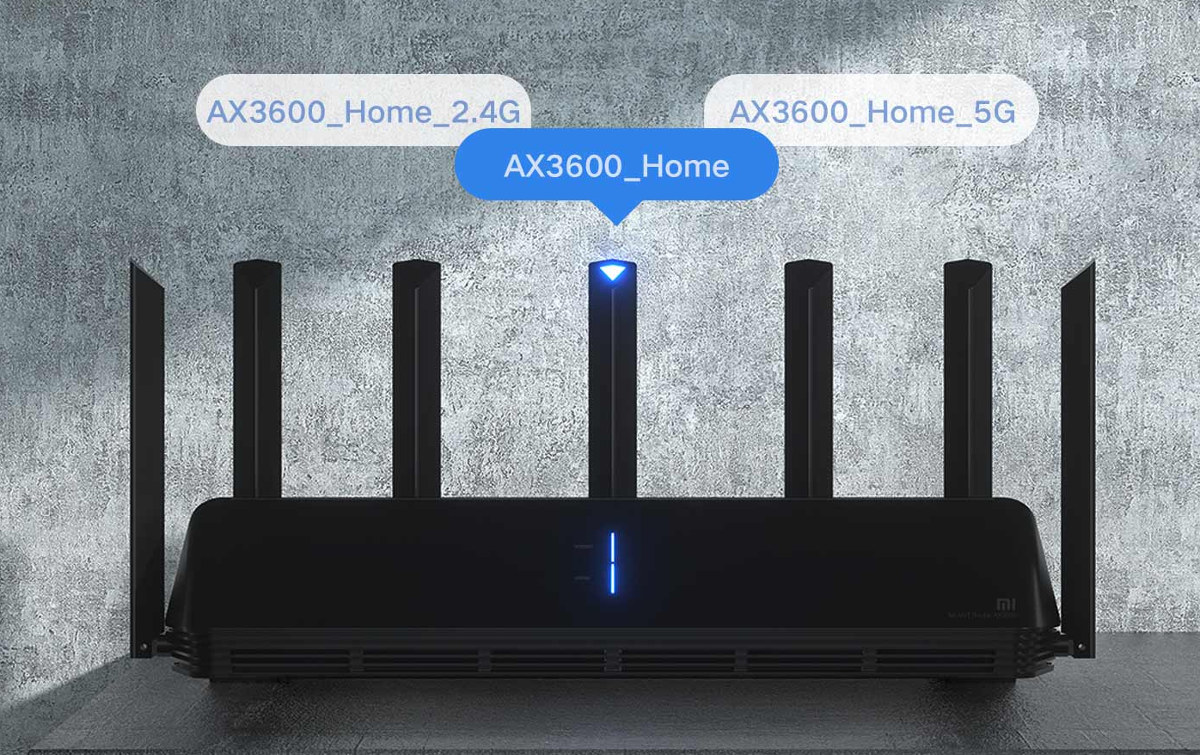

Xiaomi AIoT Router AX3600

Xiaomi AIoT Router AX3600 specifications:

  • SoC – Qualcomm IPQ8071A quad-core Arm Cortex-A53 @ 1.0 GHz CPU with dual-core NPU (Network Processing Unit) @ 1.7 GHz
  • System Memory – 512MB RAM
  • Storage – 256MB flash
  • Networking
    • Wireless
      • IEEE 802.11a/b/g/n/ac/ax
      • 2.4Hz
        • Wi-Fi 2×2 (802.11ax up to 574Mbps)
        • Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
      • 5GHz
        • Wi-Fi 4×4 (802.11ax up to 2402Mbps)
        • Channels: 36, 40, 44, 48, 149, 153, 157, 161, 165
      • Antennas – 6x external high-gain antennas + 1 external AIoT antenna
      • Security – WPA-PSK/WPA2-PSK, WPA3-SAE
    • Wired
      • 1x Gigabit Ethernet WAN port
      • 3x Gigabit Ethernet LAN port
  • Misc – 7x LED’s (1x SYSTEM, 1x INTERNET, 4x Ethernet status, 1xAIoT status ); 1x reset button
  • Power Supply – 12V/2A

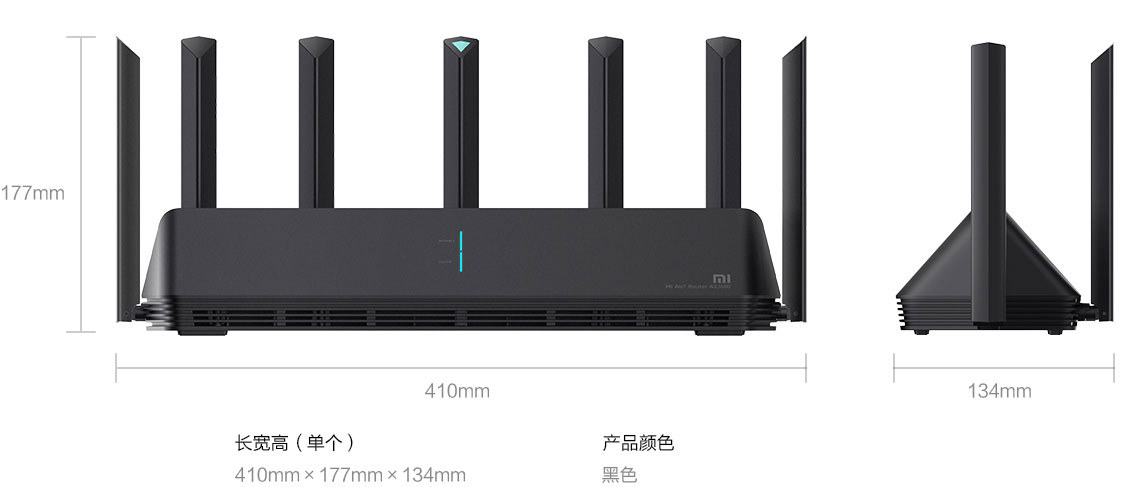

  • Dimensions – 410 x 177 x 134 mm including antennas as shown below.

Xiaomi WiFi 6 RouterThe router runs a customized version of OpenWrt called “MiWiFi ROM”, and can be configured via a web interface, or Mi Wi-Fi mobile app for Android or iOS. Apart from the higher throughput, another advantage of 802.11ax WiFi 6  is better handling of high-density scenarios with the average throughput per user improved by a factor of at least 4 times when many users are connected to the router.

Via AndroidPC.es

Support CNX Software - Donate via PayPal or become a Patron on Patreon

8
Leave a Reply

avatar
2 Comment threads
6 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
Milkboy007Jimmy PedersenS KAndreasL.Peter Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Bernstein
Guest
Bernstein

“runs a customized version of OpenWrt“ now that sounds very interesting! whats xiaomi‘s firmware update track record for routers? might be the cheapest router with a oem supported openwrt…

mitchell4you
Guest

Well… my own experienced is abit negative
having two routers (v1 and v3) and 3 extenders (all v2)
– the web GUI was never released in EN ( only CH ) by vendor
–you can use chrome translate (req internet connection)
-There router app requires a xiaomi account (needs internet connection for use)
-there extenders…trying to connect to a non xiaomi router is a really horrible story : requires another app..

best to wait for the reviews

Milkboy007
Guest
Milkboy007

i have the OG Mi router R1D, going on 4 years old and still running.
last update was Nov 2019.
my other mi routers, is also being updated regularly (at least 2x per year)

dont let the “based on openwrt” fool you.
it doesnt have the same feature set as generic openwrt.
Some of their router cant install generic openwrt.

Yes it is in chinese, but tutorial exist to help you set up, you dont need the app ,just browser is enough (it is only a required for mi extenders).

For general use, its the best bang for buck IMO.
after using a few times you dont really need translate anymore, since their UI dont rally change across devices.

L.Peter
Guest
L.Peter

I also own a xiaomi r3g, still the best for the price. You can use the android app for the basic setup tasks in english. After it is online you can use Chrome’s auto translation on the web admin interface, so chinese language isnt really a problem.

Andreas
Guest
Andreas

The ones that can run other firmware usually require soldering to flash via JTAG

Milkboy007
Guest
Milkboy007

Depends on the chipset, some just need devrom and a few command line to work.

S K
Guest
S K

Do we know more about the “AIoT” functionality (the 7th antenna)?

Jimmy Pedersen
Guest
Jimmy Pedersen

From: https://www.gizchina.com/2020/02/13/xiaomi-aiot-router-ax3600-announced-at-599-yuan-86/
…The independent AIoT antenna also adopts 2.4GHz + 5GHz dual-frequency design, which can provide 150Mbps for AIoT devices + 433Mbps
This router also has an independent AIoT smart antenna. When you open the Mijia app, you can automatically discover Xiaomi smart devices that are not initialized around you. So you can configure the network for new devices with one click, eliminating the need to manually add search devices and manually enter passwords.
