Beelink GS-King X Review – Part 1: Unboxing & Teardown

Beelink GS-King X is a 3-in-1 media center that works as an Android 9.0 TV box, a NAS with support for two 3.5″ hard drives, and a HiFi audio system with two ESS9018 audio DACs powering RCA and balanced audio outputs.

The company sent a review sample, and I’ll start by checking out the hardware and accessories, show how to install the hard drive(s), and attempt to tear down the device to check what it’s really made of.

There’s no mention of TV box nor Android on the package, just “STORAGE” and DTS plus Dolby Audio…

Beelink Storage Dolby & DTS
Click to Enlarge

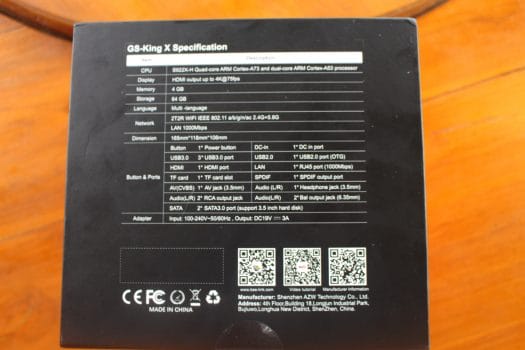

The bottom of the package lists the Beelink GS-King X specifications which we already discussed in our previous articles.

Beelink GS-King X specifications
Click to Enlarge

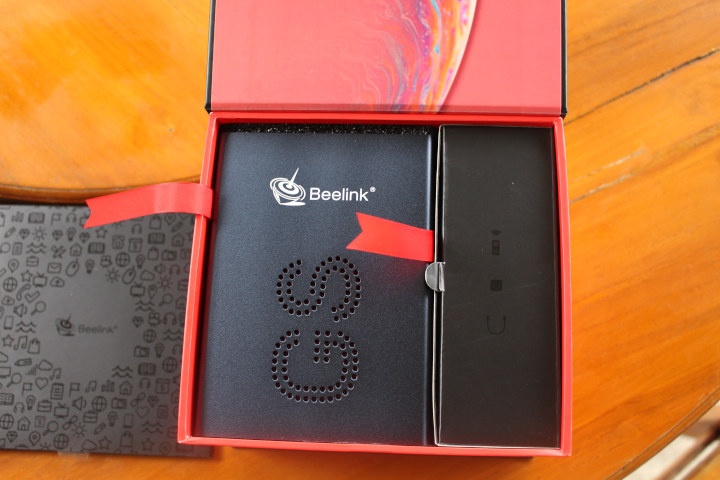

There’s a red ribbon that helps to take the device out of its package. I wish more companies would do this.
GS-King X NAS & Media Center Unboxing

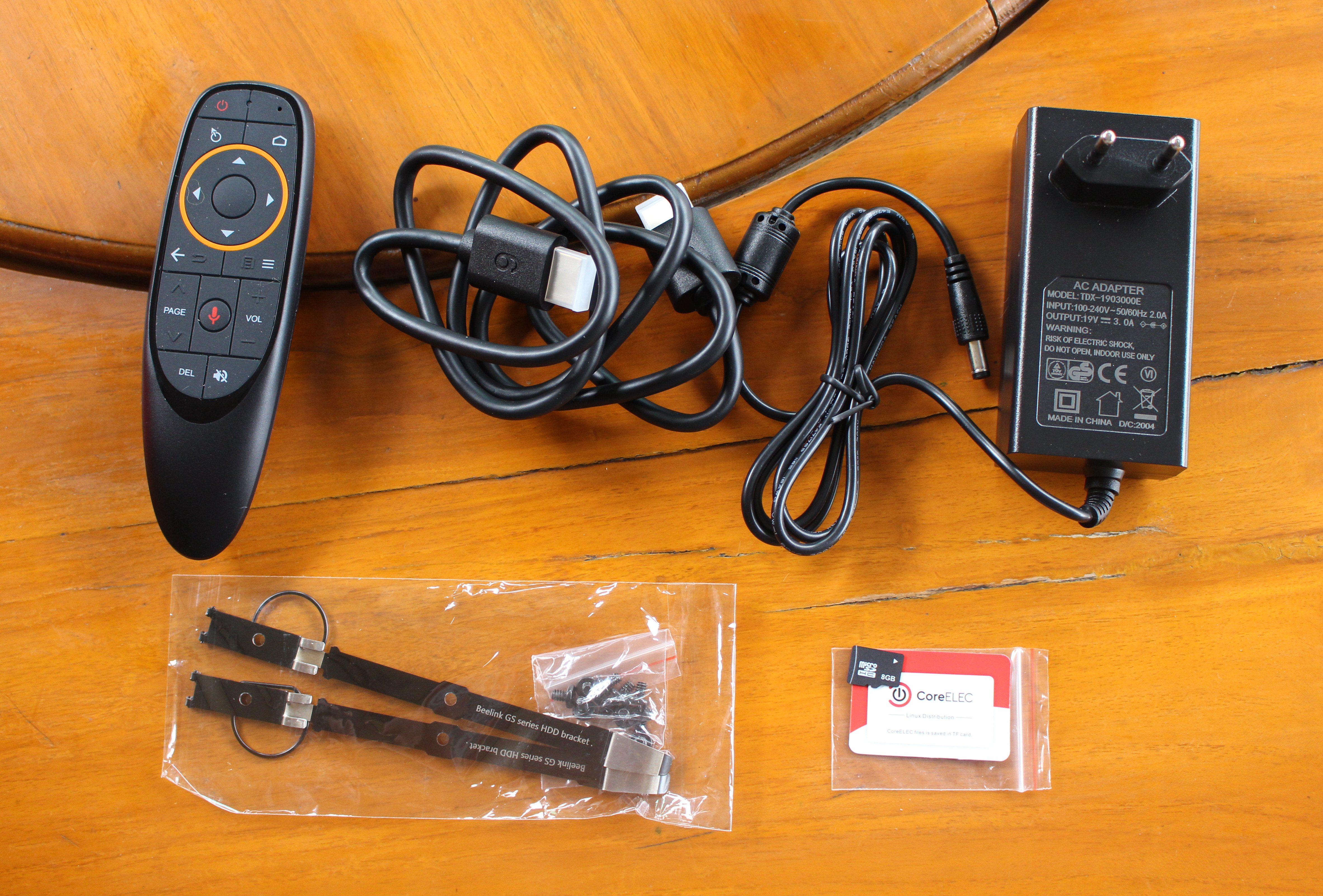

Accessories include the voice remote control, an HDMI cable, a 19V/3A power supply, HDD brackets with screws, as well as an 8GB MicroSD card pre-loaded with CoreELEC. There should also be a user manual, but Beelink removed it to avoid confusing officers at the customs department (that’s a country-specific thing…). There should also be four brackets in the package, but Beelink used two to install a drive into the review unit.

Beelink GS-King X Accessories
Click to Enlarge

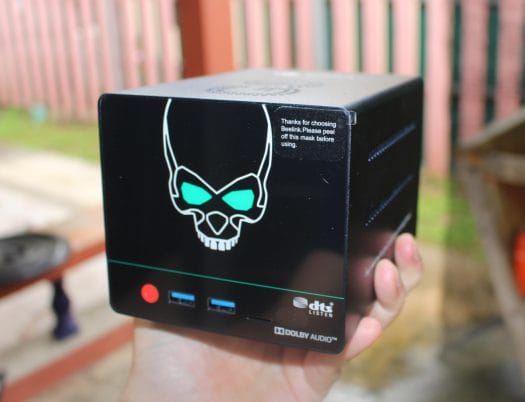

The device is actually a bit more compact than I expected from the first product photos.

Beelink GS-King X Review
Click to Enlarge

The front panel comes with a power button, two USB 2.0 ports, and a MicroSD card slot, as well as “eyes” LEDs.

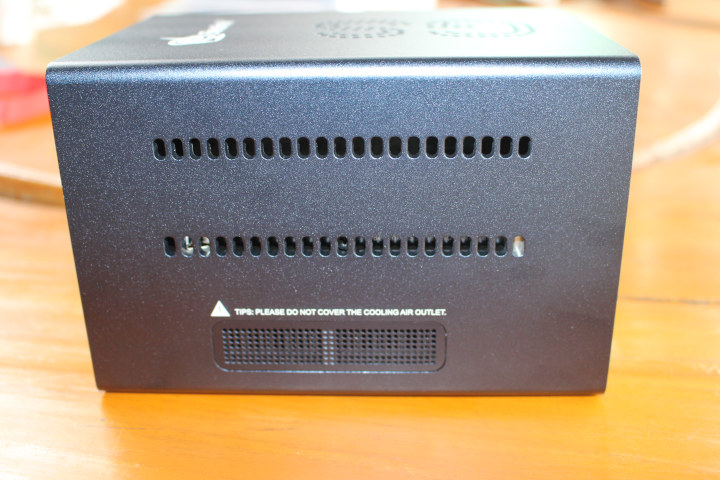

ventilation holes for fan
There are ventilation holes for the hard drives and a “cooling air outlet” for the fan place on top of the Amlogic S922X-H processor.

Beelink GS-King X Audio & Video Ports
Click to Enlarge

Most ports can be found on the rear panel with an “HiFI sound” section with a 3.5mm audio jack, RCA output and balanced output, as well as a “TV box” section with the power supply, HDMI and AV ports, two more USB 3.0 ports including on OTG port, S/PDIF output, and Gigabit Ethernet.

HDD “installation”

Beelink GS-King X does not normally come with any hard drives, so you’ll have to install one or two 3.5″ SATA drive(s) yourself. The company was kind enough to ship the device with one 4TB SATA drive they already installed.  So the installation procedure will be shown “in reserve”.

Beelink GS-King X HDD Installation
Click to Enlarge

First, remove the four screws holding the hard drive cover to the main unit, and pull the “sticker” to take the cover out, and access the SATA drive bay.

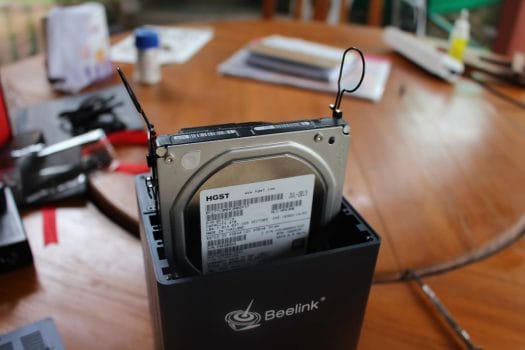

NAS HDDextraction
Click to Enlarge

Beelink managed to find a method that looks quite cheaper than traditional hard drive slot mechanisms. You’d just need to install two brackets, one on each side of the hard drive, with each bracket fitted with two metallic hoops allowing you to take out the drive when needed.

Beelink GS-King X HDD Brackets Installation
Click to Enlarge

Once you’ve installed two brackets, fold the black hoops, and push it down until it’s inserted into the SATA connector at the back of the unit. Place the cover back, and you’re done.

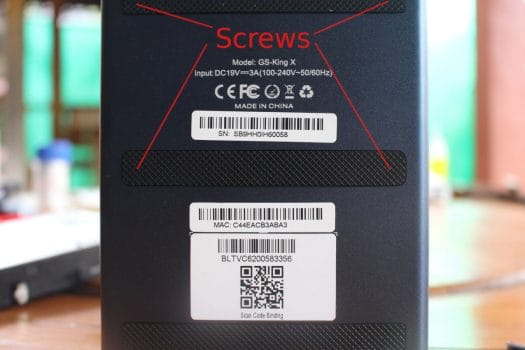

Let’s try to do a teardown. There are four screws holding the board hidden behind two of the three long rubber pads underneath the device.

Screw Locations
Click to Enlarge

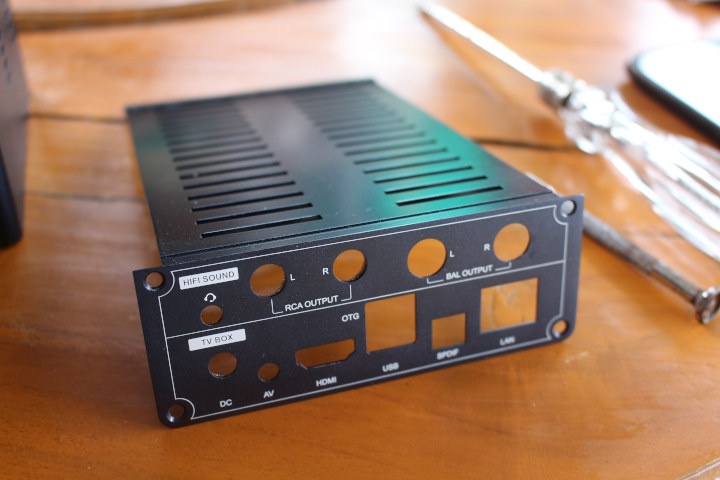

You’ll also need to loosen four screws to take out the lower part of the rear panel.
Beelink GS-King X Back Plate

There are two more screws holding the mainboard that would have required me to remove the plastic front panel cover. I did not feel I could do it without risking damaging the cover. I still managed to take some photos, albeit blurry.

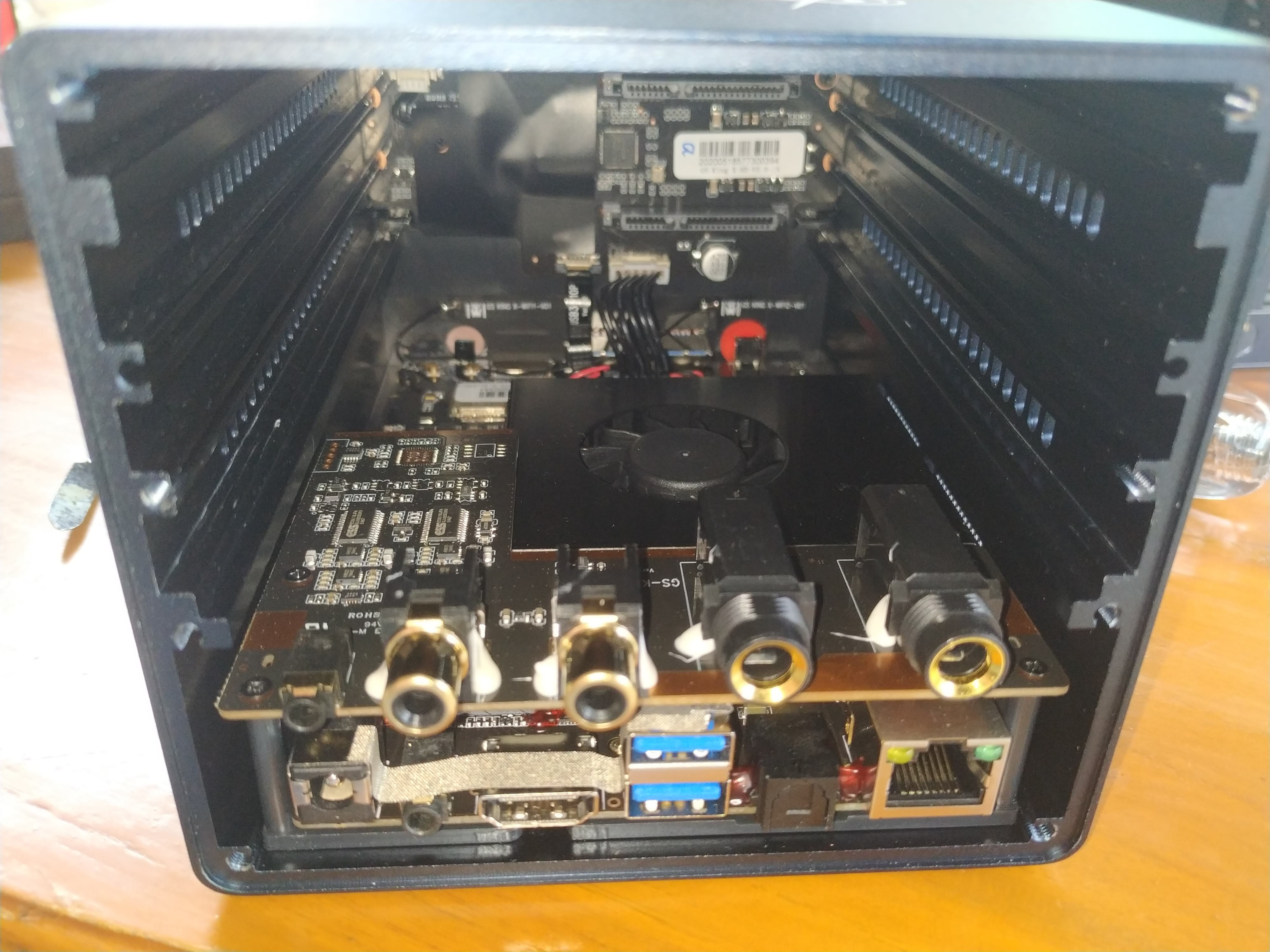

Beelink GS-King X teardown
Click to Enlarge

We can see the audio board with the two ESS audio codec, the fan covering the processor (and a few other components), as well as the SATA board at the back. There’s also a recovery button underneath the HDMI port.

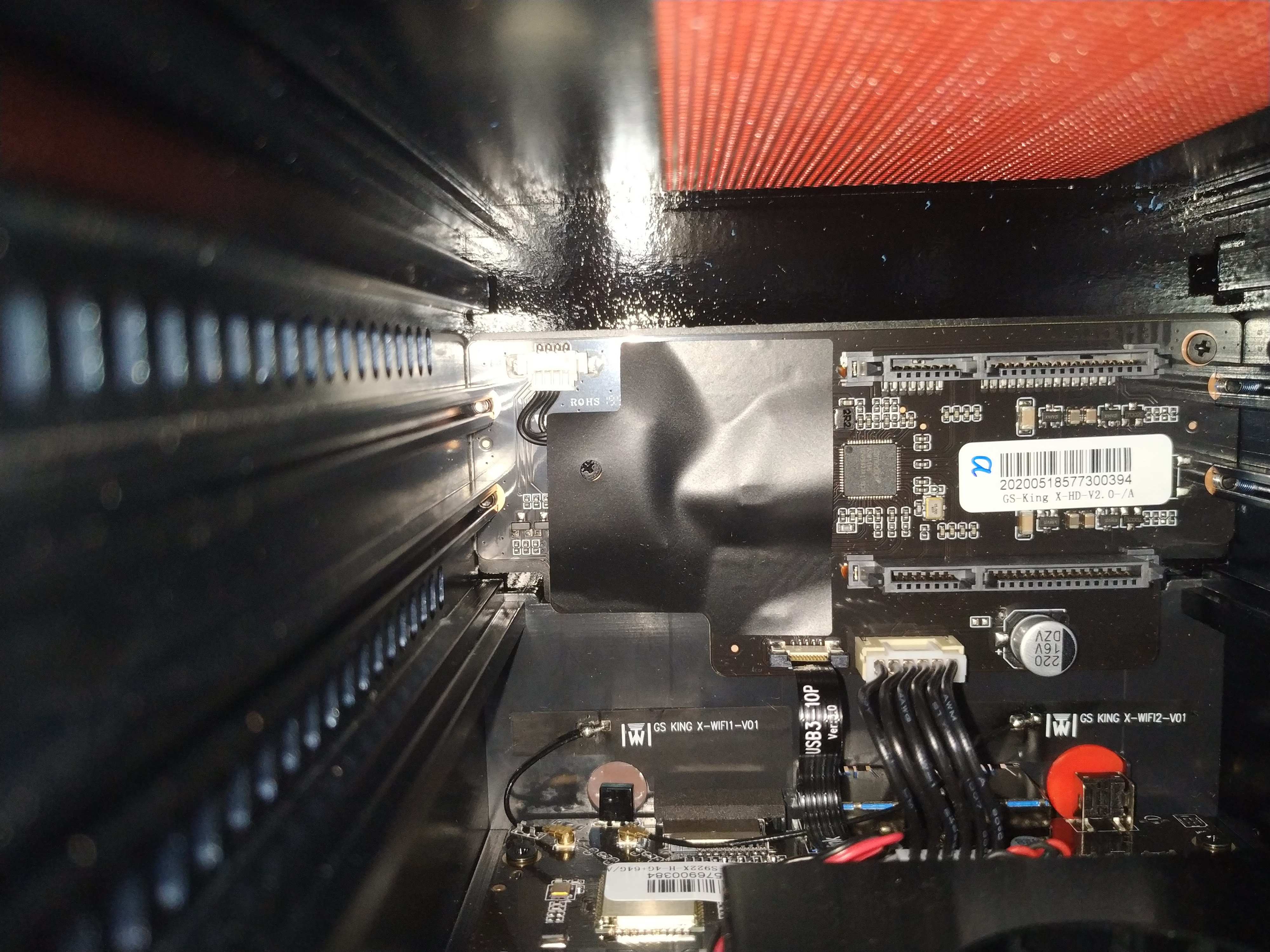

ASM1156 USB 3.0 to SATA Board & anti-dust filter
Click to Enlarge

We can see the two other black screw on the left and right side of the board still holding to the chassis, The red thing on the top if an anti-dust filter, and we can also have a closer look at the SATA board with two SATA connectors and based on ASMedia ASM1156 USB 3.0 to SATA controller with support for 5Gbps speed and UASP. Despite being launched many years ago, tHere’s no product page on ASMedia, but it may be close enough to ASM1153E chip, and I just found information from another product on Amazon.

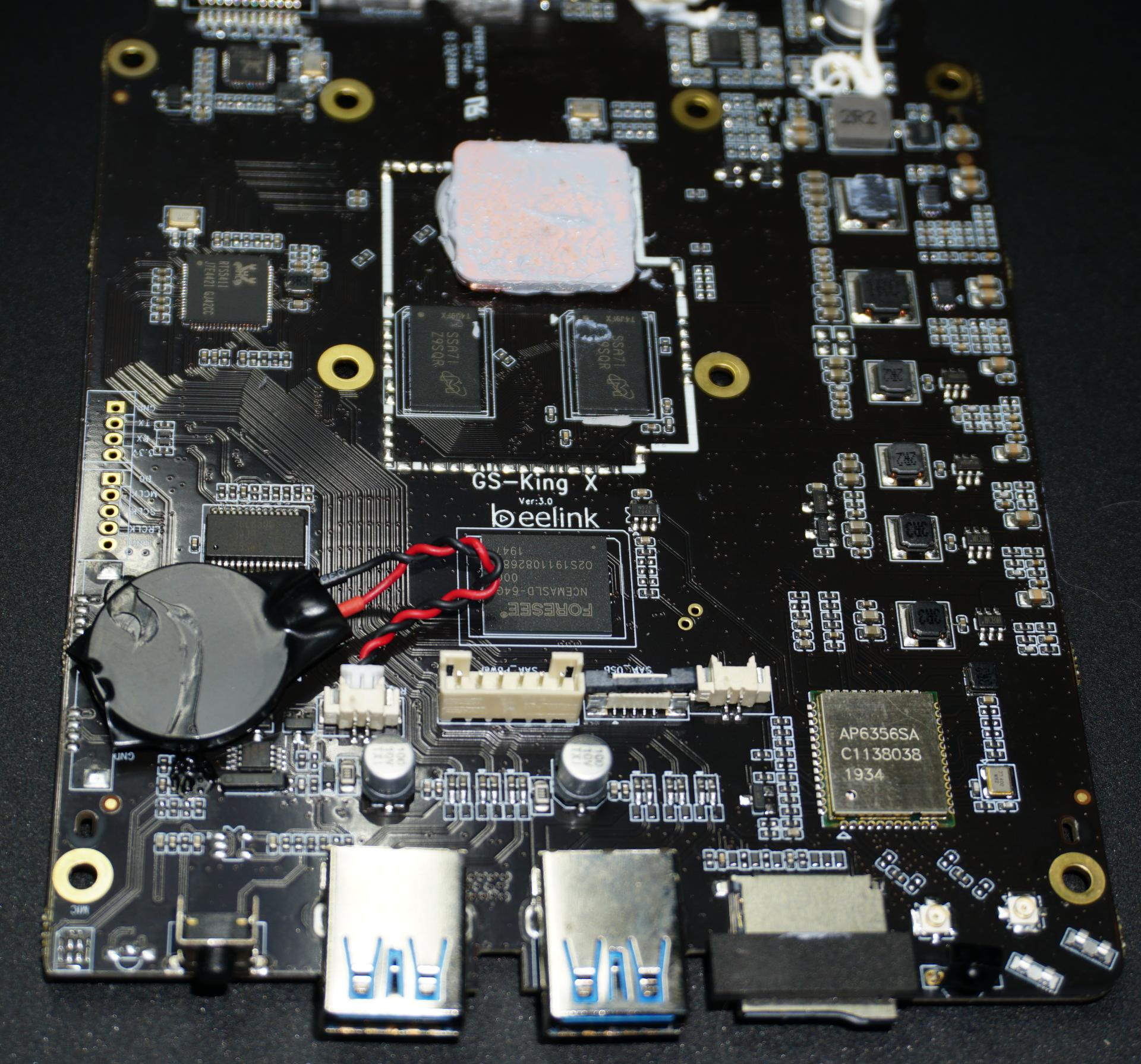

[Update: The company has provided some photos of the main board

Beelink GS-King X Board
Click to Enlarge

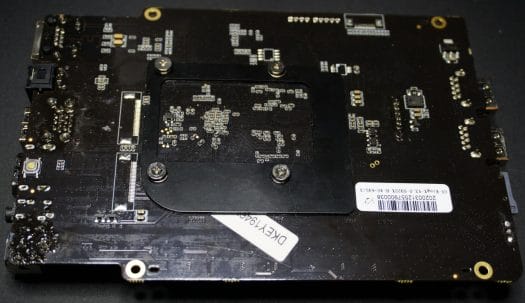

Beelink GS-King X Board Bottom
Click to Enlarge

]

I’d like to thank Beelink for sending GS-King X for review.  It is sold on GeekBuying for $269.99 plus shipping which brings the price to a little over $300 to the US. You’ll also find it on Aliexpress for $300 with free shipping, as well as GearBest for $289.99 plus shipping. The final price will vary from country to country due to different shipping fees, so it may be worthwhile to shop around.

Continue reading “Beelink GS-King X Review with Android 9 – Video & Audio Playback, NAS/File Server Function, and Benchmarks“.
