Pumpkin i500 SBC uses MediaTek i500 AIoT SoC for computer vision and AI Edge computing

MediaTek Rich IoT SDK v20.0 was released at the beginning of the year together with the announcement of Pumpkin i500 SBC with very few details except it would be powered by MediaTek i500 octa-core Cortex-A73/A55 processor and designed to support computer vision and AI Edge Computing.

Pumpkin i500 hardware evaluation kit was initially scheduled to launch in February 2020, but it took much longer, and Seeed Studio has only just listed the board for $299.00.

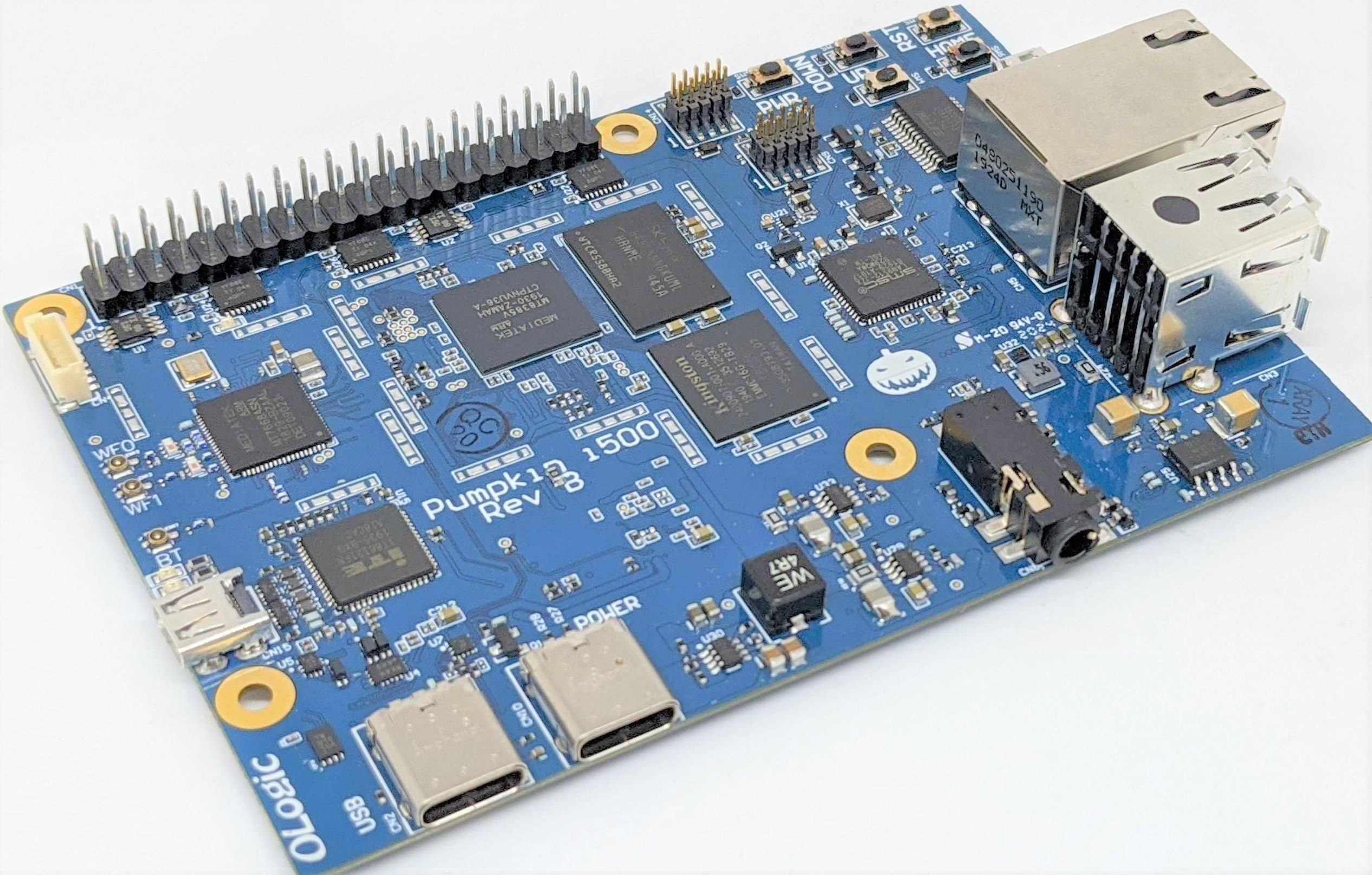

Pumpkin i500 SBC

We also now know the full specifications for Pumpkin i500 SBC:

  • SoC – MediaTek i500 octa-core processor with four Arm Cortex-A73 cores at up to 2.0 GHz and four Cortex-A53 cores, an Arm Mali-G72 MP3 GPU, and dual-core Tensilica Vision P6 DSP/AI accelerator @ 525 MHz
  • System Memory – 2GB LPDDR4
  • Storage – 16GB eMMC flash
  • Display – 4-lane MIPI DSI connector
  • Camera – Up to 25MP via MIPI CSI connector
  • Video
    • Decoding – 1080p60 H.264, H.265 / HEVC, MPEG-1/2/4 decoder,
    • Encoding – 1080p30 H.264
  • Audio
    • 3.5mm stereo headset jack
    • 2x digital PDM microphone connectors
    • 8-ch audio input / 8-ch audio output
  • Connectivity
    • 10/100M Ethernet (RJ45)
    • Wi-Fi 5 (802.11ac) 2×2 MIMO dual-band (2.4GHz, 5GHz) and Bluetooth 5 via MediaTek MT7668
  • USB – 1x USB-C OTG port, 2x USB-A host ports, micro USB port for debugging (serial console)
  • Expansion – 40-pin GPIO connector
  • Security – Secure Boot, TrustZone, TF-A, OP-TEE
  • Power Supply – 5V via 1x USB-C port
  • Dimensions – TBD

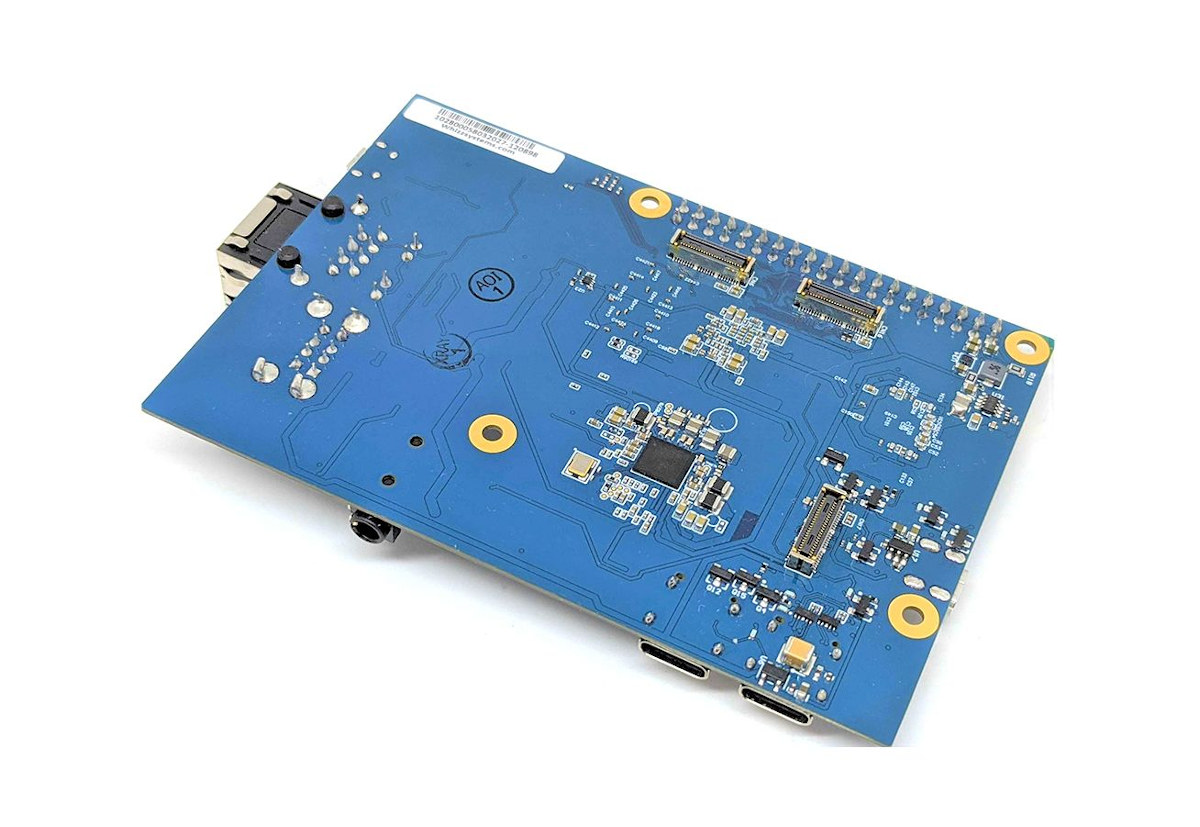

computer vision edge ai computing boardThe company provides Yocto Linux and Android 10 support for the board using Linux 5.4 kernel, as well as tools to support TensorFlow Lite and
Object detection (MobileNet + SSD) to enable the development of AI vision products such as control panels, smart hubs, points-of-sales, smart appliances, robots, etc.. . Software support is provided through the Pumpkin Software SDK that happens to be supported by BayLibre.

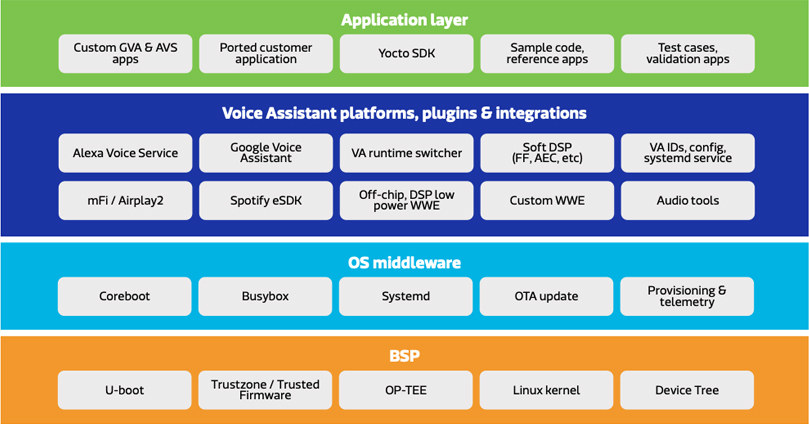

Pumpkin Software MediaTek Rich IOT Diagram
MediaTek Rich IoT SDK (Pumpkin Software) architecture

The Pumpkin i500 is also certified for Azure IoT Edge and qualified for AWS IoT Greengrass to enable the deployment of workloads to the Edge through standard containers.

What’s unclear is what cameras and displays are compatible with the board. Based on the $299 price (which I confirmed with Seeed Studio), you’d expect those to be included in the kit. Provided you represent a company with a commercial project in mind, the best may be to request a free demo from OLogic, the manufacturer of the board. They offer those on the product page which currently has limited information.
