OnLogic announces Factor 201 Raspberry Pi CM4 industrial PC, Factor 202 controller coming soon

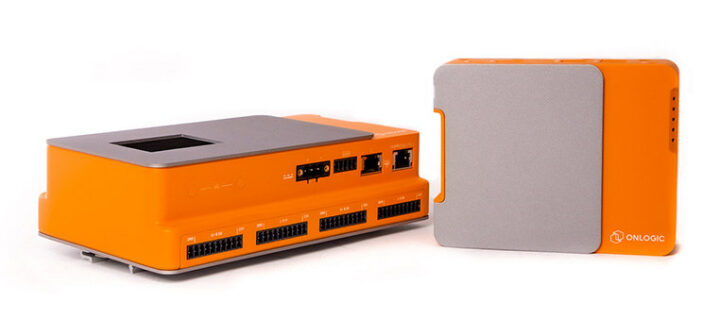

Onlogic Factor 201 & Factor 202
Onlogic Factor 202 (left) and Factor 201 (right)

OnLogic has announced the launch of the Factor 201, a compact fanless industrial PC based on Raspberry Pi CM4 (Compute Module 4) for Edge IoT applications, and is working on the Factor 202 industrial controller with onboard digital and analog I/Os (DIO & AIO), as well as a capacitive touchscreen.

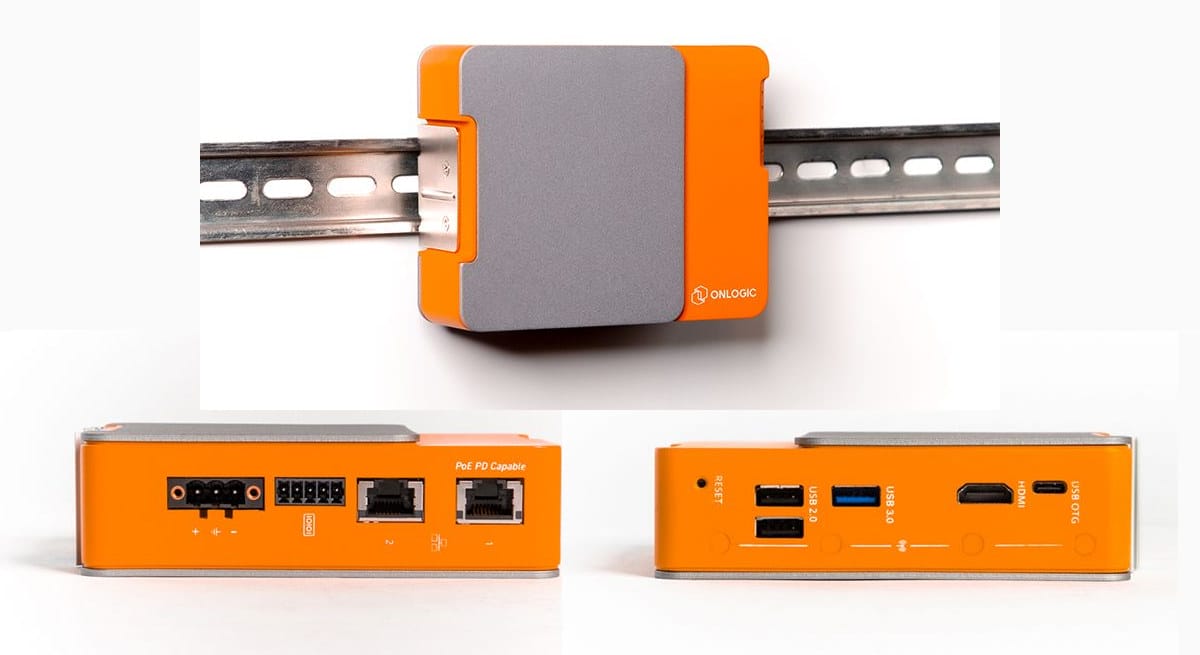

OnLogic Factor 201

Onlogic Factor 201

Specifications:

  • SoM – Raspberry Pi CM4 with Broadcom BCM2711 quad-core Arm Cortex-A72 processor @ up to 1.5 GHz, up to 8GB LPDDR4 RAM, up to 32GB eMMC flash
  • Additional storage – Optional M.2 SATA SSD (See Expansion section)
  • Video Output – HDMI port up to 4Kp60
  • Networking
    • 2x Gigabit Ethernet LAN (Optional PoE PD Input) via Realtek RTL8153 controller
    • Optional WiFi/Bluetooth module on Raspberry Pi CM4 module + 3x antenna holes
    • Optional 4G LTE wireless module via M.2 socket
  • USB – 1x USB 3.2 Gen 1 port, 2x USB 2.0 ports, 1x USB-C management port
  • Serial – 5-pin terminal block with RS-232/422/485
  • Expansion
    • 1x M.2 3042/3052 B-key socket (USB 3.0)
    • 1x M.2 2280 B-key socket (SATA)
  • Misc – Reset button
  • Power Supply
    • 12~24 VDC via 3-pin terminal block
    • Optional PoE PD 802.3at
  • Dimensions (WxHxD) – 102.5 x 129 x 38 mm (Aluminum enclosure)
  • Temperature Range – -20° ~ 60°C
  • Humidity – 10% – 95% (non-condensing)
  • Regulatory Information
    • FCC 47 CFR Part 15, CE
    • WEEE Directive (2002/96/EC)
    • ErP Directive (2009/125/EC)
    • Low Voltage Directive (2014/35/EU)
    • Electromagnetic Compatibility Directive (2014/30/EU)
    • Radio Equipment Directive (2014/53/EU) – For configurations with wireless transmitters
    • RoHS 2 (2011/65/EU), RoHS 3 (2015/863/EU), REACH
    • RCM VCCI-CISPR-32
    • EN 301 489-1 , EN 301 489-17
    • EN 55032, EN 55035
    • EN 62368-1, IEC 62368-1
    • UL 62368-1

The company offers DIN and wall mount options for the computer. The system runs Raspberry Pi OS or Ubuntu 20.04 with extra drivers, and software documentation can be found on Onlogic website.

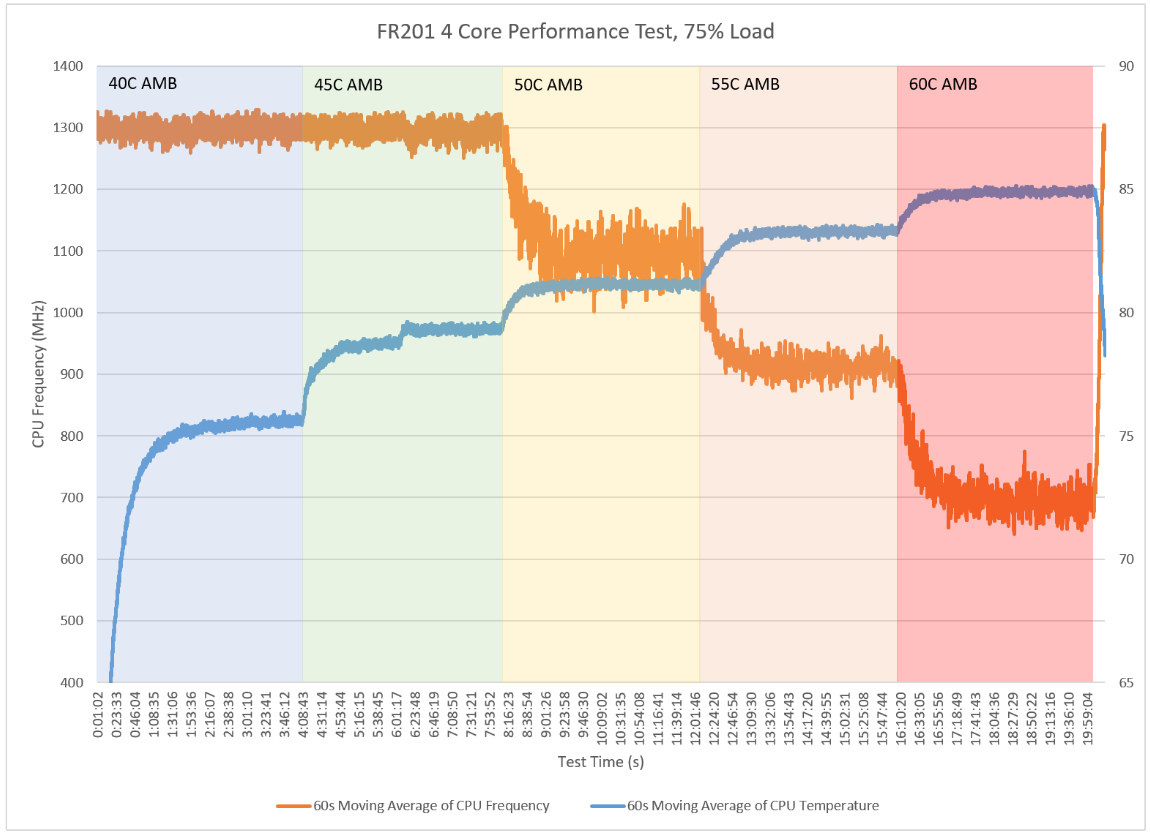

raspberry pi cm4 pc ambient temperature testing
Ambient temperature testing

Since the Factor 201 targets industrial environments, Onlogic tested the fanless device at higher ambient temperatures starting at 40°C, and increased the temperature by 5°C every four hours in a thermal chamber, while doing a stress test simulating a 75% load. At 40 and 45C the Broadcom BCM2711 processor runs at 1.3 GHz, this quickly drops to 1.1 GHz at 50°C, then 900 Mhz at 55°C, and finally 700 MHz at 60°C with the CPU itself getting really hot at 85°C.

OnLogic Factor 201 is available for pre-order with the price starting at $333 for a system with a Raspberry Pi Compute Module 4  with 2GB RAM, 8GB eMMC flash, WiFi, as well as a 64GB SATA SSD, and a 2-year warranty.

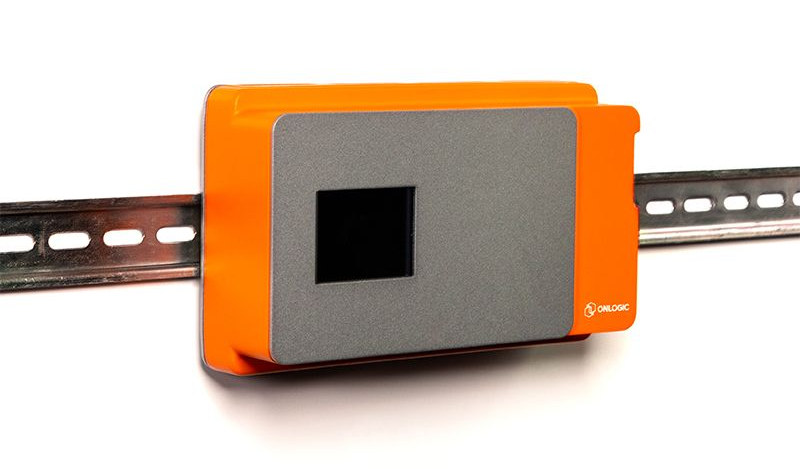

OnLogic Factor 202 industrial controller

OnLogic Factor 202 industrial controller

The controller expanded on the industrial PC with a small touchscreen display, digital and analog I/Os, and a larger form factor.

OnLogic Factor 202 specifications:

  • SoM – Raspberry Pi CM4 with Broadcom BCM2711 quad-core Arm Cortex-A72 processor @ up to 1.5 GHz, up to 8GB LPDDR4 RAM, up to 32GB eMMC flash
  • Additional storage – Optional M.2 SATA SSD (See Expansion section)
  • Display – 2.7-inch capacitive touchscreen
  • Video Output – HDMI port up to 4Kp60
  • Networking
    • 2x Gigabit Ethernet LAN (Optional PoE PD Input) via Realtek RTL8153 controller
    • Optional WiFi/Bluetooth module on Raspberry Pi CM4 module + 3x antenna holes
    • Optional 4G LTE wireless module via M.2 socket
  • USB – 1x USB 3.2 Gen 1 port, 2x USB 2.0 ports, 1x USB-C management port
  • Serial – 5-pin terminal block with RS-232/422/485
  • Expansion
    • 1x M.2 3042/3052 B-key socket (USB 3.0)
    • 1x M.2 2280 B-key socket (SATA)
    • 16x digital inputs
    • 16x digital outputs
    • 4x analog inputs
    • 2x analog outputs
  • Misc – Reset button
  • Power Supply
    • 12~24 VDC via 3-pin terminal block
    • Optional PoE PD 802.3at
  • Dimensions (WxHxD) – 201 x 121 x 54mm (Aluminum enclosure)
  • Temperature Range – -20° ~ 60°C
  • Humidity – 10% – 95% (non-condensing)

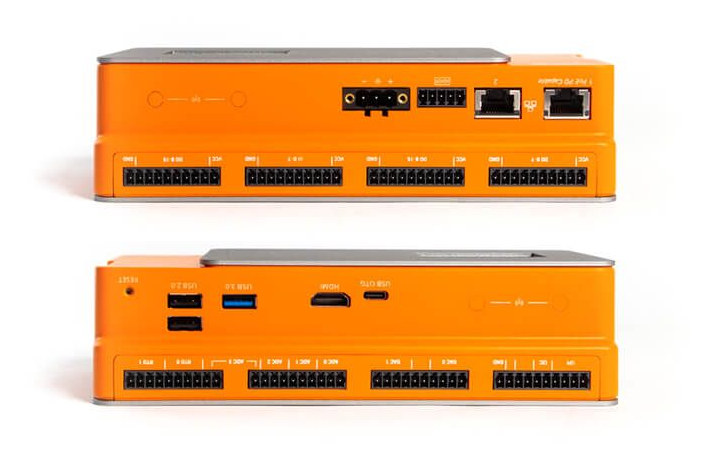

Raspberry Pi CM4 industrial controllerAt the time of writing, we do not know when it will be available, and at what price, but we can safely assume $400+. More details may be found on the product page.

Via Phoronix
