Orbbec Femto ToF camera enables accurate 3D object and scene capture

We’ve written a couple of articles about Time-of-Flight (ToF) technology in recent weeks notably about ranging sensors such as VL53L8 dToF sensor and Toppan hybrid ToF sensor, but Orbbec has used the technology in their Femto camera line designed to capture 3D objects and scenes.

The Femto 3D cameras support a depth-of-field (DoF) from 0.2 to 5 meters, multi-camera synchronization, can be used in complete darkness, and are equipped with a 6-Axis IMU tracking sensor for motion tracking. The ToF cameras should find their way into applications for healthcare, warehousing/shipping, autonomous robotics, augmented reality, and other sectors.

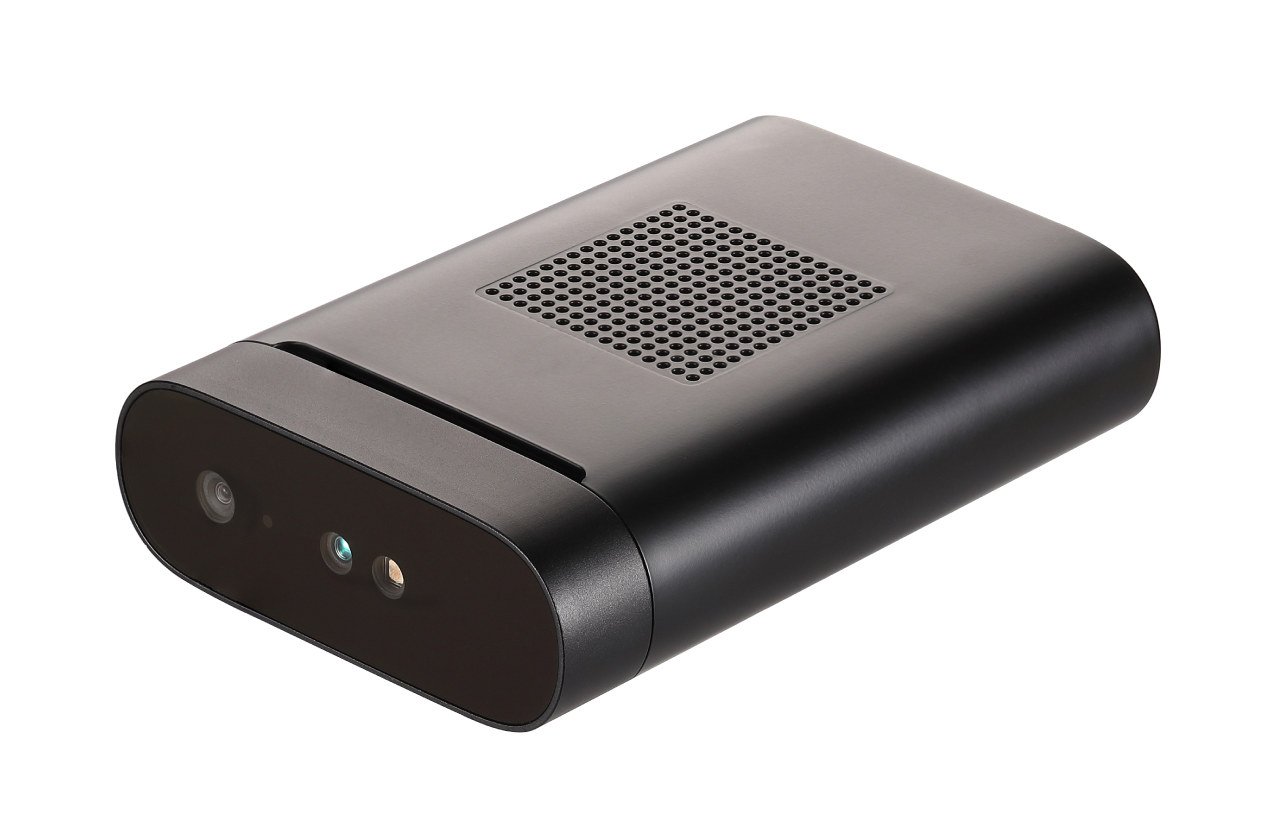

Orbbec Femto ToF depth camera
Femto camera

Three models are available with the following highlights:

  • Femto – 0.2 to 5 meters optical range with a depth resolution of 640 x 480 @ 30fps, and 5.8W power consumption. 99.4 x 68 x 25mm form factor.
  • Femto W – Wide depth field of view (H90, V74) and color field of view (H98.6, V64.2) designed for high accuracy identification at a closer range (0.2 to 2.5 meters).
  • Femto Live – 0.5 to 3 meters range with a color resolution of up to 3840 x 2160 @ 30fps.

For reference, let’s have a closer look at the Femto specifications in particular:

  • Range – 0.2 to 5m
  • RGB image resolution – Up to 1920 x 1080 @ 30fps
  • Depth image resolution – 640 x 480 @ 30fps
  • RGB FOV – H 86.2°, V 55.2°, D 94.2°
  • Depth FOV – H 64.6°, V 50.8, D 78°
  • Sensor – 6-axis IMU
  • Host interface – USB 3.0 Type-C port
  • Power Supply – Via USB Type C Port
  • Power Consumption – Average 5.8W; Peak 9.3W
  • Dimensions – 98.3 x 65.5 x 21mm
  • Weight – 200g +/- 5g
  • Temperature Range – 0 to 40°C

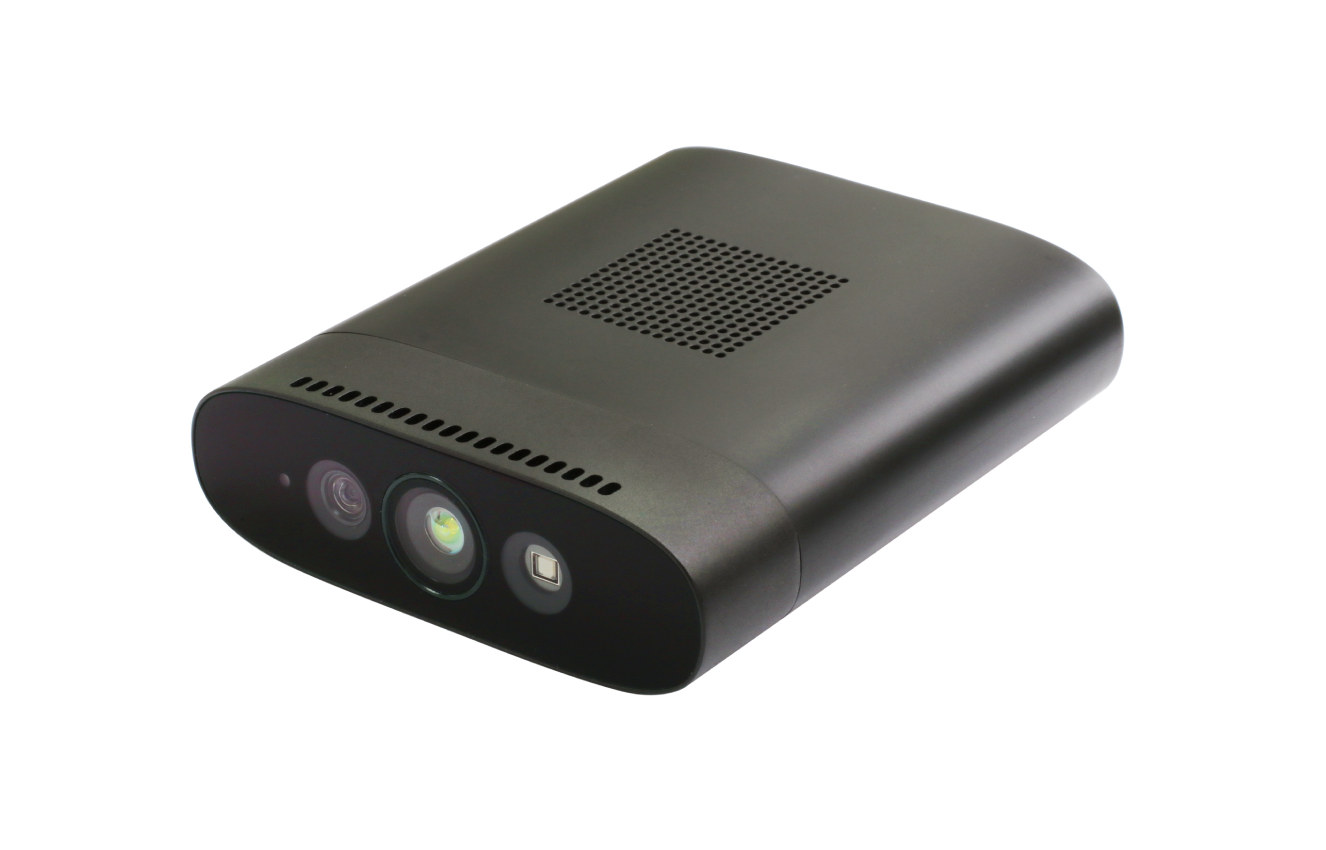

Orbbec Femto W ToF 3D camera
Femto W



The camera supports the same Orbbec SDK as used with earlier models such as the Persee+ 3D AI camera and that works with hosts running Android, Linux, or Windows. Femto 3D cameras should offer higher accuracy and lower latency than earlier structured light cameras from the company, and be especially useful to track human forms, measure small live objects, and implement obstacle avoidance and/or gesture recognition algorithms.

More details about the Femto and Femto W cameras can be found on the product page, but the company has yet to publish detailed information about the 4K-capable Femto Live model.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
Willy
Willy
1 month ago

I don’t understand what the depth resolution is. It’s said there’s a range of 0.2 to 5 meters, and the 640×480 makes me think it’s the resolution of the depth image. But that doesn’t tell us what the depth resolution is. If it outputs 0 for 0.2m, 1 for 5m and undefined between the two, it’s useless. If it’s 5-bit with 20cm resolution, it’s probably not very useful for a wide variety of applications. If it’s millimeter resolution, it’s certainly way more useful and technically impressive to me.

Ofcanon
1 month ago

Looks just like the Azure Kinects. Only the Femto Live looks like an upgrade from one.
