Banana Pi BPI-W3 – An RK3588 SBC with dual Gigabit Ethernet, SATA, PCIe x4 slot

Banana Pi BPI-W3 is yet another upcoming Rockchip RK3588 SBC but with a different set of features, notably the presence of two Gigabit Ethernet ports, a PCIe x4 slot, and a SATA port, besides to more common dual HDMI output, HDMI input, USB 2.0/3.0 ports, etc…

The board layout is somewhat similar to the company’s BPI-RK3588 SBC but with a system-on-module, and instead, the Rockchip RK3588 processor is soldered directly onto the board together with 8GB LPDDR4, and 32GB eMMC flash.

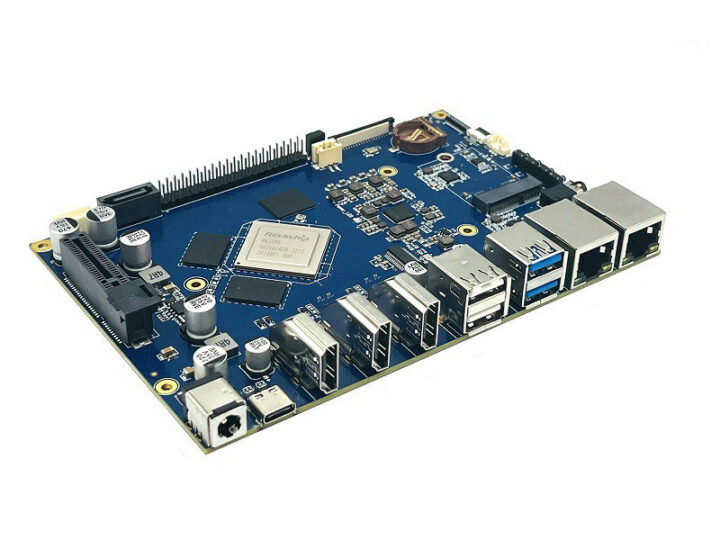

Banana Pi BPI-W3Banana Pi BPI-W3 specifications (preliminary):

  • SoC- Rockchip RK3588 octa-core processor with 4x Cortex-A76 cores @ up to 2.4 GHz (YMMV), 4x Cortex-A55 cores @ 1.8 GHz, an Arm Mali G610MC4 GPU, a 6 TOPS NPU, 8K 10-bit decoder, 8K encoder
  • System Memory – 8GB LPDDR4
  • Storage – 32GB eMMC flash, SATA III port
  • Video
    • Output – 2x HDMI 2.1 ports up to 8Kp60
    • Input – 1x HDMI 2.0 input port up to 4Kp60
  • Audio – 3.5mm audio jack, digital audio via HDMI
  • Networking
    • 2x Gigabit Ethernet RJ45 ports
    • Optional WiFi and Bluetooth via M.2 socket
  • USB – 2x USB 3.0 ports, 2x USB 2.0 ports, USB Type-C port (no details provided)
  • Expansion
    • 40-pin GPIO header with up to 28x GPIOs, UART, I2C, SPI, PWM, I2S
    • PCIe x4 slot
  • Misc – 4x buttons, RTC + battery
  • Power Supply – 12V/2A via DC jack
  • Dimensions – 148 x 101 mm
  • Temperature Range – 0°C to 80°C

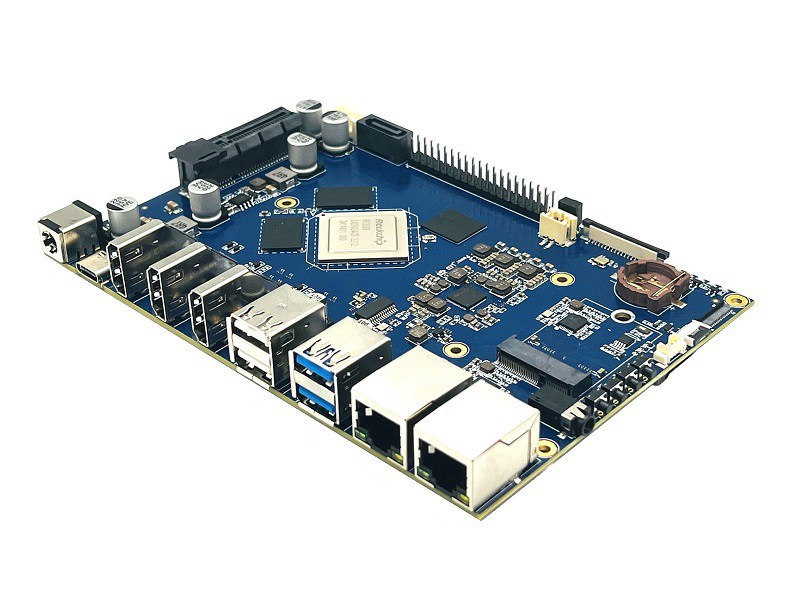

Rockchip RK3588 board dual Ethernet SATA PCIe
I can also see other connectors that could be for MIPI CSI or DSI, and others, but it’s not documented, so hard to say for sure. Banana Pi says “OpenWrt, Android 12, and Linux” will be supported. The Banana Pi BPI-W3 should eventually sell on Aliexpress, but right now, the company asks potential customers to contact them if interested. I doubt the board is ready, as the Wiki is light on details with no schematics, no Android or Linux images, and I even had to derive parts of the specifications from the board’s photos.

Thanks to theguyuk for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Notify of
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
Stuart Naylor
1 year ago

Never been a fan of Banana Pi, but do like the layout.

1 year ago

The banana boys went so far the last decade that I wouldn’t consider to buy anything with a banana on it anymore…

1 year ago

Basically my dream Nas/Kodi system. Let’s hope they actually care for the Linux distro.. I wonder where the SATA power connector is located… Is that the one in front of the pcie connector? Seems like a bad choos choice.. is pcie and SATA muxed?

1 year ago

They have a discussion thread on their forum. You might find answers there.

1 year ago

The power connector is on the left of the SATA port.
The capacitor in front of the x4 slot is going to be an issue though.
