GEEKOM AS 6 review – Part 2: An AMD Ryzen 9 6900HX mini PC tested with Windows 11 Pro

We’ve previously checked out the hardware of the GEEKOM AS 6 mini PC, the retail version of the ASUS PN53, using an AMD Ryzen 9 6900HX CPU with unboxing, teardown, and the first boot in the first part of the review. We’ve now spent more time with Windows 11 Pro on GEEKOM AS 6 for a thorough review, it’s one of the fastest mini PCs we’ve tested so far, and there are only a few downsides as we’ll see in the second part of the review.

GEEKOM AS 6 Windows 11 Pro

Software overview and features testing

Our GEEKOM AS 6 sample shipped with Windows 11 Pro 21H2 build 22000.1281, and Windows system information confirms we have a system with a 3.3 GHz AMD Ryzen 9 6900HX CPU and 32GB RAM.

GEEKOM AS 6 PN53 MIni PC spec

If we look at more details, we can confirm the reported specifications match the advertised ones with an 8-core/16-thread CPU, an ASUS PN53 motherboard, etc…

GEEKOM CPU HWiNFo64

GPU-Z provides more details about the AMD Radeon 600M series GPU found in the AMD SoC.

GEEKOM AS 6 TechPowerUp GPU Z 1

The PL1 and PL2 power limits are set to 54W and 65W respectively.

GEEKOM AS 6 AMD Ryzen 9 6900HX PL1 PL2 power limits

The mini PC has two 16 GB Crucial memory sticks clocked at 4800 MHz in a dual-channel configuration.

GEEKOM AS 6 memory HWiNFO64 GEEKOM AS 6 memory RAM 1



A look at the Network adapters in the Device Manager…

GEECOM AS 6 Network Adapters

shows we have a Bluetooth device, a WiFi 6E module (MediaTek MT7922), and a Realtek Gaming 2.5 GbE Family Controller.

HWiNFO64 provides further details about the RTL8125 controller and WiFI 6E module.

RTL8125 controller Windows 11 Pro GEEKOM AS 6 WiFi6 HWiNFo64

We tested the Bluetooth 5.2 connection by transferring some files with a smartphone.

GEEKOM AS 6 test bluetooth 5.2

We also double-check the speed of the Mini PC’s 5 USB 3.2 Gen1 ports as well as 2 USB Type-C ports using ORICO M234C3-U4 M.2 NVMe SSD enclosure.

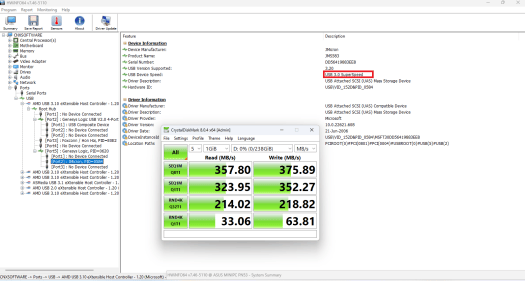

GEEKOM AS 6 test USB 1
Front USB 3.2 port (1)

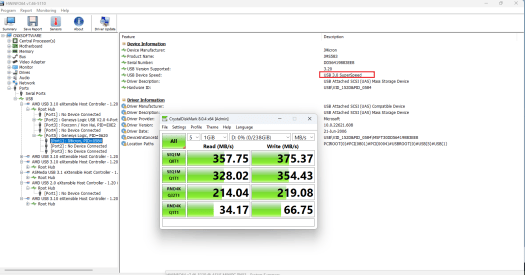

GEEKOM AS 6 test USB 2
Front USB 3.2 port (2)

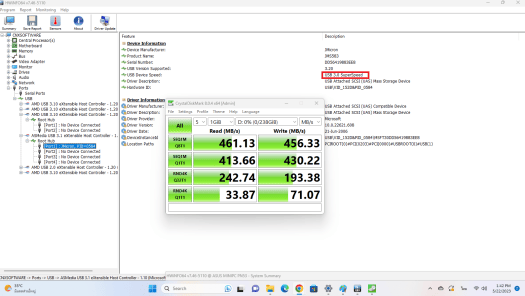

GEEKOM AS 6 test USB 3 1
Rear USB 3.2 port (3)

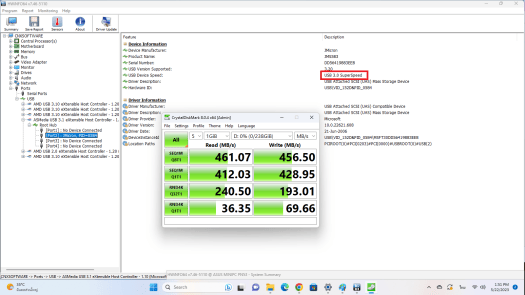

GEEKOM AS 6 test USB 4
Rear USB 3.2 port (4)

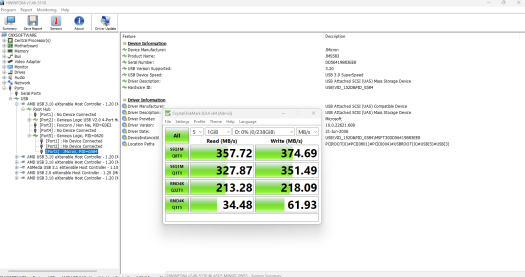

GEEKOM AS 6 test USB 5
Front USB 3.2 port (5)

All five USB ports are USB 3.0 SuperSpeed ports at 5 Gbps, but for some reason, the rear ports look to be faster than the front ones.

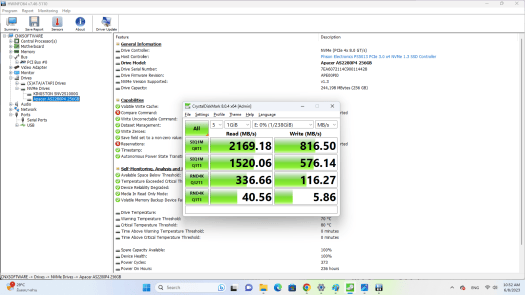

USB-C rear panel NVMe
USB-C/Thunderbolt port on the rear panel

If we connect the ORICO NVMe enclosure to the USB Type-C ports on the rear or front panels, it’s not detected as a USB mass storage device anymore, but instead, an NVMe drive connected over PCIe x4 (8.0 GT/s), and the read and write speeds become limited by Apacer SSD we are using in the enclosure.

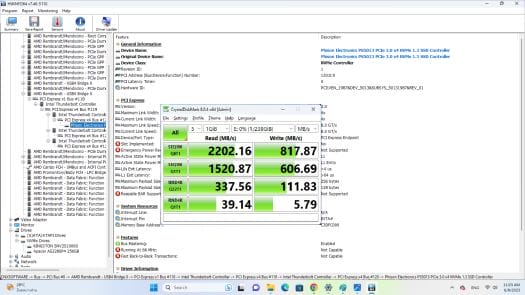

GEEKOM AS 6 USB C Front NVMe SSD
USB-C/Thunderbolt port on the front panel

We successfully tested a dual monitor setup using the two HDMI ports,

GEEKOM AS 6 dual HDMI display

and using one HDMI port and a MINIX NEO Storage Plus USB-C Dock connected to the front-panel USB-C port.

GEEKOM AS 6 dual video output USB4 Type C

We also opened the mini PC again to install a 2.5-inch Western Digital hard drive secured with three screws.

HDD 2.5

HDD 2.5 screw 1

The drive shows up as WDC WD10SPZX-22Z10T1 in the Device Manager…

sata drive 2.5

… and a quick test showed about 129MB/s read performance as expected for this specific drive.

GEEKOM AS 6 HDD 1TB

GEEKOM AS 6 benchmarks on Windows 11 Pro

First, we set the Power mode to “Best performance” and ran several benchmarks to test the performance on the mini PC under Windows.

The storage performance of M.2 NVMe was

GEEKOM AS 6 test drive NVMe SSD

Overall Windows performance:

GEEKOM AS 6 PCMark 10 GEEKOM AS 6 3DMark benchmark GEEKOM AS 6 PassMark PerformanceTest

CPU performance was tested with Cinebench R23:

GEECOM AS 6 Cinebench R23

We tested the integrated Radeon 600M series GPU with Unigine Heaven Benchmark 4.0.

Unigine Heaven Benchmark 4.0 GEEKOM AS 6

and played 4K and 8K videos on YouTube in the Chrome browser.

GEEKOM AS 6 test youtube 4K

The 4K video played smoothly, and there was only one dropped frame out of 12,179 frames when we played the video for over 6 minutes.

AMD Ryzen 9 6900HX YouTube 8K test

and the result was almost equally good at 8K resolution with 18 dropped frames out of 11,721 frames played.

Network performance

We tested both 2.5GbE and WiFi 6 using iperf3. This test was done using a Xiaomi AX6000 WiFi 6 router, a 2.5GbE TP-Link switch, and UP Xtreme i11 Edge Kit mini PC.

GEEKOM AS 6 Ethernet

2.5GbE networking works are expected with 2.37 Gbps measured in both directions:


MT7922 WiFi 6 performance

5GHz WiFi 6 performance is not too bad either with 710 Mbps upload speed, and 784 Mbps download speed:

Thermal performance

CPU temperature under 3DMark’s Fire Strike benchmark is 93.5°C, going up to 95.5°C maximum.

GEEKOM AS 6 CPU temperature

The temperature is around 49.6°C, going up to 72.6°C with typical usage.

Temperature CPU

GEEKOM AS 6 fan noise

GEEKOM AS 6 has a fan that is basically inaudible at idle and under light loads, but under more demanding loads such as Cinebench R23 multicore, the fans are quite loud and can be heard clearly even from a few meters away from the device. We’ve measured the noise with a sound level meter placed about 5cm from the top of the case:

  • Idle: 36.5 dBA
  • Under load: 53 dBA

Note the sound level meter measures the room at 35 dBA when everything is quiet.

Power Consumption of GEEKOM AS 6

We’ve also measured the power consumption with a wall power motor as follows

  • Power Off – 0.6 – 1.0W
  • Booting – 56.9 – 74.5 watts
  • Idle – 12.0 – 15.5 W (Windows)
  • CPU stressed – 69.7 – 75.2 watts (Windows ‘cinebench’)
  • Video playback – 24.5 – 30.0W (Youtube in Chrome 4K60fps)

Conclusion

The GEEKOM AS 6 (Ryzen 9 6900HX) is a mini PC with good build quality, excellent performance, and everything we’ve tested worked without tweaks. With plenty of RAM (32GB by default), fast NVMe storage, and plenty of ports, it can be used for all sorts of tasks from watching movies to playing games, office work, or even video editing. The two main downsides are the fan noise under heavy loads and the relatively high power consumption of this type of system. We’ll now switch our testing to Ubuntu 22.04 after resizing the Windows partition protected by Bitlocker to install the Linux operating system on the mini PC and report our experience in detail in the third part of the review.

We’d like to thank GEEKOM company for sending us the AS 6 mini PC for review. The AS 6 model reviewed here is now available on GEEKOM’s online store for $709 with the coupon code as640a.

Continue reading “GEEKOM AS 6 mini PC review with Ubuntu 22.04 Linux

This review is a translation – with some further insights – of the original review initially published on CNX Software Thailand by Suthinee Kerdkaew
