Remi Pi is a compact, low-cost SBC powered by a Renesas RZ/G2L Cortex-A55/M33 SoC

MYiR Tech Remi Pi is a low-cost SBC based on the company’s MYC-YG2LX CPU module featuring a Renesas RZ/G2L Arm Cortex-A55/M33 processor, 1GB RAM,  8GB eMMC flash, and plenty of ports and interfaces.

Those include two gigabit Ethernet ports, a wireless module with dual-band WiFi 4 and Bluetooth 4.2 connectivity, HDMI and LVDS display interfaces, MIPI CSI camera input, a 3.5mm audio jack, a few USB ports, and a 40-pin GPIO header compatible with the one on the popular Raspberry Pi SBCs.

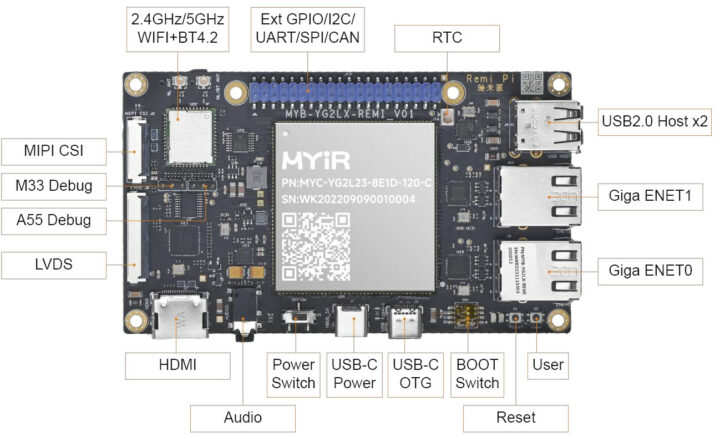

Remi Pi SBC

Remi Pi specifications:

  • System-on-Module – MYiR MYC-YG2L23 module with
    • SoC – Renesas RZ/G2L processor (R9A07G044L23GBG)
      • CPU
        • 1.2 GHz dual-core Arm Cortex-A55 processor
        • 200 MHz Arm Cortex-M33 real-time core
      • GPU – Arm Mali-G31 3D GPU
      • VPU – H.264 decoding/encoding
    • System Memory – 1GB DDR4
    • Storage – 8GB eMMC flash, 32KB EEPROM
    • PMIC – Renesas RAA215300 power management IC
  • Storage – MicroSD card slot
  • Display interfaces
    • HDMI video output
    • LVDS connector with support for MYIR’s MY-LVDS070C 7-inch LCD Module
  • Camera I/F – MIPI-CSI camera interface with support for MYIR’s MY-CAM003M MIPI camera module
  • Audio – 3.5mm audio input and output jack
  • Networking
    • 2x gigabit Ethernet RJ45 ports via YT8531 Ethernet transceiver
    • 2.4GHz/5GHz WiFi 4 and Bluetooth 4.2 Module
  • USB – 2x USB 2.0 Host Type-A ports, 1x USB 2.0 OTG Type-C port
  • Debugging – 2x Debug UART: one for the Cortex-A55 core and one for the Cortex-M33 core
  • Expansion – 40-pin Raspberry Pi-compatible GPIO header with I2C/UART/SPI/CAN Bus and compatible with MYIR’s MY-WIREDCOM RPI Module to add RS485, RS232 and CAN Bus
  • Misc
    • 3x buttons (1x Reset, 1x Power On/Off, 1x User)
    • Boot DIP switch
    • 2x LEDs (1x Power indicator, 1x System Status LED)
    • RTC Battery Holder
  • Power Supply – 5V via USB-C port
  • Dimensions – 120 x 70 mm (6-layer PCB design)
  • Temperature Range – 0 to 70°C (commercial grade)

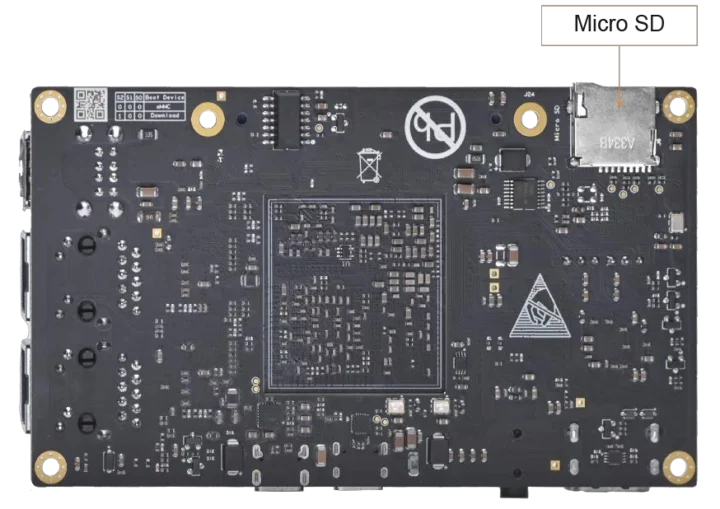

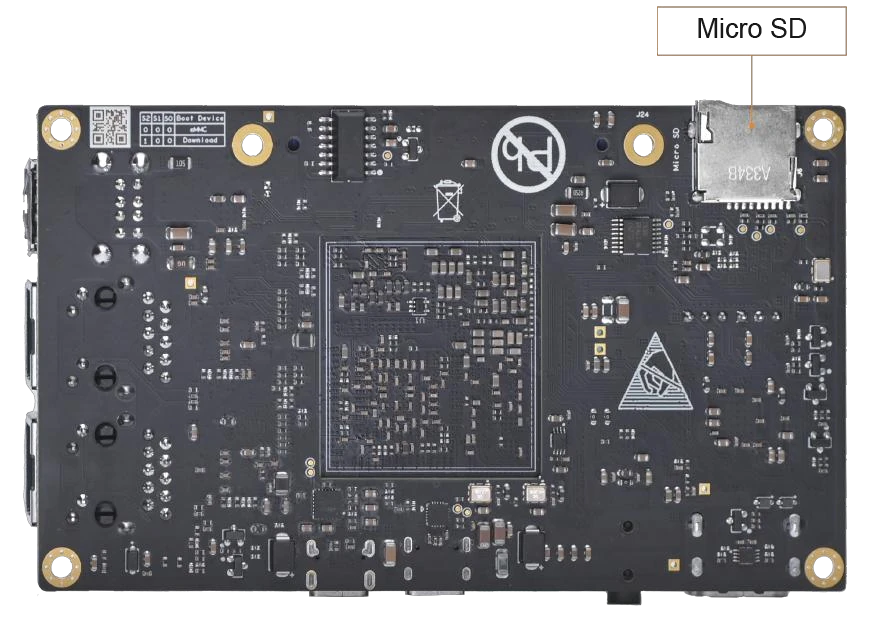

RENESAS RZ/G2L SBC bottom

MYiR Tech provides a Linux 5.10.83-based image built with the Yocto Project and plans to release Ubuntu and Debian images soon along with open-source drivers. Usually, they only do that for their paying customers, but the Yocto image for the Remi Pi, some documents, and source code can be downloaded directly on the MYiR website. Chinese readers may also access a support forum that looks to be somewhat active.

Potential applications for the Remi Pi and associated MYiR MYC-YG2L23 CPU module include industrial control systems, medical equipment, instrument displays, charging piles, industrial gateways, and energy storage EMS systems. MYiR sells a Remi Pi kit for $55 which you’ll find along with other information on the product page. For reference, the company is also selling the Remi Pi for 198 CNY on TMall, or about $27.5 US, so a price around $29.99 plus shipping might be feasible for users out of China.

Remi Pi block diagram
Block diagram
