Graperain G3562 – A Rockchip RK3562 system-on-module and development board

Graperain G3562 is a Rockchip RK3562 quad-core Cortex-A53 system-on-module (SoM) with up to 8GB LPDDR4, up to 128GB eMMC flash suitable for Edge AI, IoT, automation, and consumer electronic applications.

The company also provides the G3562 development board for the SoM with an M.2 socket for NVMe SSD, dual Ethernet, WiFi 5 and Bluetooth 5.0, and optional 4G LTE/3G cellular connectivity, plus a MIPI DSI/LVDS display connector, two MIPI CSI camera connectors, three USB 2.0 ports, audio interfaces, and expansion through a 30-pin GPIO header and UART connector.

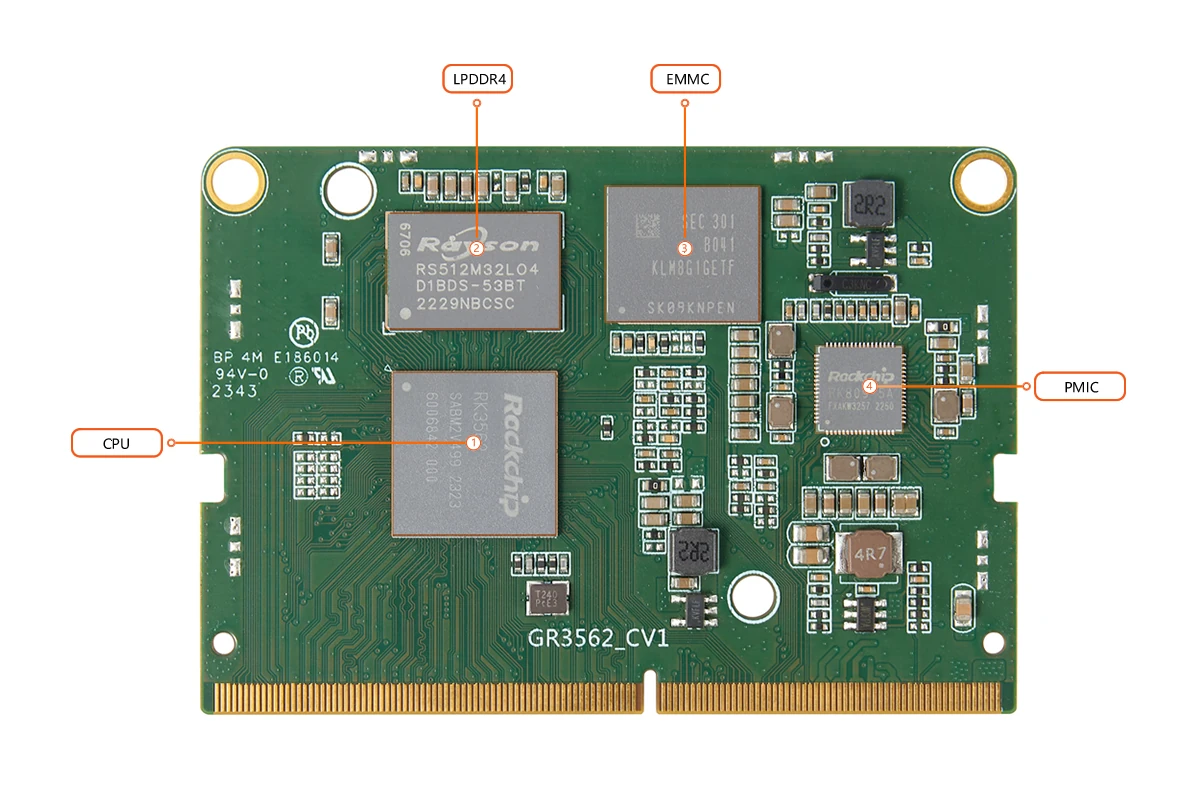

Graperain G3562 SoM

Graperain G3562 - Rockchip RK3562 system-on-module

GrapeRain G3562 specifications:

  • SoC –  Rockchip RK3562
    • CPU – Quad-core Arm Cortex-A53 quad-core @ 2.0 GHz
    • GPU – Mali-G52-2EE with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.0/1.1
    • AI accelerator – 1 TOPS (INT8) NPU
    • VPU
      • Encoder – H.264 1920×1080 @ 60fps
      • Decoder – H.265/VP9 4096×2304 @ 30fps; H.264 1920×1080 @ 60fps
  • RAM – 2GB LPDDR4 by default (options for 4GB or 8GB)
  • Storage – 16GB eMMC flash by default (options for 8GB, 32GB,  64GB, or 128GB)
  • 260-pin SO-DIMM edge connectors (1mm pitch)
    • Storage – SDIO 3.0
    • Display
      • MIPI DSI up to 2048×1080 @ 60Hz
      • LVDS up to 1280×800 @ 60Hz
      • RGB888 up to 2048×1080 @ 60Hz
    • Camera – 2x MIPI CSI up to 13MP
    • Audio
      • 2x I2S (8-channel input/output)
      • 1x I2S (2-channel input/output)
      • 1x SPEAKER interface
      • 1x HPOUT
    • Ethernet – 1x RGMII (10/100/1000Mbps), 1x RMII (10/100Mbps)
    • USB
      • 1x USB 2.0 Host
      • 1x USB 3.0 (TBC) OTG
    • PCIe – PCIe Gen 2.1 x1
    • Other Interfaces
      • 10x UART, 6x I2C
      • 16x PWM
      • 2x ADC
      • Up to 108x GPIO pins
  • Power Management – On-module RK809 PMIC
  • Dimensions – 69.6 x 48.1 x 3 mm (8-layer PCB)

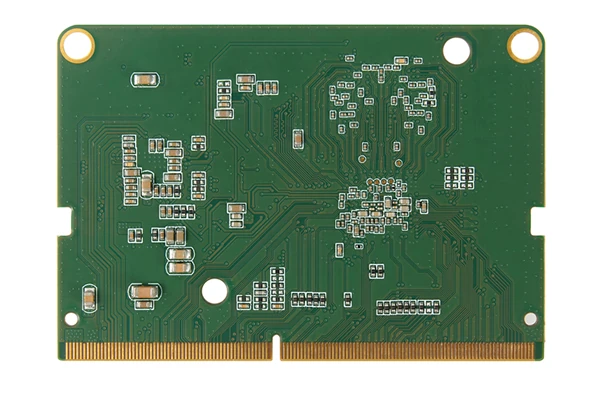

Graperain G3562 bottom side

Rockchip RK3562 development board

To help customers quickly evaluate the G3562 system-on-module and get started with software development, Graperain also provides the G3562 development board.

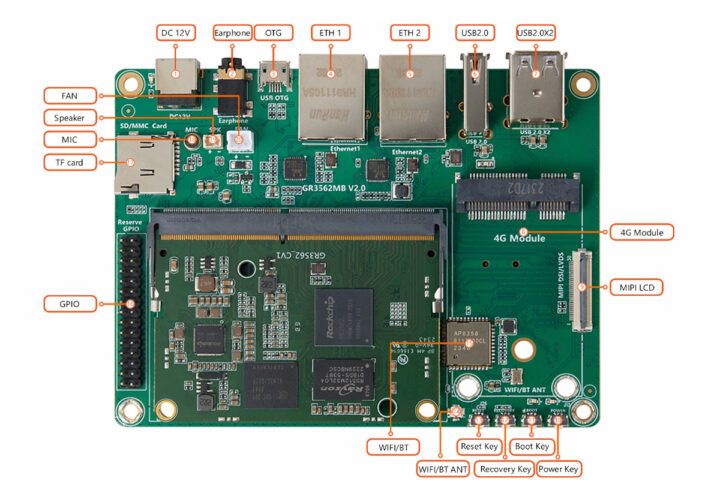

Rockchip RK3562 development board with G3562 system-on-module

G3562 development board specifications:

  • Fitted with GrapeRain G3562 SoM described above
  • Storage
    • M.2 socket for SSD
    • MicroSD card slot
  • Display – Single connector for
    • MIPI DSI up to 1080p60 OR
    • LVDS up to 1280×800 @ 60Hz
  • Camera I/F – 2x MIPI-CSI connectors up to 13MP
  • Audio
    • 3.5mm earphone jack (no mic)
    • Built-in microphone
    • Speaker connector
  • Networking
    • Gigabit Ethernet RJ45 port
    • 10/100M Ethernet RJ45 port
    • Optional WiFi 5 and Bluetooth 5.0 via 2-in-1 Ampak AP6256 SDIO module
    • Optional 4G LTE/3G via mPCIe module and SIM card slot
  • USB – 3x USB 2.0, 1x micro USB OTG port
  • Expansion
    • 30-pin GPIO header
    • UART6 serial port connector (for Bluetooth by default)
  • Debugging – Debug UART connector
  • Misc
    • Fan connector
    • RTC with battery
    • Power, Reset, Maskrom, and Recovery buttons
  • Power Supply – 12V DC via power barrel jack
  • Dimensions – 120 x 90mm (4-layer PCB)
  • Temperature Range – Operating: 0 – 70°C; storage: 20 – 80°C
  • Storage humidity – 10% -80%

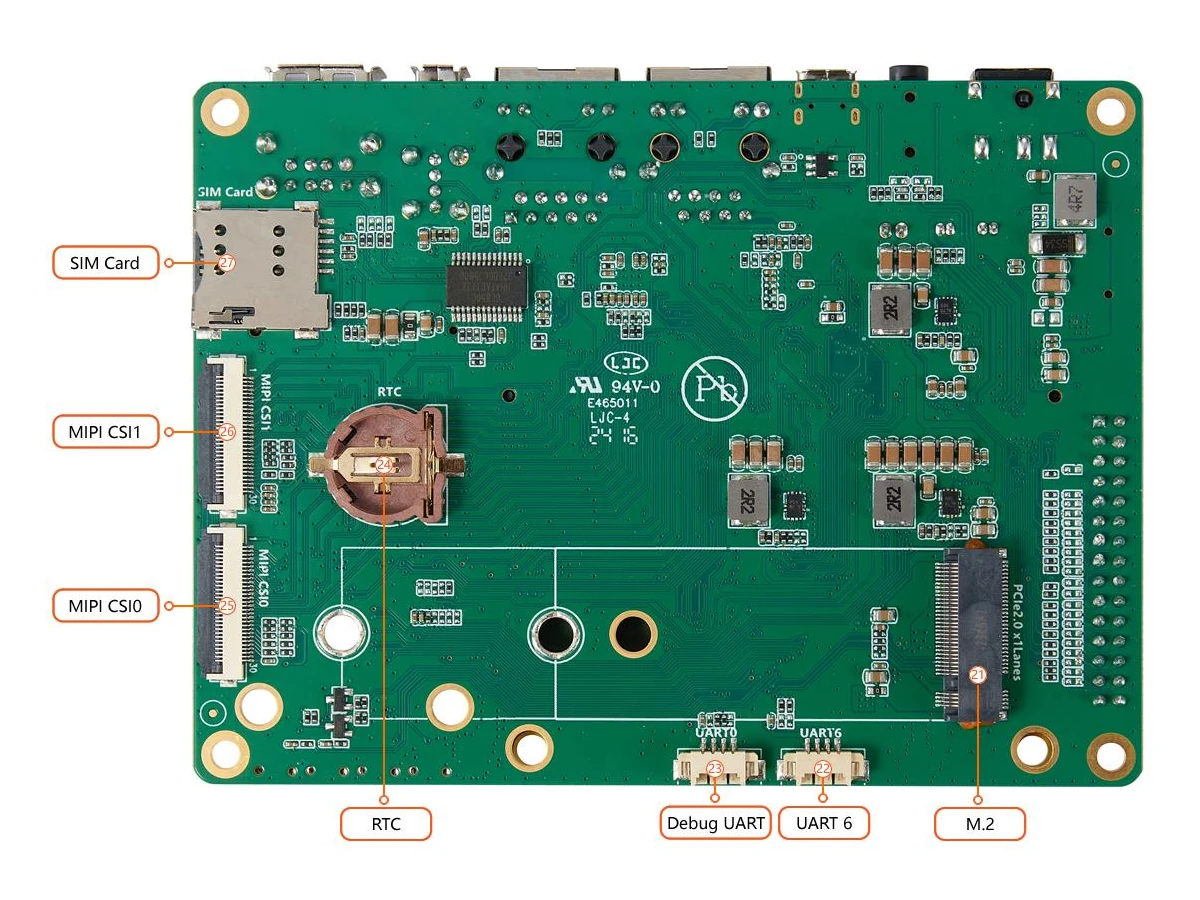

Graperain RK3562 development board

The company provides Android 13, Buildroot+QT, Ubuntu, and Debian OS images for the module and development board. You’ll find some documentation on the product page, but accessing it requires leaving a query with your email, and the company should reply with the documentation within a few hours or days. So it’s not ideal…

It’s not the first Rockchip RK3562 system-on-module and development board we’ve covered and alternatives include the Firefly Core-3562JQ and Forlinx FET3562J-C modules both of which are available with the industrial-grade RK3562J CPU. Firefly also introduced the AIO-3562JQ SBC with isolated DI/DO, RS232, RS485, and more for industrial applications.

Graperain sells the G3562 CPU module and development board on Alibaba for around $40 and $125 respectively.
