Lemon Pi Board is a $35 Raspberry Pi 2 Alternative Powered by Actions Semi S500 SoC (Crowdfunding)

I wrote about ActDuino S500 last month. It’s a development board powered by Actions Semi S500 quad core Cortex A9 processor, but very few details were available, and release date and pricing had not been disclosed. EmbedStudio, a Shenzhen startup, has now launched an Indiegogo campaign (flexible funding) for their Lemon Pi board based on S500 processor.

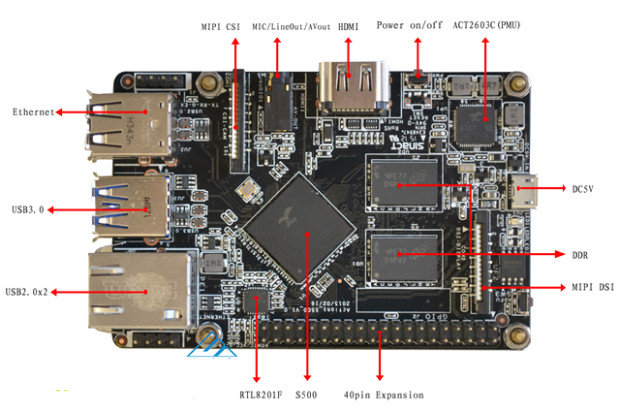

Lemon_Pi Lemon Pi specifications:

  • SoC – Actions Semi S500 quad core Cortex A9r4 processor with 512KB L2 Cache and a PowerVR SGX544 GPU with OpenGL ES 1.1/2.0, OpenVG 1.0.1, and OpenCL support
  • Memory – 1GB DDR3 RAM (Option: 2GB, not part of crowdfunding rewards)
  • Storage – micro SD slot. Option: Up to 64GB eMMC 4.5 flash, not part of crowdfunding rewards.
  • Video Output – HDMI 1.4 with HDCP, 3.5mm jack for CVBS (AV), MIPI DSI
  • Audio – HDMI, AV (Line out / microphone)
  • Connectivity – 10/100M Ethernet (RJ45; RTL8201F)
  • USB – 2x USB 2.0 host ports, 1x USB 3.0 port (OTG)
  • Camera –  MIPI CSI-2 interface
  • Expansion Header – 40-pin Raspberry Pi compatible header with I2S, PCM, 16 GPIOs, UART, SPI, and I2C.
  • Misc – On/off, reset and ADFU (Actions Device Firmware Update) keys, IR receiver
  • Power Supply – 5V/700mA via micro USB port- ACT260X PMIC and Audio codec chip
  • Dimensions – 85 x 56 mm

Lemon_Pi_Board_BottomThe board is said to run Android 5.0 and Ubuntu 12.04 using Linux 3.10 LTS. 3D hardware acceleration is enabled in Ubuntu too. They claim the source code can be found on github, but I could not find it (yet).

A $25 pledge for “Super Early Bird reward” should get you board, with a standard pledge being $35. Shipping via Hong Kong Post (Tracking not mentioned) is $5 extra to anywhere in the world. Most boards are scheduled to ship on August 2015, but a few beta? boards will ship as early as June.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
72 Comments
oldest
newest
Phil
Phil
8 years ago

They seem to have the ethernet and USB2.0 labels mixed up on the picture

Falcon1
Falcon1
8 years ago

PowerVR, argh, vendor lock in. This LemonPI has a life expectancy of 2 year max. Just like my Dell mini 1010 (Poulsbo).

Even the original PI with the Video Core IV from BCM has a better chance of a OSS GPU driver.

I Don’t know how Imagination Tech does it. But they keep on slithering in.

Gabe
Gabe
8 years ago

What does this mean on Indiegogo page?
*Please don’t remember adding shipping perk option with this perk in your total order

onebir
onebir
8 years ago

Any reason to favour this over existing options (Raspi/Hardkernel)?

onebir
onebir
8 years ago

@onebir
Maybe USB 3?

Gabe
Gabe
8 years ago

This company promises on Indiegogo page a website that will be ready by April & now it’s the end of May, still no website.

embedstudio
embedstudio
8 years ago

@Phil
you are right
sorry, we make a mistake to label ethernet and usb2.0 position
thanks!

embedstudio
embedstudio
8 years ago

@Gabe
hi, cnxsoft is right.
shipping cost need to be added additionly.
$5 (HK post) or $30 (DHL).

embedstudio
embedstudio
8 years ago

@Gabe
we will speed up website instruction
thanks

embedstudio
embedstudio
8 years ago

@onebir
usb3.0
quad-core A9 more powerful than A5/A7
imagination GPU that Apple use
android 5.0
Thanks

TC
TC
8 years ago

@Phil came here to post that ^^

TC
TC
8 years ago

“please dont remember to add shipping costs with this perk”

that sense makes no sentence

ade
ade
8 years ago

@onebir
> “Maybe USB 3?”
Yes, but it’s too bad the ethernet is only 10/100 and not GbE…

ade
ade
8 years ago

@embedstudio
> “android 5.0”

And Ubuntu 12.04… why a release so old ?!?

Gabe
Gabe
8 years ago

On Actions Semi page the S500 supports Ubuntu 14.04:
http://www.actions-semi.com/en/productview.aspx?cat=103&id=148

Pteridium
Pteridium
8 years ago

Another ARM based board to the collection. There are SoCs out there with different cpus that have linux support (and other OSes).
Nothing new, it is the same as the other ones of its kind.

Marius Cirsta
8 years ago

Well this is nice but with a PowerVR GPU thanks but not thanks. An open source for the rPi and rPi2 GPU is being worked on while there’s not such hope for PowerVR…

This limits the usability of the board IMO as there’s not reason to be sure you’ll have a working driver for the latest kernel or latest X or latest Mesa or a Wayland driver ….

Choice is always good but I don’t really see this offering much over the rPi2 … am I missing something ?

renw0rp
renw0rp
8 years ago

guy got PhD from US university and they wrote THIS? I’m sick of Chinglish and Chinese mentality regarding the quality (and accuracy) of descriptions.

I would stay clear. On top of that powervr….

stewar@embedstudio.com
8 years ago

🙂 I am stewar,not pino. I am sorry my chinglish bothers you. I will try to improve my english expression to be unstood. Many thanks.
🙂
@renw0rp

stewar@embedstudio.com
8 years ago

I mean $35 is cost of board.
$35 does not include shipping cost.
you will add shipping cost additionally when selecting perk manually.
@TC

stewar@embedstudio.com
8 years ago

because Imagination official GPU driver can only support ubuntu12.04 now.
later they will update to support 14.04
@ade

stewar@embedstudio.com
8 years ago

actually now it can only support 12.04
14.04 will be supported in the near future

@Gabe

JotaMG
JotaMG
8 years ago

because Imagination official GPU driver can only support ubuntu12.04 now.
later they will update to support 14.04

Well, this is a bad start, no?
(but no surprise here)
Your “near future” is what YEAR, exactly??

Al
Al
8 years ago

If anyone needs help with producing proper English technical documentation from Chinglish, we can help.

Al
Al
8 years ago

How long until we can get a quad A53 or A72 with gigabit for around the same price ? 18 months ?

Saying something is for digital signage and only having 1 display connector is an utter joke

freechelmi
8 years ago

As the others I don’t see anything positive when binary imagination drivers are present.

It seems the Mali approach is a bit better? With user land blobs?

sky770
sky770
8 years ago

powerVR? no thanks :>
on top of that $35 +$5 is steep~

Harley
Harley
8 years ago

If they wanted better (free labor from) community support then they should have selected a much more open source friendly SoC platform to build this on than closed hardware such as Action Semi with PowerVR GPU.

Marius Cirsta
8 years ago

@Al

I’d pay even more for that now, say $100, there are no good ARM64 boards out there. It would have been nicer to have one of that instead of this rPi2 competitor which has nothing important to offer in it’s favor.

Marius Cirsta
8 years ago

I’ve also noticed there’s mention of a “PowerVR SGX544 GPU open source driver” which is very , very odd indeed. I’m guessing this is either an error or it’s about some sort of open source kernel module paired with a closed source userland blob.

Sander
Sander
8 years ago

JotaMG :

because Imagination official GPU driver can only support ubuntu12.04 now.
later they will update to support 14.04

Well, this is a bad start, no?
(but no surprise here)
Your “near future” is what YEAR, exactly??

Hahaha, well said!

The “Ubuntu 12.04” support (3 years old) was also an alarm bell for me. Or as Brüno says “Nicht, nicht!”.

Gabe
Gabe
8 years ago

And it’s a flexible campaign. Maybe they won’t gather enough money, boards will be never sent out & you remain without money.

sky770
sky770
8 years ago

Gabe :
And it’s a flexible campaign. Maybe they won’t gather enough money, boards will be never sent out & you remain without money.

hahahaa +1

paul
paul
8 years ago

I stopped at Actions Semi, or was it Shenzehn? Point is i stopped, if any newbie reads this: don’t jump at the hopeful firmware, think you’ll get the option for 2gb ram, or expect it sent to you at all. I’m gagging that the crowd source site keeps this up. Andrd 5 is the new Honeycomb. @imagination stop. Just stop.

stewar@embedstudio.com
8 years ago

Dear Gabe, Firstly, our team believe we will succeed in our compaign with help of everyone who pay attention to us and support us, like you. We also thank anyone who don’t give financial contribution but give attention. Seondly, If we can’t achieve the $10,000 USD goal we set originally, we will still to sent out Lemon Pi to every contributer and make friend with everyone and reply every email sent to us. We will keep our promise for every contributer whom we treat as our first investors. We will not break heart of anyone who helps us. Although this… Read more »

stewar@embedstudio.com
8 years ago

sorry, we can’t give exact time, we can only wait for support from Imagination who is vender of PowerVR544

@JotaMG

stewar@embedstudio.com
8 years ago

Many Thanks, please sent email to me.
[email protected]

@Al

stewar@embedstudio.com
8 years ago

I think 12 months one year maybe enough for $35 quad-core A53.

I think only one HDMI connect can support digital signage, why not? thanks for your information

@Al

@Al

stewar@embedstudio.com
8 years ago

kernel mode of PowerVR SGX544 GPU driver will be open

@Marius Cirsta

paul
paul
8 years ago

@lemon pi thingy creator : reading these comments, and my own i wan’t to say that i think most of us are tired of the bait and switch. Whether it’s manufacturer A or B, you just happened to land in a forum full of people over the blatency of Asian continental board manufacturers telling us one thing and finding out the opposite AFTER weve paid. Or being shady with schematics knowing many consumers are not going to arrive in Guangdon province to hunt down 35.00 . so many sleek adverts but so little care that we actually read (and notice)… Read more »

embedstudio
embedstudio
8 years ago

@paul
I couldn’t agree more with your opinion. as what I said on campaign, “become one of the partners or volunteers partner or volunteer within our team EMBEDSTUDIO “. I warmly welcome anyone to help make this project more successful.
Please contact us [email protected];[email protected] for further detailed discussion.
Many thanks.

Gabe
Gabe
8 years ago

If this is an open source board, where is the datasheet for Actions S500 SOC?

Gabe
Gabe
8 years ago

The name of the product also is not very inspiring. Lemon has a negative conotation, according to merriam webster:
“a product that is not made well : a product that does not work the way it should” taken from:
http://www.merriam-webster.com/dictionary/lemon
You should have given another fruit name like Kiwi Pi, Pomelo Pi or Lychee Pi.

embedstudio
embedstudio
8 years ago

@Gabe

Dear Gabe,
Public datesheet is be preparing by Actions semi. When we get their authorized official public version, we will release immediatly.
Many thanks for your detailed explanation for one meaning of Lemon. actually we do not realize and have no ideas about it. We will consider your valuable advice seriously. Let us try our best to make Lemon Pi work well.

Gabe
Gabe
8 years ago

So you finished porting Ubuntu 12.04, does hardware video acceleration work under it(playing videos from KODI, VLC)?

embedstudio
embedstudio
8 years ago

yes, Ubuntu 12.04 with GPU acceleration and XBMC/KODI with hardware video decode all already run on Lemon Pi, we are fixing some bugs for it

recently ,I will update FAQ according to questions these days on campaign

@Gabe

onebir
onebir
8 years ago

@embedstudio
Any plans for 14.04?

embedstudio
embedstudio
8 years ago

@onebir

Everyday I am asking for Actions and Imagination to accelerate this process. I will keep everyone informed when there is exact time.

@lex
@lex
8 years ago

@embedstudio

I give you an idea, when you release ubuntu 14.04 with native GPU acceleration and hardware video decoding, get the word LEMON, shake it very hard and you will find the word MELON which is a sweet fruit and very inspiring according to merrian-webster, release a second improved board with this name.

No jokes here, i will contribute to your campaign as i did for cubieboard, i just would like to have a look at the BSP/SDK before i do it, could you give a link to download it?

JotaMG
JotaMG
8 years ago

@@lex:

In some dialects “melon” – the fruit – also as some negative connotations.
From what I know, raspberry and orange are really the best ones…
Wait, I have a winner…

COCONUT PI !!!
“hard to break, delightful inside”

(ok, I’m inspired, I better rush now to the patent office)

🙂

Armer
Armer
8 years ago

I like the Coconut Pi too. 🙂 I want to buy the patent. How much is it?

Stephen
Stephen
8 years ago

Will the be a version with 2GB of RAM, and if so about how much will it cost?

embedstudio
embedstudio
8 years ago

1. 2GB of DDR3 RAM is supported

2. EMMC is optional

If you have a large volume order, we can arrange a particular board for you, but not this board on this campaign. Please contact us directly at [email protected] or [email protected]
@Stephen

embedstudio
embedstudio
8 years ago

@@lex hi Lex, Thanks for you advice 🙂 I heard even founder of RPi didn’t like PRi name, but everyone like it eventually. Hope that day will come for Lemon Pi. Now we are hurrying up preparing BSP/SDK. Please Email to me to tell me you are Lex in order for me to keep you updated specially for you. [email protected] or [email protected] http://www.embedstudio.com is available now. But more content will be updated later. Many thanks for your attention and following of Lemon Pi. Don’t hesitate to ask any question or give advice to us. We will keep you updated and… Read more »

JotaMG
JotaMG
8 years ago

@ embedstudio I heard even founder of RPi didn’t like PRi name, but everyone like it eventually. Hope that day will come for Lemon Pi. You see, the difference, and it’s a BIG one, is that RPi was a pioneer, the first and cheap one that was available, so at that time, no one really pay attention to the name. Probably, if it was named “Shit Pi” it will still be a success. At the time, they don’t have concurrents. (and the same applies to the first Cubieboard, that also was innovative) Now, you are coming to a market that… Read more »

Roel
Roel
8 years ago

A plus point is that all expansion boards of the rpi will work on this lemon pi, but I want to see this first. The same for Kodi with full HW support. If a board should donated to Lakka, then they can make a port also. I assume hdmi-cec is also supported. If all these things should be true then I will take this board in consideration as it will always be usable when kernel support seems to drop, especially with the powervr gpu. If it would have mali then we could have a more longtime support when lima gets… Read more »

Gabe
Gabe
8 years ago

S500 brief datasheet:
https://db.tt/Sfjg36EH

@ex
@ex
8 years ago

@Gabe
I have read somewhere else that it had 16 Kb L1/L2, are there different S500 versions or i was just mistaken…

bmourit
bmourit
8 years ago
@lex
@lex
8 years ago

@ex :
@Gabe
I have read somewhere else that it had 16 Kb L1/L2, are there different S500 versions or i was just mistaken…

Thanks, must be the water… 🙂

Raffaele
8 years ago

What the hell? Actions Semiconductor had NO docs at all (sad past experiences)! And many other manufacturers offer more for less money. This board has nothing new, and in fact it isn’t cheap…

stan
stan
8 years ago

@Falcon1
Price

Peter Scargill
8 years ago

Ok…. months later here we are in February 2016 – my Lemon Pi turned up today with no info whatsoever 🙂

I went off to their site – there’s the datasheet – still no links to operating systems – so right now it’s a brick.. Any ideas where to look guys? I’ll do a review at http://tech.scargill.net once I can actually get something running on it.

Peter Scargill
8 years ago


I’ve very glad you’ve done the groundbreaking work on this including figuring out the password! My image loaded first time and as I speak I’m loading it onto a quality 16GB card. Fingers crossed…. Still doesn’t explain why the Lemon Pi apparently has no software!
