Direct Insight TRITON-TX6Q System-on-Module Powered by Freescale i.MX6Q

Direct Insight, a British company, has recently announced the TRITON-TX6Q, a SODIMM system-on-module based on Freescale’s iMX6Q quad core Cortex-A9 processor running at 1 GHz with 1 to 2GB RAM and 128 MB flash. This module targets embedded applications including medical devices, digital signage, and industrial multimedia products.

TRITON-TX6Q SoM

Here are the TRITON-TX6Q specifications:

  • SoC – Freescale i.MX6Q 4x ARM Cortex-A9 up to  1GHz + Vivante GC2000, GC355 and GC320 graphics co-processors
  • System Memory – 1GB or 2GB 64-bit DDR3 @ 1066MHz
  • Storage – 128MB NAND Flash, 2 SD card receptacles on baseboard
  • Display Connection – LCD controller 24-bit parallel up to 1080p, dual LVDS (optional). Resistive & capactive touch screen support.
  • Connectivity – Ethernet 10/100 BaseT with PHY on module.
  • USB – USB Host + USB OTG
  • Peripherals and Interfaces:
    • Up to 5x UART (RS232) with pin sharing
    • 2x I2C, 1x 1-wire and 2x SPI interfaces
    • SSP (synchronous serial /digital audio): 2 on headers
    • Analog audio: codec on baseboard
    • 2x CAN
    • PCI Express
    • PWM controller
    • 8×8 keypad
    • JTAG: 20-pin header on baseboard
    • 2 camera interfaces
    • DS1339 RTC
  • Temperature range – -45 to 80 Celsius degrees.
  • Dimensions – 67.6mm x 31mm x 4.2mm (SODIMM)

The company provides the StarterKit-5 baseboard with optional touchscreens (640×480 or 800×600) for development, and supports Windows Embedded Compact 7 (CE 7) or Linux 3.x for this module.

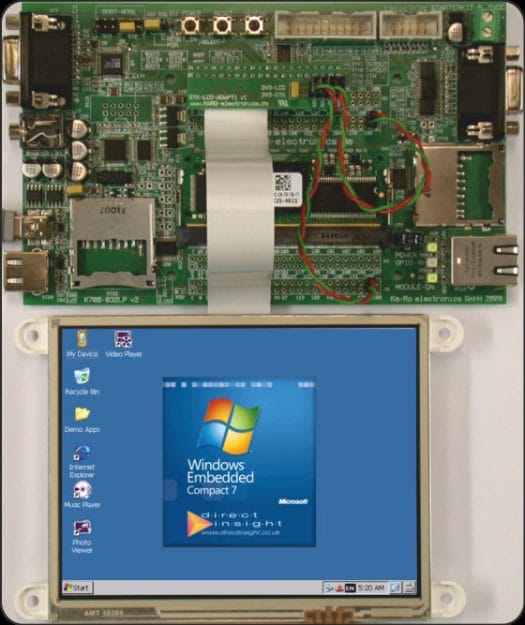

Starterkit-5 Baseboard with Touch Screen running Windows Embedded 7

Direct Insight makes full schematics of the baseboard available in order to facilitate development of a custom baseboard by customers. StartketKit-5 baseboard is pin-to-pin compilable with all Freescale modules (i.MX5 to the latest i.MX6 SoM) manufactured by the company, and system-on-modules based on Freescale have a 10-year-plus lifetime.

TRITON-TX6Q modules should be available in Q1 2013 at an undisclosed price, but as reference TRITON-TX53Q modules cost 155 GBP per unit (~$250 US), and the StartkerKit-5 baseboard is available for 745 GBP (~$1200 US) without display.

You can find more information on TRITON-TX6Q page.

Via: Embedded Star
