HK1 MAX PLUS TV Box Features Upgraded Rockchip RK3368PRO SoC with USB 3.0, HDR Support

Rockchip RK3368 octa-core Cortex-A53 processor @ 1.2 GHz was introduced in 2015 mostly in TV boxes running Android 5.1 such as Beelink i68 or Tronsmart Orion R68.

Unsurprisingly we don’t read much about new Rockchip RK3368 products four years later. But Rockchip appears to have launched a RK3368 “refresh” with RK3368PRO processor equipped with most of the same features, plus the addition of a USB 3.0 interface, and HDR support. The company also updated software support to Android 9.0 Pie.

Rockchip RK3368Pro TV Box

We don’t actually have much information about the processor as we learned about it via a listing on Aliexpress for HK1 MAX PLUS TV box with the following (preliminary) specifications:

  • SoC – Rockchip RK3368PRO Octa-Core Arm Cortex-A53 @ 1.5 GHz with Imagination PowerVR G6110 GPU
  • System Memory – 4 GB DDR3
  • Storage – 32GB, 64GB, or 128GB flash; MicroSD card slot
  • Video Output – HDMI 2.0a up to 4K @ 60 Hz with HDR support (HDR10 and HLG modes)
  • Video – 4K 60 fps H.265, VP9; 4K 30 fps H.264
  • Audio – Optical S/PDIF, HDMI output
  • Connectivity – Gigabit Ethernet, dual-band WiFi 5, Bluetooth 4.0
  • USB – 1x USB 2.0 port, 1x USB 3.0 port
  • Misc – Power LED, front panel LCD dsisplay
  • Power Supply – 5V/2A
  • Dimensions & Weight – TBD

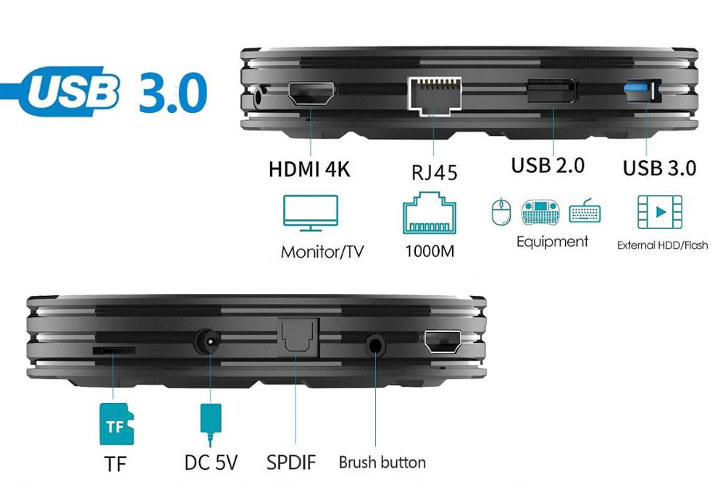

HK1 MAX Plus TV Box

I’ll let you find out what a “brush button” is since I have no idea. It just looks like a typical 3.5mm AV port with composite video and stereo audio, but the specs specifically indicate there’s no such AV port. Sometimes they include the recovery button in such opening, so maybe that’s the case here.

The box runs Android 9.0, and ships with an IR Remote control, a power supply, an HDMI cable, and a user manual by default. There are also optional accessories such as T1 voice remote for Google Assistant, and that happens to have shortcuts for Netflix, YouTube, and Google Play as shown below.

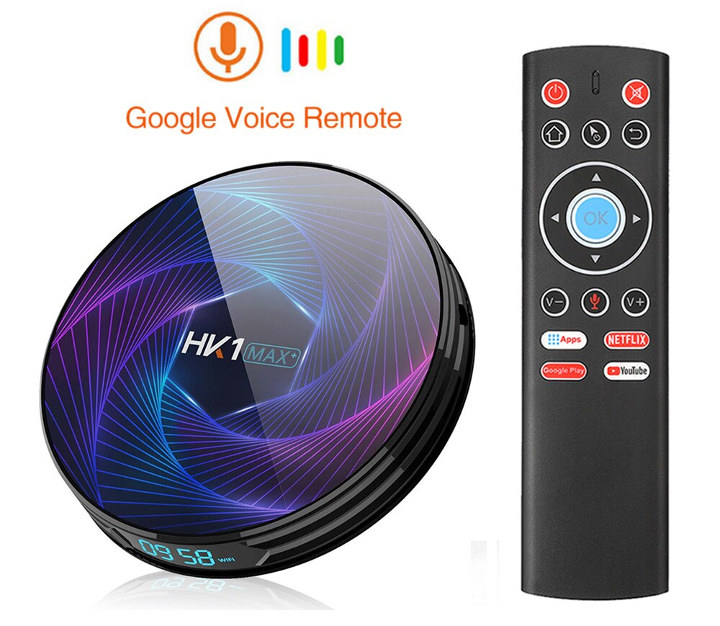

T1 Voice Remote

Price starts at $42.69 including shipping for the model with 4GB RAM, and 32GB flash, but the 64GB version is not much more at $45.73. T1 voice remote adds about $9 to the total price.

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
12 Comments
oldest
newest
tonny
tonny
4 years ago

GPU = PowerVR? Skip.

Ricklar
Ricklar
4 years ago

Since Amlogic made the S912 to compete against the original rk3368, maybe just maybe Amlogic will re-release the S912 with Pie. One can always dream. Still have S912 devices that run exceptionally well on CoreELEC software, but it would be nice to update the Android OS.

willy
willy
4 years ago

If it can sustain 1.5 GHz on all 8 cores, it could directly compete with the NanoPi Fire3 for CPU intensive tasks, especially with 4 GB of RAM.

blu
blu
4 years ago

The original couldn’t*, I doubt this one will. Let’s wait and see, though.

* Not only that, but it throttled the “big” cluster to 1.2GHz** whenever the “small” cluster reached 1.1GHz**

** Figures by memory, might be off by some hundred of MHz.

Redneckerz
Redneckerz
4 years ago

In the listing it is shown that the memory is DDR3 and not DDR4. The original RK3368 paper also supports this. It is plausible that DDR4 support was added considering the modern S905X2/X3 uses that, but for now, it appears to have 4 GB DDR3.

Kleber
Kleber
4 years ago

I bought this box recently. I am suffering a big problem… It not recognize external drive before formatting it.

Oktay
Oktay
4 years ago

Hello
I have a “Hk1 max + rk3368 4gb ram 128gb rom” device. After the electricity was cut off, it was not turned on again. I think there is a USB-PC connection, original or appropriate software ROM
As far as I searched amateurly on the internet, there is none.

” Hk1 max+ rk3368 4gb ram 128gb rom ”
orjinal Firmware Link???

Since I have been following your good research and studies for a long time, I thought about writing and asking for help. thank you
I wish you success in your work
Yours truly
oktay

Aksheya Soma Sekhar
Aksheya Soma Sekhar
3 years ago

You got the firmware?, still IM searching

Oktay
Oktay
4 years ago

Hello I have a “Hk1 max + rk3368 4gb ram 128gb rom” device. After the electricity was cut off, it was not turned on again. I think there is a USB-PC connection, original or appropriate software ROM As far as I searched amateurly on the internet, there is none. ” Hk1 max+ rk3368 4gb ram 128gb rom ” orjinal Firmware Link??? Since I have been following your good research and studies for a long time, I thought about writing and asking for help. thank you I wish you success in your work Yours truly PLEASE ”Hk1 max + rk3368 4gb… Read more »

azerty
azerty
4 years ago
Ecko
Ecko
4 months ago

After all the time, it might be still worth to mention, that there newer was a “RK3368PRO” SoC. I bought the box after reading this – and well: It’s just a regular RK3368: No USB3 (it has a blue painted socket, that’s all), no VP9, no HDR.
This was the most blatant scam from China that I have seen so far.
