Phytium D2000 ARMv8 Mini PC runs Linux, supports gaming with Box64 emulator

Dragonbox is now taking pre-orders for a “Phytium D2000 ARMv8 Mini PC” with an octa-core 64-bit Arm processor, 16GB RAM, a 512GB NVMe, and an AMD Radeon RX550 GPU that makes it powerful enough to play older PC gaming like Crysis through Box64 x86_64 emulator, the 64-bit version of Box86 x86 emulator compatible with Raspberry Pi and other 32-bit Arm platforms.

If the Dragonbox name sounds familiar, it’s because that’s the community that developed the Pyra handheld Linux game console/PC, except now they are offering a mini PC based on Phytium D2000 processor based on the same FTC663 Armv8 cores as found in the earlier Phytium FT2000/4 processor, with both Pythium SoC specifically designed for desktop PCs, contrary to most other Arm SoCs on the market.

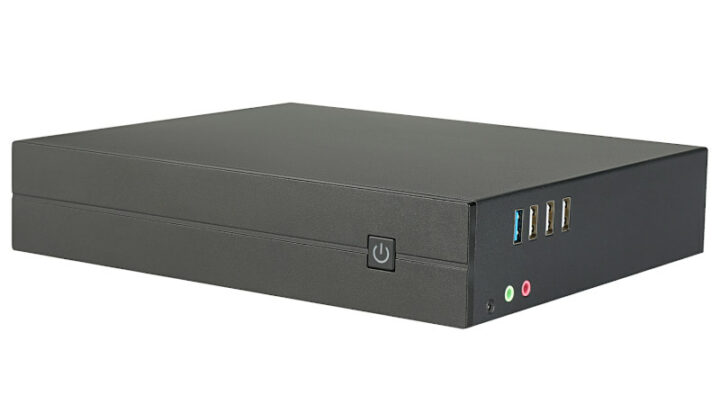

Phytium D2000 Armv8 mini PCPhytium D2000 mini PC specifications:

  • SoC –  Phytium D2000 ARMv8 octa-core custom Armv8 (FTC663) desktop processor @ 2.3 – 2.6 GHz with 8MB L2 Cache (2MB per dual-core clusters) and 4MB L3 Cache; 14nm process; 25W TDP; 1144-pin FCBGA package (35×35 mm)
  • GPU – AMD Radeon RX 550 MXM 3.0a graphics card with 2GB VRAM
  • System Memory – 16GB DDR4 RAM
  • Storage – 512GB NVMe SSD inserted into to M.2 slot
  • Video Output – HDMI 2.0b 4k/60Hz
  • Networking – Gigabit Ethernet RJ45 port
  • USB – 5x USB-A 2.0 ports, 1x USB-A 3.0 port
  • Power Supply – 60W external PSU
  • Dimensions – 225 x 187 x 47mm

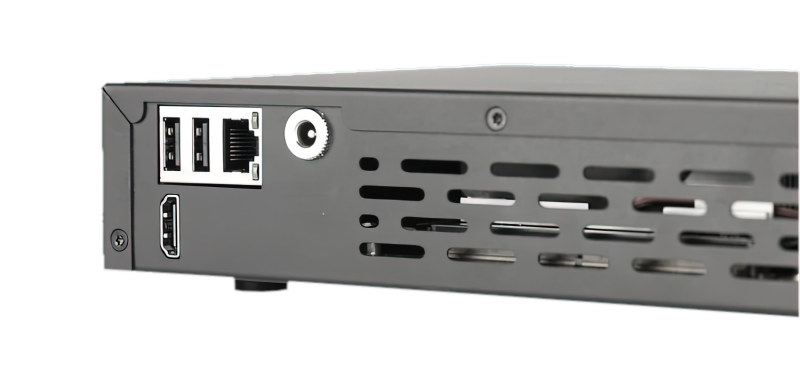

HDMI USB port Arm mini PC

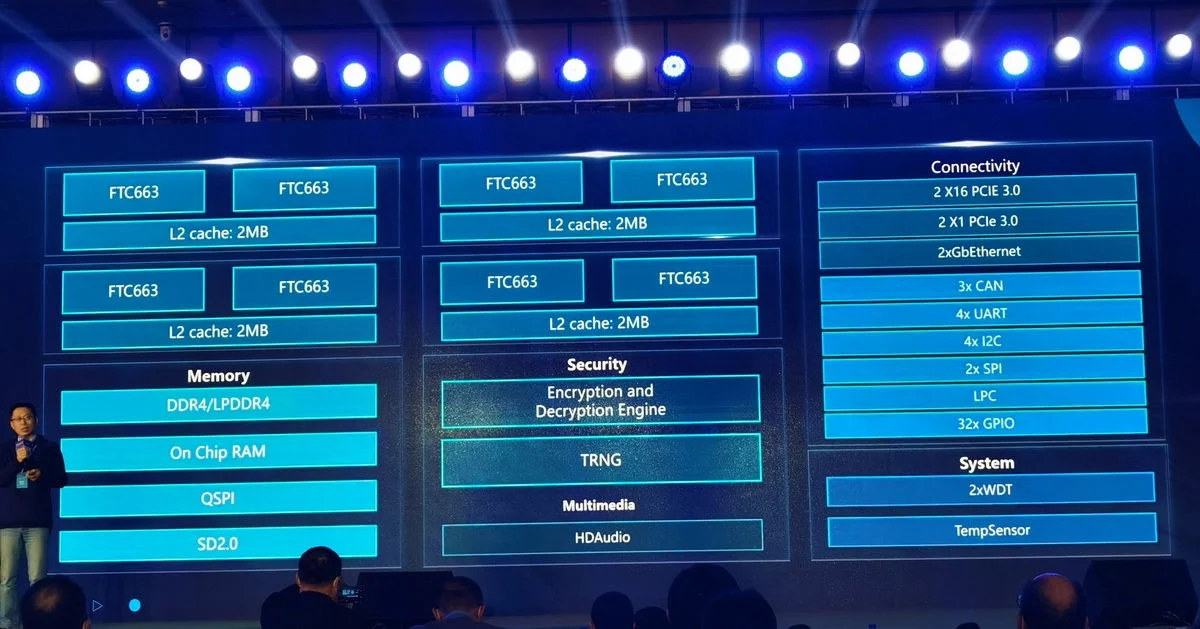

Phytium D2000 processor block diagram
Phytium D2000 processor block diagram

HKEPC has more details about the SoC itself with the octa-core processor equipped with 34-lanes for PCIe 3.0 interfaces (2x PCIe x16, 1x PCIe x1), and dual Gigabit Ethernet making it suitable for desktop computers, notebooks, industrial computers, and network security equipment like firewalls. Most of the slides are in Chinese, but I also understand the Phytium D2000 octa-core processor is pin-to-pin compatible with Phytim FT2000/4 quad-core Arm SoC, so existing designs for the older chip should be easily upgradeable.

Back to the “mini PC” that’s not exactly that mini, especially when compared to Raspberry Pi 4 and ODROID-N2 boards, but it’s not surprising considering they had to have a case that can take a graphics card.

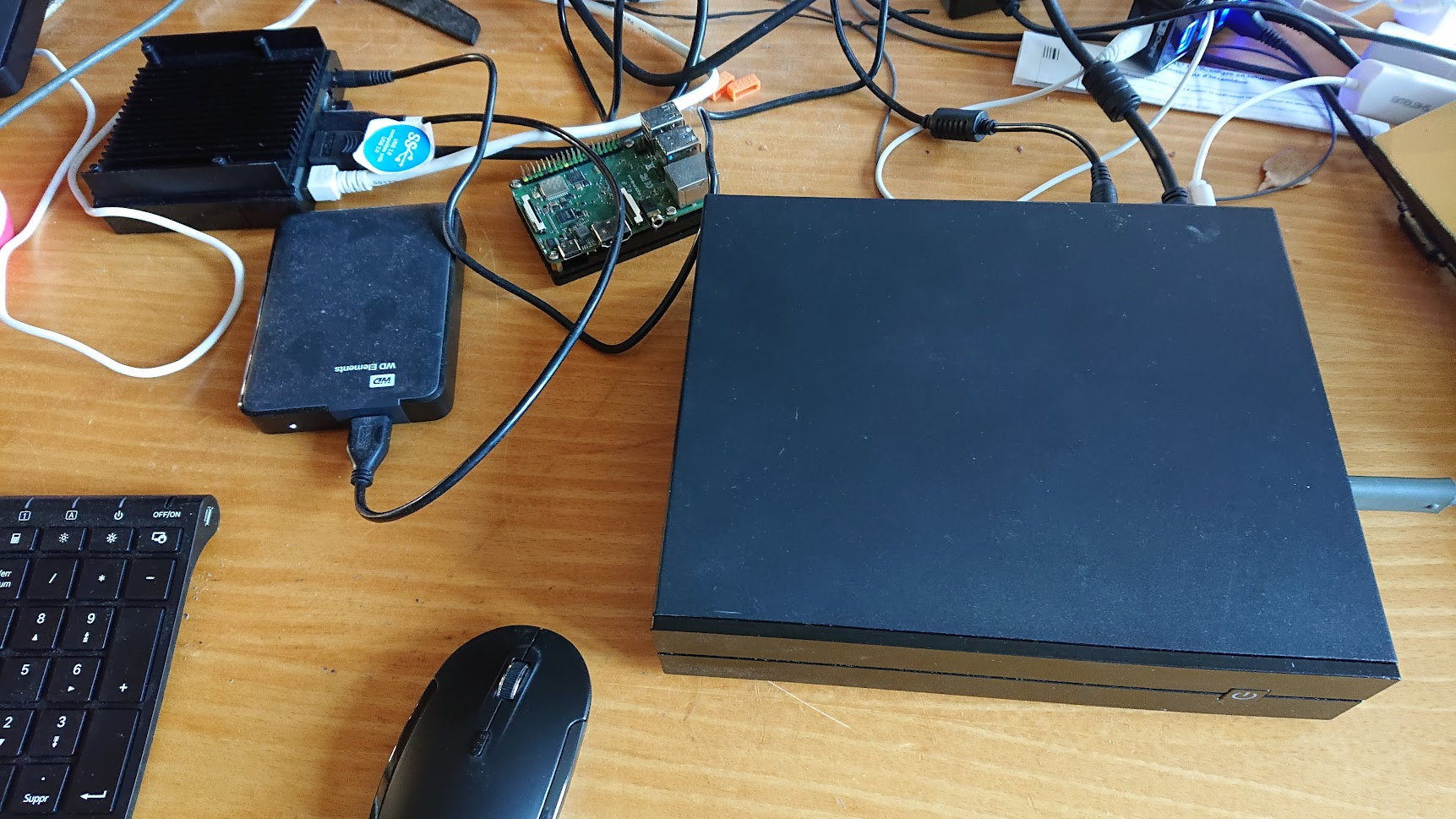

Phytium D2000 mini PC vs Raspberry Pi 4 and ODROID-N2
Image courtesy of ptitSeb

The main developer of Box64 and Box32 emulators, ptitSeb, got hold of an early sample, installed Ubuntu 20.04.3 on the computer, runs some WelGL demos, as well as Box64 emulator running Factorio. I also noticed a YouTube account under the same “Boiling Steam” uploaded a video with the mini PC running Ziggurat, Warcraft 3, and Crysis via Box64 with the latter apparently also showing the FPS (16 to 22 fps), CPU, and GPU utilization with MangoHud open-source utility.

If you’re interested you can join the pre-order for 470.59 Euros on the Dragonbox store. Note that it’s more like a group buying though, as if there’s not enough demand by December 10th a refund will be provided. If demand is high enough, then shipping is expected to start on December 17th.

Via Liliputing

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
24 Comments
oldest
newest
Marius
2 years ago

The price is OK I guess , not cheap but I’ve seen more expensive ARM board and this one has GPU even.
I’d like an option without GPU.
The question is what is the performance of this one, does anyone know if there are any benchmarks ?

Marius
2 years ago

Some 7zip or Geekbench scores would mean more to me. Hopefully someone can test this.

tkaiser
tkaiser
2 years ago

7-zip numbers on Reddit.

tkaiser
tkaiser
2 years ago

Memory performance is not that great and there’s some sort of AES/crypto acceleration: https://github.com/ThomasKaiser/sbc-bench/issues/26

P.P.A.
P.P.A.
2 years ago

Does this mean there are working ARM64 drivers for the RX550 now, and it could theoretically be used with other SoCs provided they have PCIe available?

Salvador
Salvador
2 years ago

MESA.

Salvador
Salvador
2 years ago

If they can address a gpu, yes. Probably RK3588 would be the best candidate. Then we will see if it’s a good idea or not (they may performs poorly)

Salvador
Salvador
2 years ago

Ptitseb got armbian working on his pythium since armbian got UEFI capabilities yesterday.

Jeroen
2 years ago

How does an unknown company make a custom arm core?, i thought it was quite expensive to get a licence to create custom cores?

Salvador
Salvador
2 years ago

It’s expensive to use custom cores based on the arm microarchs. They only took the ISA license and made everything from scratch, that’s why they aren’t cheap neither haha tons of development

Milkboy
Milkboy
2 years ago

How does an unknown company make a custom arm core?, i thought it was quite expensive to get a licence to create custom cores?

Because it is ARM CHINA. google up on the drama. lols
I dont really know how much this impact on licensing, but it is still a good read
Second, the company has been making supercomputer custom cores for quite some time now. they have necessary the talent and cash.

https://en.wikipedia.org/wiki/FeiTeng_(processor)

Milkboy
Milkboy
2 years ago

I forgot you did a post on it. hahaha….

Salvador
Salvador
2 years ago

Jean, let be honest, that doesn’t have any relation with pythium. Pythium would be a thing without arm china clash against main arm. Pythium didn’t took the arm microarchs (like any other maker that use them as base for custom cores) neither his gpus. They just took the arm isa license (quite cheap) and made everything else from scratch.

parker
parker
2 years ago

Phytium is not an unkown compagny they produce arm based supercomputers for Chine (Tiahne) and amongst the most powerful supercomputers in the world. They also have amongst their shareholders a number of big chineese compagnies

lanefu
lanefu
2 years ago

I just got confirmation from xiaoji that the Phytium can support up to 32 gigs of RAM via it’s 2 SODIMM slots!

lanefu
lanefu
2 years ago

Got my phytium. Running armbian uefi on it.

The 60W power brick is insufficient. Swapped it for a 90W and it’s been quite impressive. Peak power draw 71W when I pounded it

It’s a neat device. It has potential.

https://youtu.be/RidrPztvXgA

tkaiser
tkaiser
2 years ago

> Running armbian uefi on it

Will you then fix /etc/armbianmonitor/datasources/soctemp pointing to the wrong sysfs node (the SSD)? Most probably not, right?

Asides that really hard to understand the excitement around D2000 and a laptop GPU. Neither inexpensive, nor energy efficient, nor powerful (the single-threaded performance is pretty lame).

lanefu
lanefu
2 years ago

yeah looks like it’s pointing to the nvme node thanks.

I’m foolish enough that despite its deficiencies, it brings me joy. Will be interesting to see how it stacks up against Rock 5

lanefu
lanefu
2 years ago

oh.. second hwmon is pointing to gpu.. so yeah i guess blind on cpu temp for now….

tkaiser
tkaiser
2 years ago

> it brings me joy

Asides using another ISA what’s the point of this box compared to real Mini PC (that are smaller and most probably also more energy efficient when combined with a proper PSU)?

I mean, it even shares one of the valid concerns wrt x86: an exploit-ridden firmware allowing for malware persistence called UEFI.

lanefu
lanefu
2 years ago

It still brings me joy because I think it’s a cool computer.
