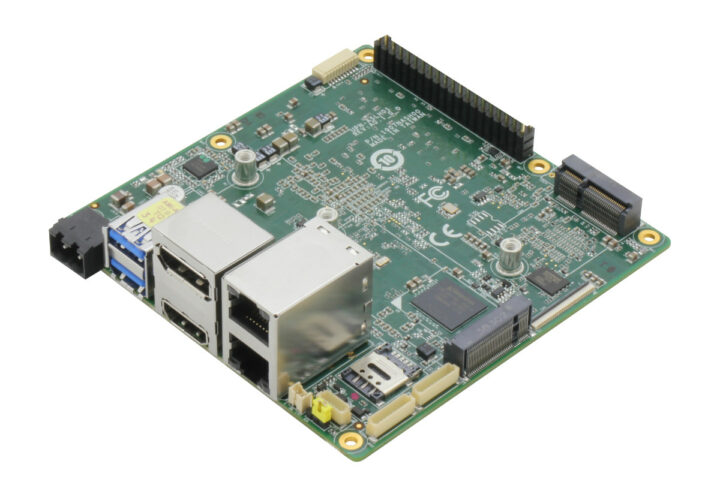

UP Squared Pro 710H SBC combines Alder Lake-N CPU with Hailo-8 AI accelerator for the machine vision market

AAEON UP Squared Pro 710H is a 4×4-inch SBC and developer board designed for machine vision applications with an Intel Processor N97 or Core i3-N305 Alder Lake-N CPU and a 26 TOPS Hailo-8 Edge AI processor.

The single board computer supports up to two MIPI CSI cameras via a 61-pin connector and offers expansion capabilities through a 40-pin Raspberry Pi-compatible header and three M.2 sockets for 5G, Wi-Fi, and NVMe storage support. While it’s only designed to operate in the 0 to 60°C temperature range, it does have industrial features such as 12V to 36V DC input and two RS-232/422/485 connectors.

UP Squared Pro 710H

UP Squared Pro 710H specifications:

  • Alder Lake N-series SoC (one or the other)
    • Intel Processor N97 quad-core processor up to 3.6 GHz with 6MB cache, 24EU Intel UHD Graphics Gen 12 @ 1.2 GHz; TDP: 12W
    • Intel Core i3-N305 octa-core processor up to 3.8 GHz with 6MB cache, 32EU Intel UHD Graphics Gen 12 @ 1.25 GHz; TDP: 15W
    • Other Alder Lake-N/Amston Lake processors including the Atom x7000RE Series are available upon request
  • AI accelerator – Soldered-on Hailo-8 edge AI processor with up to 26 TOPS for AI inferencing, data analytics, and multimedia processing
  • System Memory – Up to 16GB onboard LPDDR5
  • Storage – Up to 128GB onboard eMMC
  • Video Output – HDMI 2.0b and DP 1.2
  • Camera – MIPI CSI via 61-pin FPC connector
  • Networking
    • 2x 2.5GbE RJ45 ports via Intel I226-IT controllers
    • Optional M.2 2230 WiFi and Bluetooth module
    • Optional M.2 3052 4G LTE/5G cellular module + Nano SIM slot
  • USB
    • 2x USB 3.2 Gen 2 Type-A ports
    • 2x USB 2.0 from 10-pin header
  • Serial – 2x RS-232/422/485 ports via 10-pin header
  • Expansion
    • M.2 2230 E-Key (CNVI, PCIe Gen 3 [x1], USB 2.0) socket
    • M.2 2280 M-Key (PCIe Gen 3 [x2]) socket
    • Optional M.2 3052 B-Key with Nano SIM slot (USB 3.0)
    • 40-pin Raspberry Pi-compatible GPIO header
  • Security – Onboard TPM 2.0
  • Misc – RTC
  • Power Supply
    • 12V to 36V DC-in Phoenix connector (optional: Lockable plug)
    • Type – AT/ATX (AT as default)
  • Power Consumption (Typical) – 50 to 55W
  • Dimensions – 101.6 x 101.6 mm
  • Weight – 200 grams
  • Temperature Range – Operating : 0°C to 60°C with 0.5m/s airflow
  • Humidity – 0% ~ 90% relative humidity, non-condensing
  • MTBF – 422,053 Hours
  • Certifications – CE/FCC Class A, RoHS Compliant, REACH

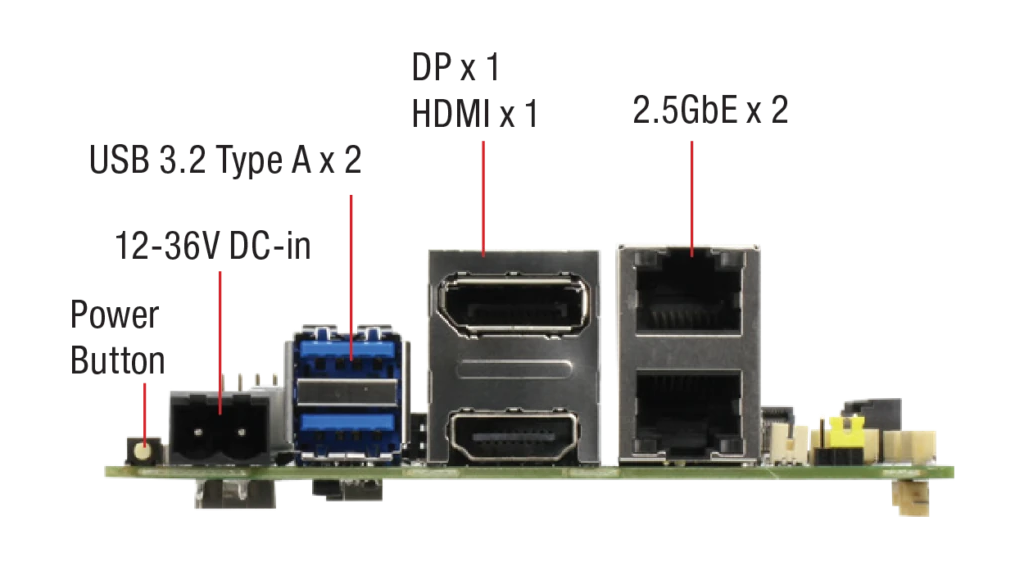

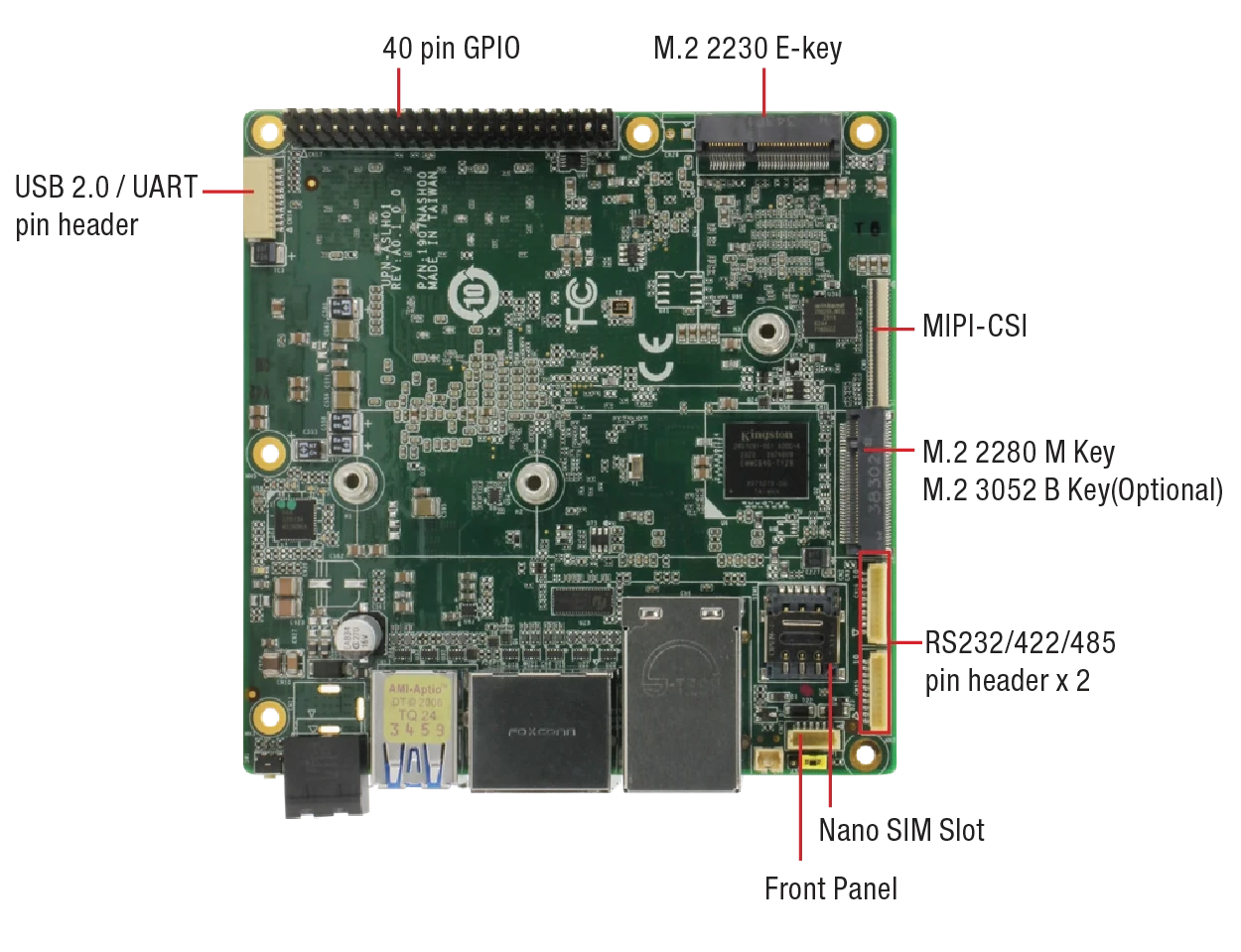

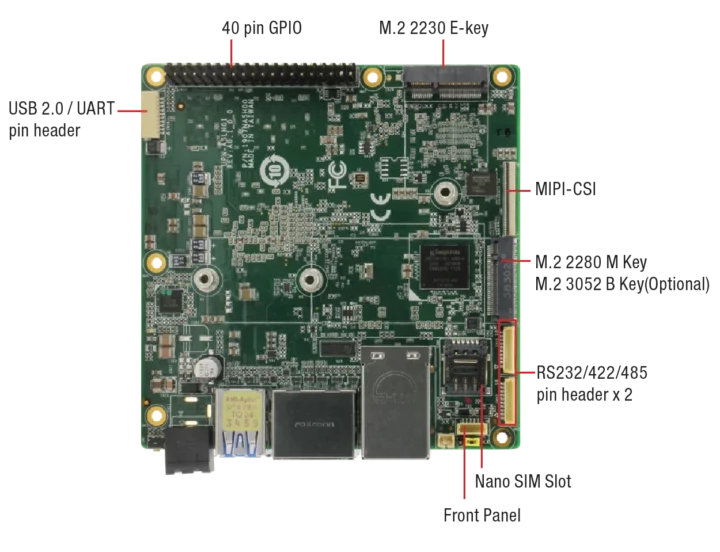

Intel Alder Lake N SBC 40 pin Raspberry Pi header AAEON SBC dual 2.5GbE USB 3.2 Wide DC input

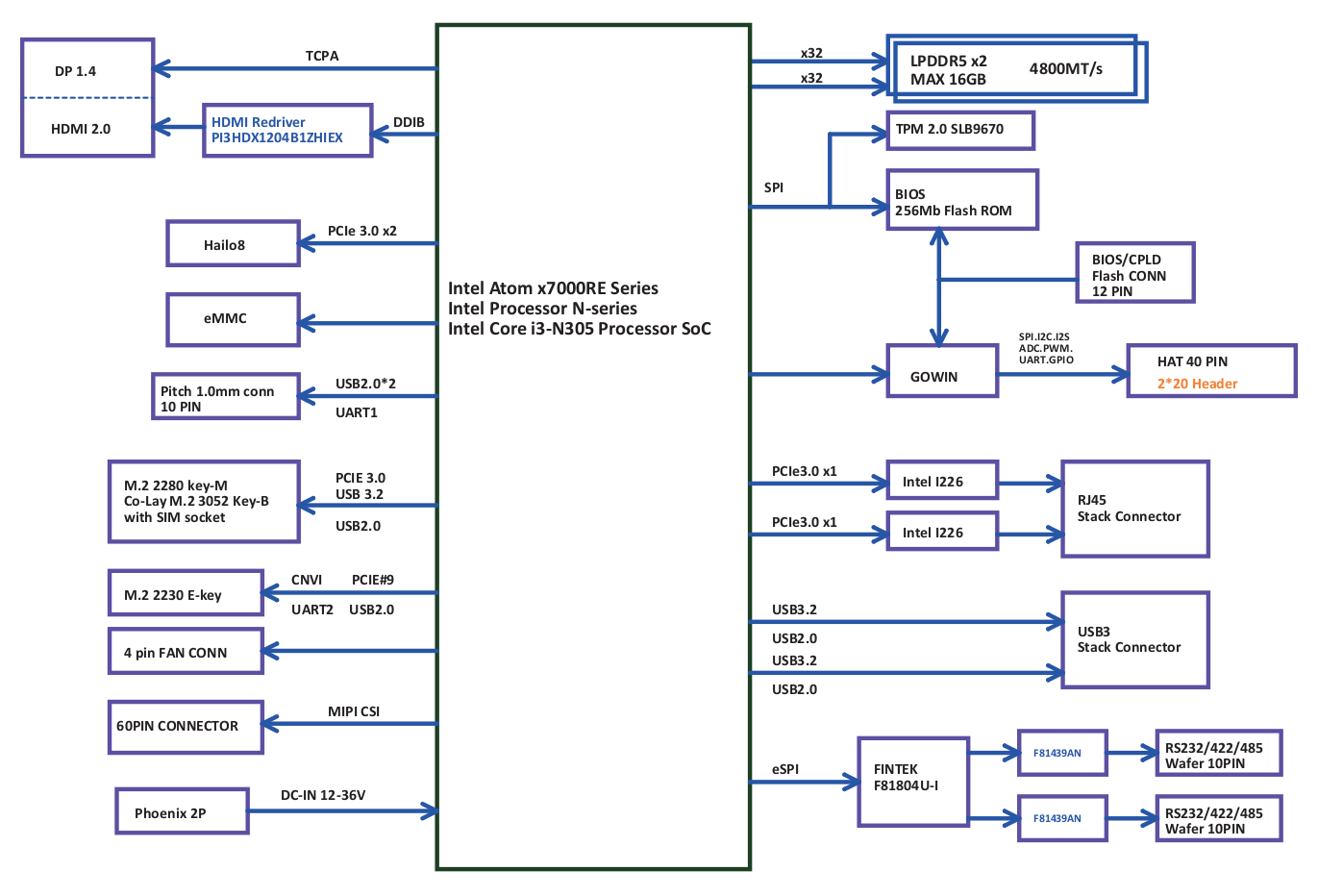

UP Squared Pro 710H block diagram
UP Squared Pro 710H block diagram

If the specifications seem familiar, it’s because the UP Square Pro 710H SBC powers the UP Squared Pro 710H Edge mini PC we covered last May, and somehow the company decided to introduce the mini PC several months before the development board.

Supported operating systems include Windows 10 IoT Enterprise, Ubuntu 22.04 LTS, and Yocto 4.0. The company also provides drivers for GPIOs, RS232/RS485 ports, MIPI CSI cameras, and more, as well as software frameworks with which to develop edge AI models running on the Hailo-8 NPU. More details and instructions on how to install OS images may be found on the wiki on the UP Community website.

Intel Alder Lake-N and Hailo-8 SBC

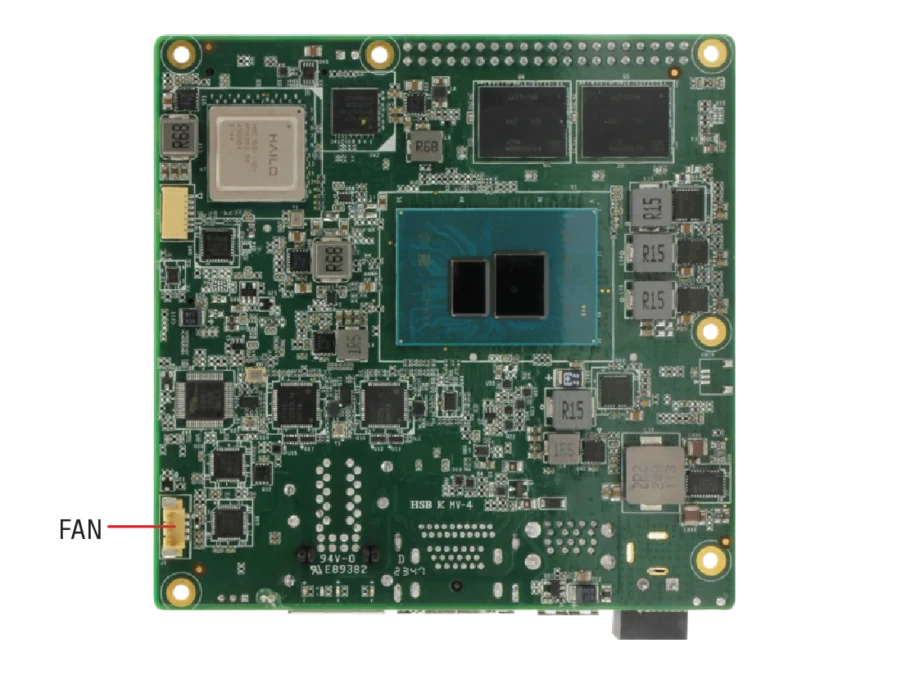

Bottom side of the UP Squared Pro 710H with Intel Alder Lake-N processor and Hailo-8 AI accelerator

AAEON would typically sell “UP Bridge the Gap” community boards through the UP Shop, but the UP Squared Pro 710H SBC is not listed there at this time. Instead, the company tells us that “pricing and availability queries can be answered via AAEON’s dedicated contact form”. The contact form is not working anymore, but that’s not a big issue, as you can find the company’s through the product page on AAEON (with somewhat incorrect specs since it was copied/pasted from the Edge mini PC page). For reference, the UP Squared Pro 710H Edge mini PC is sold for $568 with N97, 16GB DDR5, 128GB eMMC flash, and the SBC should be a bit lower than that. More details about both the UP Squared Pro 710H SBC and mini PC may be found on the product page on the UP community website.
