Renesas RZ/G2 64-Bit MPUs Target Industrial Applications Leveraging SLTS Linux

Renesas RZ/G1 Cortex-A15/A7 processor series was introduced in 2016 targeting industrial human machine interface, and RZ/G1M was one the the first processors supported by the industrial-grade CIP Super Long-Term Support (SLTS) Linux kernel – as part of Renesas RZ/G Linux Platform – with commitment of over 10 years of support.

The company has now launched a 64-bit version of the industrial processors with Renesas RZ/G2 family featuring up to eight Cortex-A53/A57 cores and supported by RZ/G Linux Platform for long term Linux support.

RZ-G2-CIP-SLTS-Kernel
RZ/G Linux Platform for Renesas RZ/G2 Reference Board

Renesas RZ/G2 family is now comprised of four SKUs with the following key features and specifications.

RZ/G2 Series RZ/G2E RZ/G2N RZ/G2M RZ/G2H
Economical Mid-Range (Pin Compatible) Highest Performance
CPU
(64-bit ARMv8A)
2x Cortex-A53 @ 1.2GHz
L1, L2 Parity/ECC
2x Cortex-A57 @ 1.5GHz
L1, L2 Parity/ECC
2x Cortex-A57 @ 1.5GHz
4x Cortex-A53 @ 1.2GHz
L1, L2 Parity/ECC
4x Cortex-A57 @ 1.5GHz
4x Cortex-A53 @ 1.2GHz
L1, L2 Parity/ECC
Performance 5.5kDMIPS 12.3kDMIPS 23.3kDMIPS 35.6kDMIPS
DRAM I/F DDR3L-1866 x 32-bit
(ECC)
LPDDR4-3200 x 32-bit
(ECC)
LPDDR4-3200 x 64-bit
(ECC)
LPDDR4-3200 x 128-bit
(ECC)
Video Codec FHD Resolution
H.265 Decoder
H.264/AVC
4K Resolution
H.265 Decoder
H.264/AVC
4K Resolution
H.265 Decoder
H.264/AVC
4K Resolution
H.265 Decoder
H.264/AVC
3D GFX PowerVR
GE8300 @ 600MHz
PowerVR
GE7800 @ 600MHz
PowerVR
GX6250 @ 600MHz
PowerVR
GX6650 @ 600MHz
Other Peripheral Functions USB 3.0, GbE, PCI-e, MIPI-CSI, LVDS USB 3.0, SATA, PCI-e, GbE, MIPI-CSI, HDMI USB 3.0, PCI-e, GbE, MIPI-CSI, HDMI USB 3.0, SATA, PCI-e, GbE, MIPI-CSI, HDMI

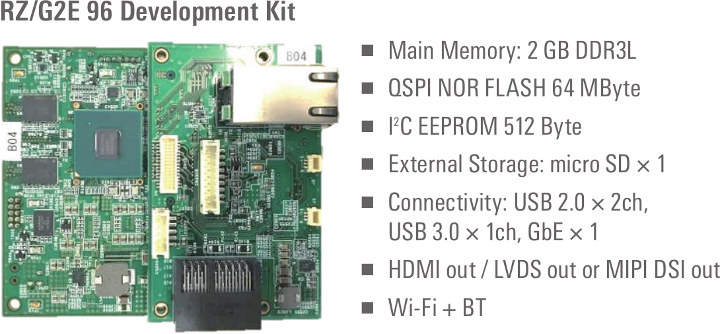

Renesas will offer two development boards compliant with 96Boards specifications, namely RZ/G2E 96 Development Kit powered by the dual-core RZ/G2E Economical model with 2GB DDR3L, 64MB QSPI flash, GbE, USB 3.0, HDMI out, and more…

RZ/G2E 96 Development Kitas well as the RZ/G2M 96 Development Kit with mid range RZ/G2M hexa-core Cortex A57/A53 processor, 4GB DDR4, a  SATA port, Gigabit Ethernet, USB 3.0, HDMI, MIPI DSI, etc…

RZ/G2M 96 Development Kit

I’m struggling to understand how any of those two boards can be 96boards compliant, and there seems to be a combination of 96boards SBC plus a mezzanine for both models.

The RZ/G2 MPUs will be available in four devices – RZ/G2E, RZ/G2N, RZ/G2M, and RZ/G2H – with configurations including the eight-core RZ/G2H, the six-core RZ/G2M, and the two-core RZ/G2N and RZ/G2E.

The six-core RZ/G2M and two-core RZ/G2E are available now, but the RZ/G2N and RX/G2H processors will be released later on. Mass production is currently scheduled to start in Q1 2020. More details can be found in the product page.
