NanoPC-T4 Review with Android 7.1 Firmware

NanoPC-T4 is one of the many Rockchip RK3399 SBCs now available, and as we’ve seen in the “unboxing review” the company sent me two samples. So far, I’ve been reviewing RK3399 boards with Linux distributions in posts such as “Checking Out Debian and Linux SDK for VideoStrong VS-RD-RK3399 Board” and more recently “AIO-3399J Development Board Review with Ubuntu 16.04“. But in this NanoPC-T4 review, I’ll switch to Android, specifically Android 7.1, as I’ll soon try Android 8.1 on Firefly-RK3399 which might make for an interesting comparison between the two versions of the OS, before switching to Linux with Pine64 RockPro64 board which I received yesterday.

First Boot with NanoPC-T4 Development Board

I had already assembled  the board in the first part of the review, so I just added the two WiFi antennas, the optional USB to serial debug board, and connected various accessories and cables from left to right: USB keyboard and mouse, HDMI cable to 4K TV,  USB 3.0 expansion drive, Ethernet cable, and power adapter. I also prepared the RF dongle for MINIX NEO A2 Lite air mouse since I’ll use it later in the review.

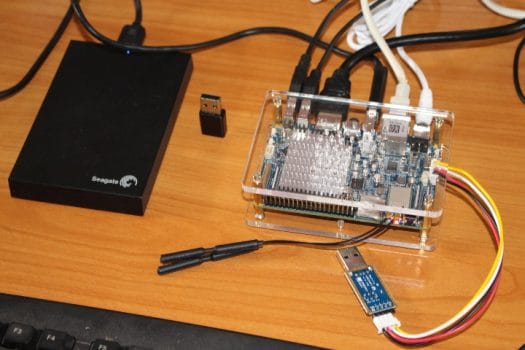

NanoPC T4 Connected
Click to Enlarge

There’s also a USB type C port with data and DisplayPort alternate board support, but I won’t test it in this review simply because I’ve already tested it with MINIX NEO C Plus USB-C adapter and managed to drive two HDMI displays over the USB type C port, and managed accessories like flash drives and mouse. The only major issue I really had was that USB-C and HDMI output ports can not work at the same. But one user commented that’s because the image defaults to HDMI and eDP, and it’s possible to change the device tree file to have HMDI and DisplayPort over USB-C work at the same time:

I have the same issue with other USB-C to HDMI adapter. The NanoPC-T4 default display config is “HDMI + eDP”, so I modify the dts file to “HDMI + DP” config , VOP_LIT(2K) for HDMI and VOP_BIG(4K) for DP, it works fine now

I have not had time to look into it in details yet, but will write a separate post if time permits.

Back to the first boot… Once you connect the power nothing happens. That’s because you need to press the power button on the right the antenna connectors to boot the board. If you’re going to use the serial console the connection parameters are the typical – for Rockchip devices – 1,500,000 bps  8N1 no flow control.

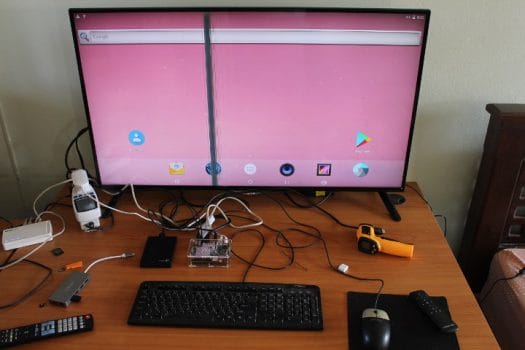

NanoPC-T4 First Boot AndroidFirst, ignore vertical line just a problem with my LG 4K TV. Second, something does not look too good as the Android launcher is not showed a proper landscape mode. I went to the settings, and could change display orientation, but then  I noticed HDMI output was limited to 1080p only.

NanoPC-T4-About-TabletSo I went to check the firmware version: May 1, 2018. We are in August, so there must be a newer image.

Upgrading Android Firmware in NanoPC-T4

Going to the board’s Wiki, we’ll find the list of firmware images for NanoPC-T4, and for Android, I could only find an “eflasher” Android image (rk3399-eflasher-20180728-android.img.zip) for the board. What are those? Rockchip already have plenty of options to flash firmware to a board or device: OTA over network or micro SD card, graphical tools to flash over USB port for Windows or Linux, command line tools for Linux, and other tools to create a bootable image.

eFlasher is yet another method where a bootable micro SD card is flashed tools like Win32DiskImager, dd, or Etcher, and upon boot it will launch an upgrade program to flash the firmware to the internal flash storage.

NanoPC-T4 Android Firmware FlashingI went with Etcher since it validates the micro SD card after flashing. I then just inserted the micro SD card into the board, and pressed the button for over 1.5 seconds.

NanoPC-T4 Android eFlasher

After a few short seconds the flashing application starts. Now use an air mouse or USB mouse to click on “Android 7” logo…

NanoPC-T4 Android Firmware Update Info
Click to Enlarge

… It will show some details about the firmware, and you can click on Next to start the process.

NanoPC-T4 Android Firmware UpgradeIt took around 2 minutes here, and upon completion it will automatically reboot, and I got my display problem fixed.

NanoPC-T4 Review Android 7.1 Firmware
Click to Enlarge

Android Info and Settings

I could also select 4K UHD resolution in the settings like 3840×2160 @ 60 Hz or 4096×2160 @ 24 Hz, and even fractional refresh rate such as 59.94 Hz or 23.98 Hz.

NanoPC-T4 4K UHD ResolutionBeside HDMI resolution, you’ll also have the “Screen Zoom” option to adjust for potential overscan issues,  and HDMI rotation to rotate the screen 0, 90,  180, or 270º.

I’ll go through some of the other settings to show interesting parts.

NanoPC-T4 Android Setttings

There aren’t too many custom options in the current firmware. Ethernet options, VPN, Tethering & portable hotspot can be found in More in the Wireless & networks section

NanoPC-T4 Android Ethernet Settings

Storage shows 3.03GB used out of 14.56GB in the internal share storage partition, and the system could mount EXT-4 and NTFS partitions in my hard drive, but not BTRFS and exFAT. That should just be a tweak the SDK (Linux kernel) to enable both file systems. FAT32 was also supported in a micro SD card.

NanoPC-T4 Android Storage

The About section shows the updated firmware was still based on Android 7.1.2 and Linux 4.4.83, and featuring the same April 5,2017 security patch level.

NanoPC-T4 About Android

Pre-installed applications included the Play Store and RKMC, a fork of Kodi 16.1 with optimization for Rockchip processors.

NanoPC-T4 Default Apps
Click for Original Size

I install both DevCheck and ES File Explorer in the sreenshot above, all others were already installed. There’s also a SerialPort Assistant that may be useful to control communication USB dongle or PCIe cards with AT commands.

If you want more system information, check out the DevCheck app post I’ve written using NanoPC-T4 as the test device.

Video Playback

Let’s do some actual testing with 1080p and 4K video using RKMC app that comes with some pre-installed add-ons  like Navi-X, Netflix, YouTube, FTV Guide, etc…

NanoPC-T4-Kodi-RKMC
Click for Original Size

Before playing video, I changed some settings for automatic framerate switching and enabled VP9 hardware decoding (which was disabled by default).

RKMC SettingsI played videos from the NTFS partitions of the drive  connected to the USB 3.0 port of the board starting with some Linaro media + Elecard samples:

  • H.264 codec / MP4 container (Big Buck Bunny) – 1080p – OK
  • MPEG2 codec / MPG container – 1080p – OK
  • MPEG4 codec, AVI container – 1080p – OK
  • VC1 codec (WMV) – 1080p – OK
  • WebM / VP8 – 1080p – OK
  • H.265 codec / MPEG TS container – 1080p – OK

All video were decoding with RKCodec (hardware video decoding) so Core 4/5  (2x Cortex A72) were barely used at all. Automatic frame rate switching was not working however, and all video were played using 2160p60 video output.

I carried on with some 4K videos:

  • HD.Club-4K-Chimei-inn-60mbps.mp4 (H.264, 30 fps) – OK
  • sintel-2010-4k.mkv (H.264, 24 fps, 4096×1744) – OK
  • Beauty_3840x2160_120fps_420_8bit_HEVC_MP4.mp4 (H.265) – OK
  • BT.2020.20140602.ts (Rec.2020 compliant video; 36 Mbps; 59.97 Hz) – Audio only, stays in UI.
  • big_buck_bunny_4k_H264_30fps.mp4 – OK
  • Fifa_WorldCup2014_Uruguay-Colombia_4K-x265.mp4 (4K, H.265, 60 fps) – OK
  • Samsung_UHD_Dubai_10-bit_HEVC_51.4Mbps.ts (10-bit HEVC / MPEG-4 AAC) – OK
  • -4K.mp4 (10-bit H.264; 120 Mbps) – OK most of the time, but some audio cuts and artifacts in some scenes
  • tara-no9-vp9.webm (4K VP9 YouTube video @ 60 fps, Vorbis audio) – OK
  • The.Curvature.of.Earth.4K.60FPS-YT-UceRgEyfSsc.VP9.3840×2160.OPUS.160K.webm (4K VP9 @ 60 fps + opus audio) – Mostly OK, but some scenes are not 100% smooth (as on many other TV boxes).

Bear in mind that RK3399 is NOT a TV chip, so it does not support some feature like HDR (High Dynamic Range) found in recent media processors.

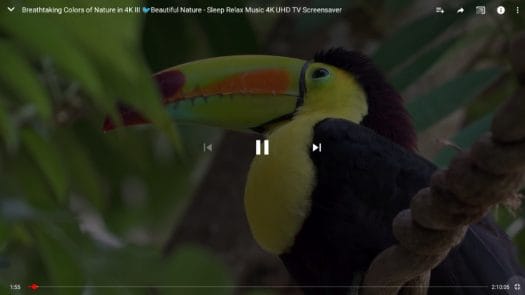

I also tried YouTube, and it can play videos up to 1080p resolution.NanoPC-T4 Youtube 1080pThe only problem is that controls and video titles at the top, center and bottom will never hide, even after several minutes. It’s probably just some silly bug that will be fixed in an upcoming firmware however.

Youtube Controls Not Hiding Android
Click to Enlarge

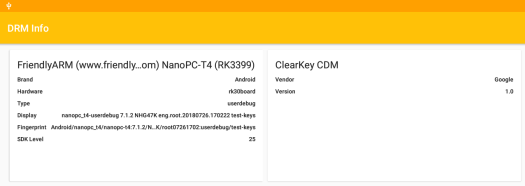

DRM Info shows only ClearKey CDM is enabled, so no Google Widewine, nor Microsoft Playready. Those should not be expected in a development board though.

NanoPC-T4 DRM Info
Click to Enlarge

It might be possible to get Widewine Level 3 since it’s a free option. For other, you’d have to pay for it for your commercial projects, and I’m not sure how this is handled in details.

NanoPC-T4 Benchmarks

Time for some benchmarks starting with Antutu 7.1.

NanoPC-T4 RK3399 Antutu
Click to Enlarge

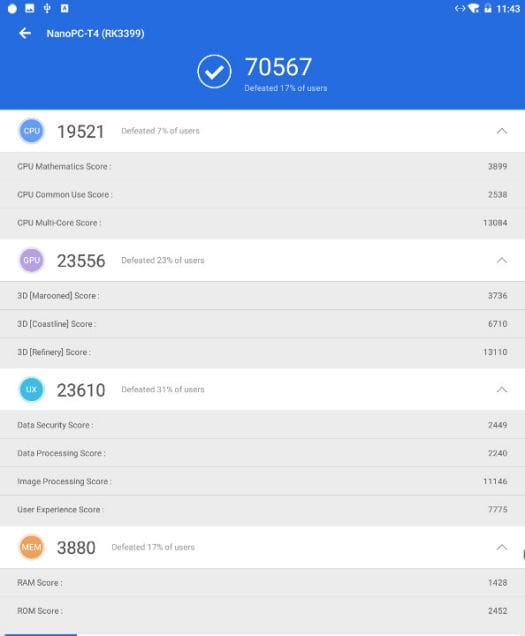

NanoPC-T4 achieved 70,657 points. Note this can not be compared to Antutu 6.x results, and I don’t have many Antutu 7.x results. For reference, Onda V18 Pro tablet powered by  Allwinner A63 quad core Cortex A53 processor @ 1.80 GHz get 55,000 points.

NanoPC-T4 3DMark Ice Storm Extreme
Click to Enlarge

I also installed 3DMark to check 3D performance. Ice Storm Extra results: 7,566 points. It does seem quite low compared to Vorke Z3 and Yundoo Y8 RK3399 TV boxes which both get around 9,700 – 9,900 points.

NanoPC-T4 3DMark Sling Shot Extreme OpenGL ES 3.1
Click to Enlarge

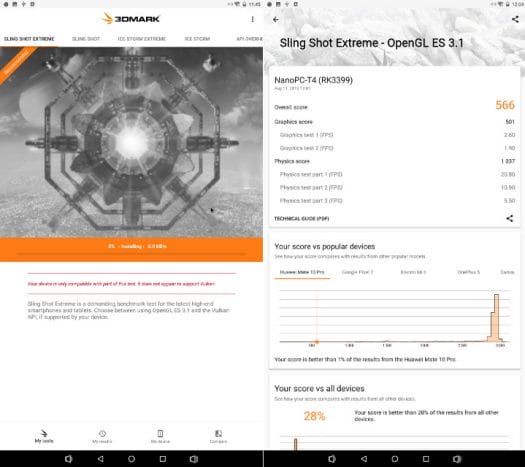

I also ran Sling Shot Extreme, which reports Vulkan is not supported, so the test was run using OpenGL ES 3.1. Against I don’t have a lot of data for that test, and AFAIK I only run it on Vernee Apollo Lite smartphone with a MediaTek Helio X20 processor. Score:  995 points

Storage Performance

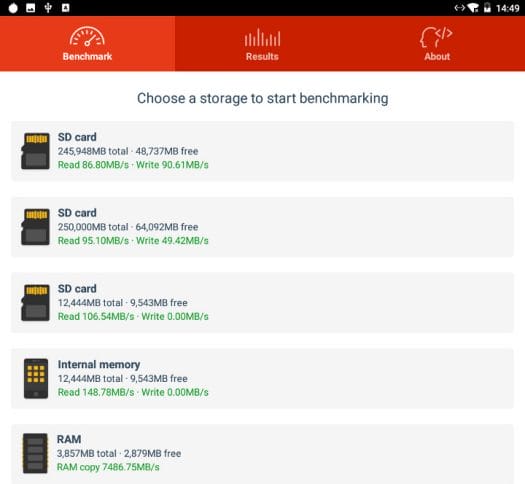

A1 SD bench app is normally a decent app to get sequential speed performance data, but for whatever reasons, I struggled to get write speed values, and had to repeat the tests several times. I finally have up on the eMMC write speed, as it would never work.

NanoPC-T4 A1 SD benchmark
Click to Enlarge

But the results are in for USB 3.0 and internal storage:

  • USB 3.0 EXT-4 – Read: 86.80 MB/s; write: 90.61 MB/s
  • USB 3.0 NTFS – Read: 95.10 MB/s ; write: 49.42 MB/s
  • eMMC flash – Read 106.54MB/s or 148.78 MB/s, so tere’s some variability there…

So USB 3.0 EXT-4 is roughly where it should be a mechanical hard drive, while USB 3.0 NTFS read speed is also OK, but write speed might be improved. The eMMC flash results are incomplete, but at 100 to 150 MB/s sequential performance is pretty good for a 16GB eMMC flash, although not quite as good as the one in AIO-3399J board that delivers close to 300 MB/s (in Ubuntu). The exact model used in NanoPC-T4 is Samsung KLMAG1JENB-B041 eMMC 5.1 flash chip (EOL) with theoretical speeds of 285 MB/s (read) and 40 MB/s (write), as well as 8K/10K random R/W IOPS, still very values. I’m not sure why we don’t get closer to 285 MB/s with A1 SD bench, but it’s been that way in other Android devices too.

Network Performance – Gigabit Ethernet and WiFi AC

I’ll use iperf for both Gigabit Ethernet and 802.11ac WiFi. Le’ts start with Gigabit Ethernet:

  • iperf full duplex (both direction at the same time)


The performance is not quite maxed out in either direction. I’ve been told in previous reviews that it might be due to the transfer being assigned to Cortex A53 cores instead of Cortex A72 cores, but I’m not sure how to change that in Android.

  • Upload only

  • Download only


But if we can in one direction only, then the Gigabit Ethernet bandwidth is basically maxed out. So no problems here.

and now WiFi 802.11ac:

  • upload

  • Download


I normally get close to 250 Mbps over 802.11ac, and I would have expected similar performance, especially the router is now just one meter away from the DUT. I used to be around 3 meters away behind a ~10cm thick wall

Misc Tests

Gaming

I played the three games I normally feature in TV box reviews:

  • Candy Crush Saga
  • Beach Buggy Racing with maximum resolution settings
  • Riptide GP2 with maximum resolution settings

I played Candy Crush Saga with the keyboard and mouse, and as expected everything went smoothly. I then connected the USB dongle of Tronsmart Mars G01 wireless gamepad to the USB port right next to the HDMI port on the board, and I noticed some stability problems with the gamepad losing signal frequently. I moved it to the USB port on the left, and all problems disappeared!

I could play Beach Buggy Racing for 45 minutes with no problem, and the game being super smooth. I then switch to Riptide GP2 for 15 more minutes, the framerate felt more like 15 to 25 fps, which remain playable, not far from perfect. The graphics details however seemed higher than lower end hardware based on processors with a Mali-450MP. See screenshot below for reference.

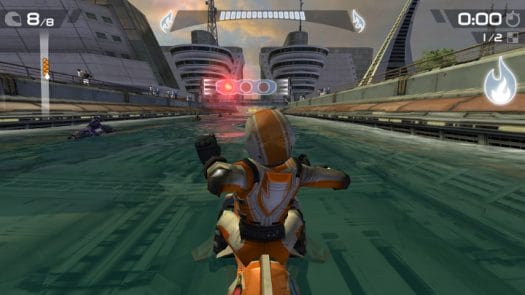

Riptide GP2 Screenshot
Click for Original Size

I measured temperature on the side of the heatsink (to avoid the acrylic case) and temperature was 66°C. I also went to CPU-Z, but there was not CPU/GPU tempeature in that app, so instead I reverted to DevCheck with the GPU and CPU temperatures being 81°C and 80°C respectively roughly one minute after exiting the game.

DevCheck NanoPC-T4 TemperatureSo it’s likely some throttling was involved here, and a larger heatsink and/or a fan might be needed for better performance.

Bluetooth

I could pair Xiaomi Mi A1 Android phone to the board, and transfer a few photos to the board. I also connected X1T Bluetooth earbuds, and watch a few music videos. No problems at all in either cases.

Power Consumption

Finally I measured power consumption in various states:

  • Power off – 0.1 ~ 0.2 Watt
  • Standby – 1.4 Watts
  • Idle – 6.3 ~ 6.4 Watts
  • Power off + USB HDD – 0.1 ~ 0.2 Watt
  • Standby – 4.2 Watts
  • Idle + USB HDD – 10.2 ~ 10.4 Watts

That will be all for today. If you are interested in getting the board, you can now do so for $109.99 + shipping on FriendlyArm website.
