ASUS unveils Tinker V RISC-V single board computer, Tinker board 3 SBC with Rockchip RK3568 SoC

ASUS IoT has added two new members to the Tinker board family with the Tinker V and Tinker Board 3 single board computers powered by respectively Renesas RZ/Five single-core RISC-V SoC and Rockchip RK3568 quad-core Arm Cortex-A55 processor.



Tinker V specifications:

  • SoC – Renesas RZ/Five single core AndesCore AX45MP RISC-V processor clocked at 1.0 GHz
  • System Memory – 1GB DDR4
  • Storage – MicroSD card slot, optional 16GB eMMC flash, optional SPI flash
  • Networking – 2x Gigabit Ethernet RJ45 ports
  • USB – 1x Micro USB port, 1x Micro USB (OTG) port
  • Serial –
    • 2x CAN Bus via 6-pin terminal block
    • 2x COM RS232 via 5-pin terminal block
  • Expansion – 20-pin GPIO header with up to 2x UART, 2x I2C, 4x GPIO, 2x ADC, 1x SPI, 3.3V, and GND
  • Debugging – JTAG pin header
  • Power Supply – 10 to 24V DC via 5.5/2.5 mm DC barrel jack
  • Dimensions – Pico-ITX board
  • Temperature Range – -20 to +60°C

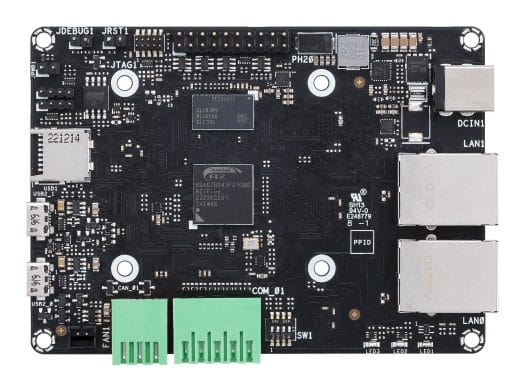

Renesas RZ/Five single board computer

The Tinker V board runs Linux and is designed for the industrial IoT developer community. The board does not seem to be available just yet, and the documentation is not ready at this stage. More details may be found on the product page.

Tinker Board 3

Tinker Board 3

Tinker Board 3 specifications:

  • SoC – Rockchip RK3568 quad-core Arm Cortex-A55 processor with Arm Mali-G52 GPU
  • System Memory – 2GB, 4GB, or 8GB LPDDR4/LPDDR4X
  • Storage – MicroSD card slot, 16MB SPI flash, optional 32GB or 64Gb eMMC flash
  • Display
    • 1x HDMI with CEC hardware ready
    • 40-pin LVDS dual-link + eDP connector
    • 5V panel backlight & control header
  • Audio
    • 1x 3.5 headphone jack (w/ mic)
    • 1x stereo speaker header (4 Ohm, 3W each)
    • Digital audio via HDMI
  • Connectivity
    • 2x RJ45 Ethernet ports
    • Optional Wi-Fi / Bluetooth via M.2 E-key 2032 module; default: 802.11 a/b/g/n/ac WiFi 5 & BT 5.0 (2T2R)
    • Optional 4G / 5G cellular via M.2 B-Key 3042/3052 module + SIM card slot
  • USB
    • 1x USB 3.2 Gen1 Type-C OTG port
    • 2x USB 3.2 Gen1 Type-A ports
    • 2x USB 2.0 interfaces via header
  • Serial – CAN Bus 2.0B FD, 2x RS232, 1x RS232/422/485 all via pin header
  • Expansion
    • M.2 E-Key 2032 socket with PCIe 2.0 x1, USB 2.0
    • M.2 B-Key 3042/3052 with PCIe 3.0 x1, USB 3.0, USB 2.0, SIM
    • 12-pin GPIO header with up to 2x UART, 1x I2C, 1x SPI, 1x SPDIF, 4x PWM, 2x 8-bit ADC, GND
  • Misc
    • IR receiver header
    • 2-pin Recovery header
    • 4-pin Power-on & Reset header
    • 3-pin Debug UART header
    • 4-pin DC Fan header
    • 2-pin RTC Battery header
  • Power Supply
    • 12 to 24V via 5.5/2.5mm DC barrel jack
    • 4-Pin power-in header (also for POE module)
  • Dimensions – 100 x 100 mm
  • Temperature Range – Operating: -40°C to 85°C; storage: -40°C to 85°C
  • Humidity – 10% ~ 85% non-condensing (storage)
  • Longevity – 7 years

ASUS IoT will provide Debian 11 and Android 12 images for the Tinker Board 3, as well as support for the Yocto Project, but again the documentation is not available at this stage. The Rockchip RK3568 SBC should not provide any benefits in terms of CPU or GPU performance compared to the ASUS Tinker Board 2S SBC powered by the Rockchip RK3399/OP1 processor, but the new Rockchip processor offers many more interfaces many of which are exposed through the latest Tinker Board 3 board.

The Tinker Board 3 will be integrated into industrial applications such as HMI automation controllers, self-service kiosks, digital signage, and other IIoT applications. The company will also offer PP-101W-3568 and PP-156W-3568 capacitive touch panels respectively 10.1- and 15.6-inch models to help with integration into products. Additional information may be found on the product page.

Via ASUS EW23 press release and Liliputing.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus

10 Replies to “ASUS unveils Tinker V RISC-V single board computer, Tinker board 3 SBC with Rockchip RK3568 SoC”

  1. Interesting to see another vendor abandonning the RPi form factor. I think that this stupid constraint which has plagued many boards for a decade by limiting their connectivity is now behind us, and vendors will start to make boards that suit their customers’ needs. That’s good.

    1. There are many advantages to standard layouts, most deviations (this included) are too specialised to get more flexibility.

      What we really need are a few carefully assessed firm factors, not hundreds of variations.

      1. There are advantages to standard ones, yes, when they’re properly thought. Rpis cannot be placed side by side because they need connectors on two adjacent sides. You cannot even place them inside a larger enclosure for the same reason. Most standard designs (like pico-itx) use only one side so that the board can be placed inside any enclosure to form a final product.

  2. If this is like ASUS earlier Tinker Boards expect to only ever have support for an old smelly SOC vendor kernel. The Tinker Edge R still only has support for v4.4.194 kernel and the Tinker Edge T is in even worse shape!

    1. This is still a huge problem, and mostly originates with the SOC vendor. Unfortunately the Chinese market still doesn’t understand open source for the most part.

      1. > the SOC vendor … the Chinese market

        Ray talked about two SBC of which one is based on RK3399 (Rockchip started with a 4.4 on this SoC, then provided a 4.19 and now a 5.10 and mainline support is almost complete also in the meantime) and the other on NXP i.MX8 (not exactly Chinese and AFAIK also good to use with mainline).

        It seems the board vendor simply doesn’t give a sh*t and also didn’t manage to build up a community…

        1. I only know about RK3399Pro, kind of RK3399. but still not the same one. rockchip let it as special for AI use only, so they didn’t regular update the rootfs.

          1. Yes, Tinker Edge R is RK3399Pro and there is currently only one RK3399Pro device supported by mainline kernel (Radxa RockPi N10). ASUS itself supplies nothing newer than the 4.4 kernel with Debian 10.

          2. Why should the rootfs matter?

            It’s about kernel support and that is there. It’s ‘just’ adopting the device-tree (using Radxa’s N10 as sceleton and by comparing the 4.4 DT files making the adjustments). Of course this is something the device vendor should provide but Asus shows pretty poor performance with ARM unlike their x86 offerings.

  3. The ASUS Tinker 3 is now known as the ASUS Tinker 3N.
    Still no pricing or availability information.
