What’s the Best Android TV Box (2017/2018 Edition)?

Since I was often asked which TV box to buy, I wrote a guide entitled “What’s the best Android TV box?” in April 2016. Time has passed, new products have launched, I tested more devices, and got further reader feedback, so it’s time for an update.

There’s still no device that rules them all, and since everybody has different requirements and price points, what could the best Android TV box ever to one person, maybe be a piece of junk to another. Before purchasing a TV box, you should consider what you plan to do with it, and find the device with matches your needs and budget. So first, I’ll provide a list of things to look for – beside the SoC/RAM selection – before selecting three TV boxes that stand out (in no particular order), as well as alternatives worth looking at.

Things to Look for

The list is basically the same as last year, except I added two sections for operating systems, and extra features:

  • Operating System – There was a time when “Android TV box” only meant “Android” “TV Box”, but Google’s own TV box operating system has become more popular, and some companies have also started offering dual OS version with Android/Linux running at the same time, mostly for server purpose. Here are the options you may consider:
    • Official Android TV OS – Pick such device if you want the original experience with leanback launcher, and access to streaming services like Hulu, Netflix an so on. This operating system should come with all/most the licenses needed for streaming, is specially designed for the large screen, and works well with the IR remote control. However, you’ll only be able to easily install apps specifically designed for the TV (e.g. no Chrome browser, unless you sideload it), and the system may not always work well with an air mouse or wireless keyboard/touchpad.
    • Unofficial Android TV OS – Same as above, except some licenses may be missing, so some streaming services may not work as well, or be limited standard resolution
    • Android OS – Most – not to say all – boxes you’ll find in China are running Android operating system made for smartphones with customizations for the big screen. Those devices have good flexibility, since you can install pretty any app from the Google Play store, and they come with a launcher made for the big screen. The downside is that only parts of the interface or some apps will be usable with the IR remote control, so you’ll need to use an air mouse, wireless keyboard, or smartphone app to have good control of the device. Most boxes also lack proper DRM and other licenses, which may restrict the streaming services you may access, or at least the playback resolution.
    • Android + Linux – Dual boot systems have been around for a while, and IMHO not very useful, so what I’m referring to here are systems with two operating systems running at the same time with Android for media playback, and Linux for NAS/server functions. I’ve seen devices with OpenWrt or Debian so far.
  • History of regular firmware updates – If a company provides regular OTA (over-the-air) firmware updates, your device is likely to get better and better overtime. The cheapest TV boxes normally follow the ship-and-forget model, so you can’t expect any improvements, unless some community members offer custom firmware.
  • Support forums – Most reputable companies selling to end users offer support forums. For cheaper boxes, you won’t get any support, except through communities like Freaktab.
  • 4K & HDR Support – If you want to purchase a device that will support 4K videos, and the latest HDR (High Dynamic Range features) you should look for devices with HDMI 2.0a for 3840×2160 or 4096×2160 output up to 60 Hz and HDR. Double check 4K video codecs support (10-bit HEVC/H.265, VP9, H.264), and make sure they can decode the framerate used for your videos. The latter is usually not a problem with H.265, but sometimes it could be for VP9 or H.264 since some systems can only handle 30 fps or 24 fps.
  • 5.1 or 7.1 HD audio pass-through support – In case you own an amplifier or A/V receiver capable of handling Dolby TrueHD, Dolby Atmos, DTS HD Master, DTS HD High Resolution, or DTS:X, you really need to check the reviews on this site or others, as many devices fall short despite claiming support.
  • Automatic frame rate switching – This is the ability of the device to match the monitor refresh rate to the video frame rate to avoid a phenomenon called micro stutter, which makes the videos not as smooth as it could be at regular intervals, and especially noticeable when the video is panning. if this is properly implemented, e.g. 24 fps videos played using 24 Hz on the monitor, then micro-stutter disappears.
  • DRM support for HD and UHD video streaming – If you’re paying for video streaming services like Netflix, you’ll have to make sure they are specifically supported, with Widewine Level 1 DRM necessary, but not sufficient condition for playing the videos at HD or UHD (4K) resolution. Most devices can only stream videos in SD resolution due to the lack of proper DRM and a hard-to-get “Netflix license”.
  • Thermal design and storage performance – Many Android TV boxes have similar specifications, but IMHO, two key design choices are especially impacting the performance between apparently similar devices. Some TV boxes will overheat over time, leading to poor performance after a few minutes, while others with proper cooling will perform the same over hours. Fast storage will ensure the device boots quickly, apps load fast, and the device does not get slowed down while apps are installing or updating in the background.
  • Extra Features – You’d normally not care about those, if all you want is to do streaming, but if you want more from your TV box, you could check for digital TV tuner(s) (DVB-T/T2/C, DVB-S2, ATSC..), the presence of a an internal SATA bay, HDMI input for recording or broadcasting video from another device, etc…

MINIX NEO U9-H Media Hub

Click to Enlarge

Criteria:

  • Operating System – Android 6.0.1 OS
  • History of regular firmware updates – MINIX normally updates their devices for about a year or so.
  • Support forumsMINIX forums are fairly active, so you should be able to get decent support from MINIX themselves or the community of users there.
  • 4K & HDR Support – HDMI 2.0a up to 4K @ 60 Hz is supported, with very good support for 4K 10-bit H.265, VP9 and H.264 videos.
  • 5.1 or 7.1 HD audio pass-through support – Dolby TrueHD and DTS HD audio pass-through both working.
  • Automatic frame rate switching – OK (Kodi 17.x)
  • DRM support for HD and UHD video streaming –  Widewine Level 1 & Microsoft PlayReady implemented. However, Netflix can only play up to SD resolution, or possibly up to HD (720p) with a trick, but not full HD, nor UHD since Netflix requires a separate agreement.
  • Thermal design and storage performance – Good cooling thanks to a large heatsink, and very fast internal storage.
  • Extra Features – Separate microphone jack, Kensington lock

Just like MINIX NEO U1 I recommended last year, as long as you don’t need Netflix Full HD or 4K UHD playback, and are happy using their custom launcher and an air mouse, MINIX NEO U9-H should definitely be in your list of devices to consider. Please read MINIX NEO U9-H review for details, taking into account that some bugs may have been fixed since my review in March 2017.

Price: $149.90 and up with NEO A3 Lite air mouse on Amazon US, GearBest, GeekBuying, and other sellers. You can also find the box only (without air mouse) for around $139.90.

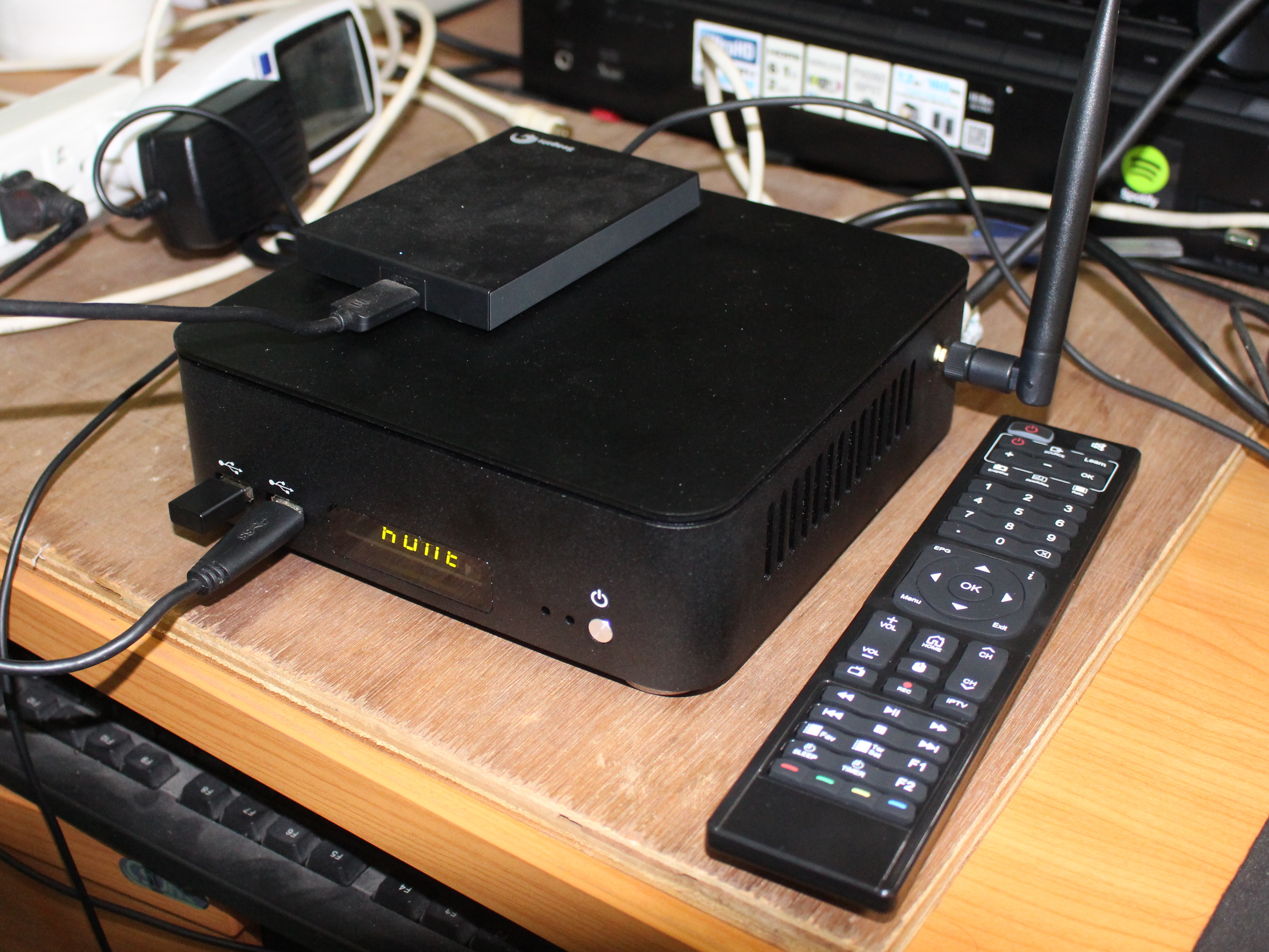

U5PVR Deluxe Set-top Box and NAS

Click to Enlarge

U5PVR Deluxe made it to the top three list because of all the extras like tuners and a 3.5″ SATA drive, and the fact that it runs both Android TV OS (unofficial) and Debian.

Criteria:

  • Operating System – Unofficial Android TV 5.1 OS and Debian running at the same time. Android TV 7.1 is now also available, as well as a dual boot image with Enigma2.
  • History of regular firmware updates – The company has released several firmware updates since the review. Previous model was U4 Quad Hybrid – Launch: January 2016; last firmware update: November 2016. So a little under a year of firmware updates.
  • Support forums – Available on SmartSTB forums (Somewhat active), or Google+ (not so active). The device is not as popular as MINIX models, so you’ll have less users involved.
  • 4K & HDR Support – HDMI 2.0a up to 4K @ 60 Hz is supported, with very good support for 4K 10-bit H.265, VP9 and H.264 videos in Media Center app (but Kodi 17.x support needed some work)
  • 5.1 or 7.1 HD audio pass-through support – Dolby TrueHD and DTS HD audio pass-through worked in Media Center app.
  • Automatic frame rate switching – OK (Media Center app)
  • DRM support for HD and UHD video streaming –  Support for Widevine L1 DRM and Netflix HD/4K (Not in my June 2017 review, but see comments)
  • Thermal design and storage performance – Excellent internal storage performance, and no noticeable issue with cooling (See teardown for design)
  • Extra Features – SATA bay for a 2.5″ or 3.5″ drive, dual DVB-T/T2 tuner

If you live in a country where DVB-T/T2 is supported (or various combination or DVB-T/T2/C, ATSC, DVB-S2 if you purchase an additional tuner board), and plan to use the Linux NAS features, U5PVR Deluxe looks certainly like a good candidate. However, if you mainly want to watch video streams from Netflix, Hulu, and other premium services, and use Kodi, there should be other devices that better fit your needs.

Price: $229.99 including shipping on Aliexpress.

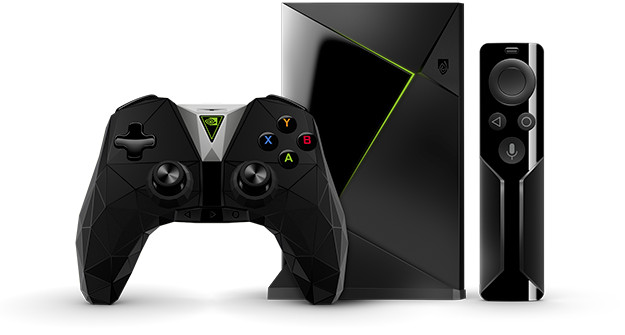

Nvidia Shield Android TV (2017 Edition)

NVIDIA has launched a smaller version of their popular Shield Android TV earlier this year, and while I have not reviewed the device myself, it’s one of the most popular Android TV box on the market.

Criteria:

  • Operating System – Official Android TV 7.0 (Upgrade to Oreo likely)
  • History of regular firmware updates – Nvidia has been providing upgrades since 2015 for the original model (around 6 times a year)
  • Support forums – Active SHIELD Android TV board on Nvidia Geforce forum.
  • 4K Support – HDMI 2.0a up to 4K @ 60 Hz is supported with support for 10-bit H.265, VP9 and H.264 video playback @ 60 fps.
  • 5.1 or 7.1 HD audio pass-through support – Dolby TrueHD and DTS HD audio pass-through supported
  • Automatic frame rate switching – OK for Kodi and Plex at least.
  • DRM support for HD and UHD video streaming – Netflix HD & 4K officially supported, as well as Amazon Video
  • Thermal design and storage performanceGood storage performance, and I only read reports of isolated issues with overheating (i.e. not a design issue).
  • Extra Features – N/A

NVIDIA TV box also features the most power GPU of any TV boxes, so it’s also an excellent 3D gaming console. Availability is still an issue, although the company has launched the model in some more countries this year. This also means the device can be pretty expensive once you factor shipping, custom duties, and other fees (e.g. forward shipping) if you purchase it from a country where the device has not officially launched. Just like other devices running Android TV OS, not all apps will be available from the Play Store.

Price: Around $200 on Amazon US.

Other Alternatives

The three devices are not the only ones to consider, and other alternatives could meet some people requirements.

  • Above $100
  • Below $100
    • Xiaomi Mi Box US – Good official Android TV option if you want to stream video from services like Vudu+, Hulu, YouTube, Netflix… and don’t care about playing games, and very high performance for other tasks
    • Mecool M8S PRO+ – Sub $40 box based on Amlogic S905X SoC with 2GB RAM/16GB storage that supports unofficial Android TV 7.1 firmware, Netflix up to 1080p. [Please note warning about eMMC flash version in the linked post]
    • Various low cost Amlogic S905/S905X TV boxes compatible with LibreELEC (Kodi Linux distribution). Note that stock Android firmware on those boxes may not be very good, so better only consider them to run LibreELEC supported by the community

I hope this guide will help some to decide on which model to buy. Feel free to comment if you think another model should be part of the top 3, or the list of alternatives.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

18
Leave a Reply

avatar
17 Comment threads
1 Thread replies
11 Followers

Most reacted comment
Hottest comment thread
15 Comment authors
Angela CasonmeckidjjprojectEddyLabjqpabc123 Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Mat
Guest
Mat

Great, I was looking forward for this article. Thanks

jqpabc123
Guest
jqpabc123

From personal experience, the best Android TV box is a Wintel PC.

Comparable size, power specs and cost.

Much better system level support for add-on hardware, OS updates and even OS replacement.

Most Androids apps have a Windows equivalent (Kodi for example) but if you do find an Android only app that you just gotta have, there are a number of very competent Android emulators. One of my favorites is Nox Player.

Personal opinion: Android as an OS is designed to promote hardware sales. If you like disposable hardware, Android is definitely the way to go.

SpongeBobX
Guest
SpongeBobX

I can get an Android TV box that will hardware decode UHD Blu-ray remuxes for $40. That’s not happening with a “Wintel” box

Ron
Guest
Ron

Are there any news reports about an AmLogic-based Android box which would come pre-installed with Oreo?

And some news about AmLogic’s upcoming SoCs – a new roadmap?

Gouwa
Guest

@Ron
Android 8 Oreo for Khadas VIMs(Amlogic) is on the way, source code available(uploading) here:

https://github.com/orgs/khadas/dashboard

Karl Johnson
Guest
Karl Johnson

My vote is Nvidia shield. 2 years old now going strong. Still getting updates. I got the home automation dongle but have not turned it on yet. I use gamestream from PC and Plex server and all the video apps. Only down side we have is no native app for DirecTV Now but that is not Nvidia fault. Have to cast from phone or tablet.

Pfsense hardware Barebones
Guest
Pfsense hardware Barebones

@jqpabc123
show me one single x86 (win10 vmware /android emulator etc, preferably with generic hardware decode oe at least using a current ffmpeg x86 static build https://ffmpeg.zeranoe.com/builds/) image that can properly run “Archos Video” with lan shares etc for the video storage…

Member

@jqpabc123
Spot on

rubin kim
Guest
rubin kim

You are doing a great disservice to your readers by failing to differentiate between the Xiaomi MiBox MDZ-16-AB which is the only box from Xiaomi that carries official AndroidTV and its requisite DRM facilities and licenses.

Xiaomi makes a plethora of boxes, all of which are specifically designed for their home market in PRC with the sole exception of MDZ-16-AB.

Only the MDZ-16-AB can be used to its fullest extent in all international markets and owners can be assured of Netflix support in HD and UHD, Chromecast function and allied DRM priveleges, as well as a full gamut of language options.

It is exclusively sold in USA by Walmart but there are a number of legitimate sources on Aliexpress and other places who can supply the genuine article to buyers in other countries.

jqpabc123
Guest
jqpabc123

@SpongeBobX
Correct!

it’s all about expectation. If you expect only one function, go with the cheapest box that provides it.

But if you expect more longevity and versatility, I would recommend a different approach.

EddyLab
Guest

CNX’s What’s the Best Android TV Box (2017/2018 Edition)?
We are very pleased that U5PVR Deluxe has been selected. 🙂

  Update information about U5PVR Deluxe.

1. ATV 7.0 official release. (December 2, 2017)
2. ATM 7.0 supports DRM L1 and supports Netflix 4K playback.
3. Android assistant voice command support is available. (BT remote control for U5PVR is required)
4. Supports 4K UHD Blu-ray navigation.

We plan to support the same Android TV OS as U5PVR in U5 SBC (Single Board Computer) next year (2018) in small size board (GPIO 40pin support).

djjproject
Guest

@cnxsoft
Hello CNX! I am using U5PVR Deluxe too!
I also had trouble finding the firmware. I’ll give you a link.

I upgraded Android7 last month (upgrade 17.12.22 version).

mecki
Guest
mecki

@cnxsoft
I had the same problems. The most important thing to know is, that you have to **manually** do the major upgrade from ATV5 to ATV7 following the instructions posted in their blog.

Angela Cason
Guest
Angela Cason

Thanks
